3. Car Start Harness (C),
10/C Active Output (20 AWG -) (BLUE/BLACK)

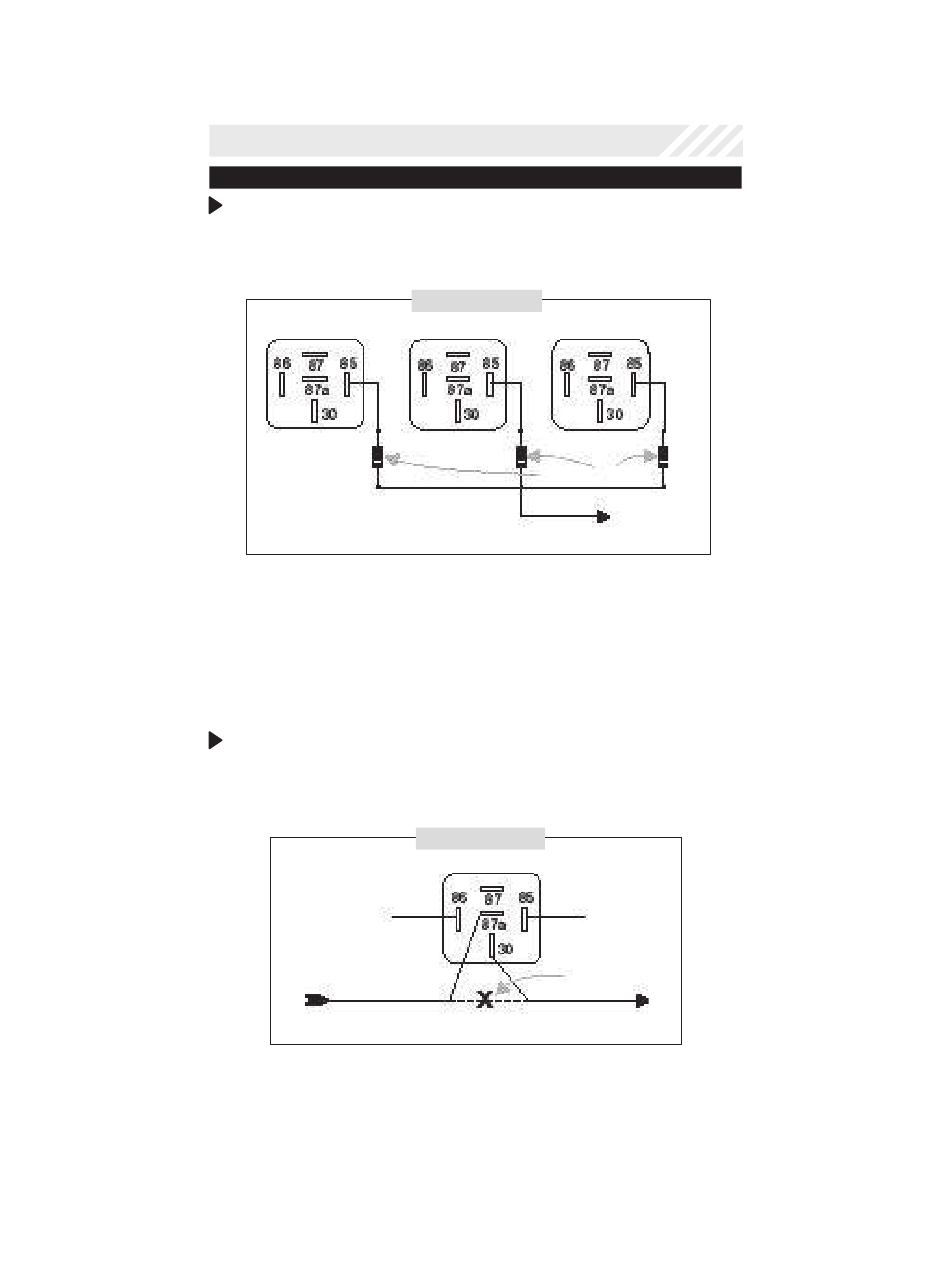

Connect the 10/C wire to add-on relays as described in Diagram
14, or to an optional component requiring a ground signal when
the vehicle is running via remote start.
Diode stripe should
face toward module
Note: If you are connecting the 10/C wire to more than one relay,
install 1-amp blocking diodes (1N4001 or equivalent) as shown in
the Diagram 14.
Interrupting a Sensor or Component while the Vehicle is running
via Remote Start
Use an SPDT relay (not supplied) and connect as shown in
Diagram 15.
Constant 12V+
From Sensor
14
630.p65
cont'd
Diagram 14
Install Diodes Here
Diagram 15
Cut Here
Sensor Trigger Wire
14
10/C WIRE
10/C WIRE
To Alarm
