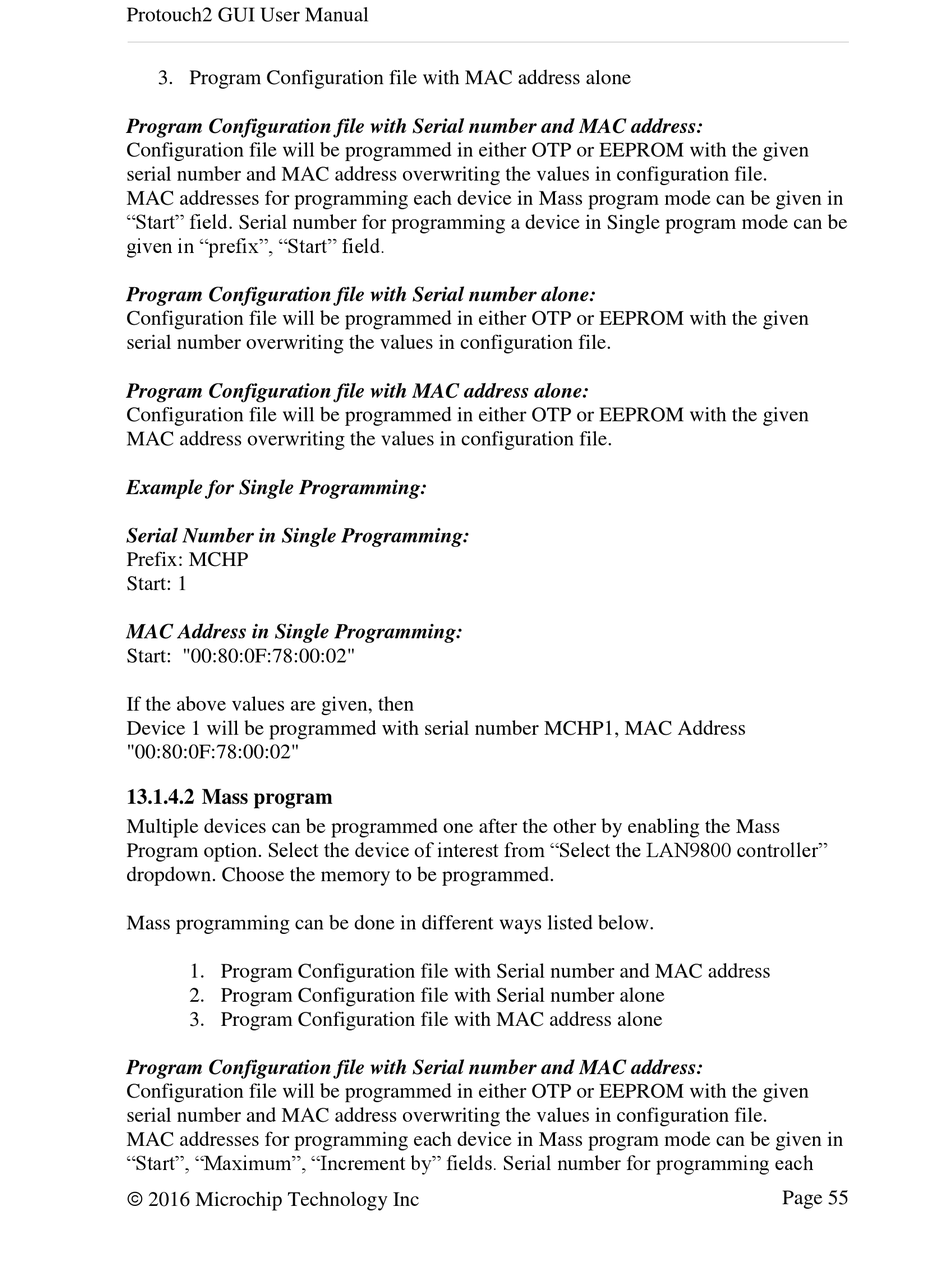

Protouch2 GUI User Manual
3. Program Configuration file with MAC address alone
Program Configuration file with Serial number and MAC address:
Configuration file will be programmed in either OTP or EEPROM with the given
serial number and MAC address overwriting the values in configuration file.
MAC addresses for programming each device in Mass program mode can be given in
"Start" field. Serial number for programming a device in Single program mode can be
given in "prefix", "Start" field.
Program Configuration file with Serial number alone:
Configuration file will be programmed in either OTP or EEPROM with the given
serial number overwriting the values in configuration file.
Program Configuration file with MAC address alone:
Configuration file will be programmed in either OTP or EEPROM with the given
MAC address overwriting the values in configuration file.
Example for Single Programming:
Serial Number in Single Programming:
Prefix: MCHP
Start: 1
MAC Address in Single Programming:
Start: "00:80:0F:78:00:02"
If the above values are given, then
Device 1 will be programmed with serial number MCHP1, MAC Address
"00:80:0F:78:00:02"
13.1.4.2 Mass program
Multiple devices can be programmed one after the other by enabling the Mass
Program option. Select the device of interest from "Select the LAN9800 controller"
dropdown. Choose the memory to be programmed.
Mass programming can be done in different ways listed below.
1. Program Configuration file with Serial number and MAC address
2. Program Configuration file with Serial number alone
3. Program Configuration file with MAC address alone
Program Configuration file with Serial number and MAC address:
Configuration file will be programmed in either OTP or EEPROM with the given
serial number and MAC address overwriting the values in configuration file.
MAC addresses for programming each device in Mass program mode can be given in
"Start", "Maximum", "Increment by" fields. Serial number for programming each
