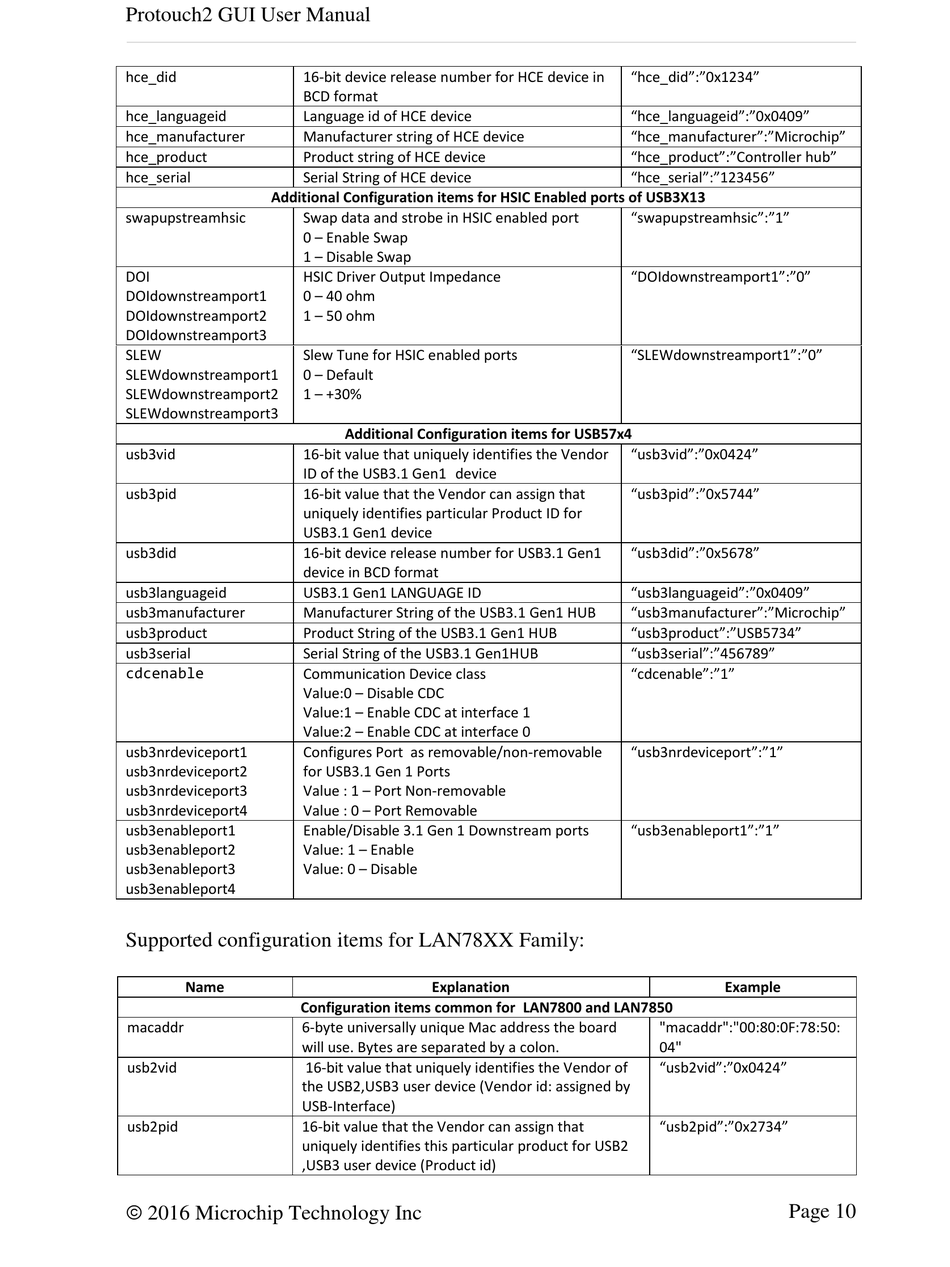

Microchip Technology Protouch2 User Manual page 10

Protouch2 GUI User Manual
hce_did 16-bit device release number for HCE device in
BCD format
hce_languageid Language id of HCE device
hce_manufacturer Manufacturer string of HCE device
hce_product Product string of HCE device
hce_serial Serial String of HCE device
Additional Configuration items for HSIC Enabled ports of USB3X13
swapupstreamhsic Swap data and strobe in HSIC enabled port
0 – Enable Swap
1 – Disable Swap
DOI HSIC Driver Output Impedance
DOIdownstreamport1 0 – 40 ohm
DOIdownstreamport2 1 – 50 ohm
DOIdownstreamport3
SLEW Slew Tune for HSIC enabled ports
SLEWdownstreamport1 0 – Default
SLEWdownstreamport2 1 – +30%
SLEWdownstreamport3
usb3vid 16-bit value that uniquely identifies the Vendor
ID of the USB3.1 Gen1 device
usb3pid 16-bit value that the Vendor can assign that
uniquely identifies particular Product ID for
USB3.1 Gen1 device
usb3did 16-bit device release number for USB3.1 Gen1
device in BCD format
usb3languageid USB3.1 Gen1 LANGUAGE ID
usb3manufacturer Manufacturer String of the USB3.1 Gen1 HUB
usb3product Product String of the USB3.1 Gen1 HUB
usb3serial Serial String of the USB3.1 Gen1HUB
cdcenable Communication Device class
Value:0 – Disable CDC
Value:1 – Enable CDC at interface 1
Value:2 – Enable CDC at interface 0
usb3nrdeviceport1 Configures Port as removable/non-removable
usb3nrdeviceport2 for USB3.1 Gen 1 Ports
usb3nrdeviceport3 Value : 1 – Port Non-removable
usb3nrdeviceport4 Value : 0 – Port Removable
usb3enableport1 Enable/Disable 3.1 Gen 1 Downstream ports
usb3enableport2 Value: 1 – Enable
usb3enableport3 Value: 0 – Disable
usb3enableport4
Supported configuration items for LAN78XX Family:
Name
Configuration items common for LAN7800 and LAN7850
macaddr 6-byte universally unique Mac address the board
will use. Bytes are separated by a colon.
usb2vid
the USB2,USB3 user device (Vendor id: assigned by
USB-Interface)
usb2pid 16-bit value that the Vendor can assign that
uniquely identifies this particular product for USB2
,USB3 user device (Product id)
 2016 Microchip Technology Inc
Additional Configuration items for USB57x4
Explanation
16-bit value that uniquely identifies the Vendor of
"hce_did":"0x1234"
"hce_languageid":"0x0409"
"hce_manufacturer":"Microchip"
"hce_product":"Controller hub"
"hce_serial":"123456"
"swapupstreamhsic":"1"
"DOIdownstreamport1":"0"
"SLEWdownstreamport1":"0"
"usb3vid":"0x0424"
"usb3pid":"0x5744"
"usb3did":"0x5678"
"usb3languageid":"0x0409"
"usb3manufacturer":"Microchip"
"usb3product":"USB5734"
"usb3serial":"456789"
"cdcenable":"1"
"usb3nrdeviceport":"1"
"usb3enableport1":"1"
Example
"macaddr":"00:80:0F:78:50:
04"
"usb2vid":"0x0424"
"usb2pid":"0x2734"
