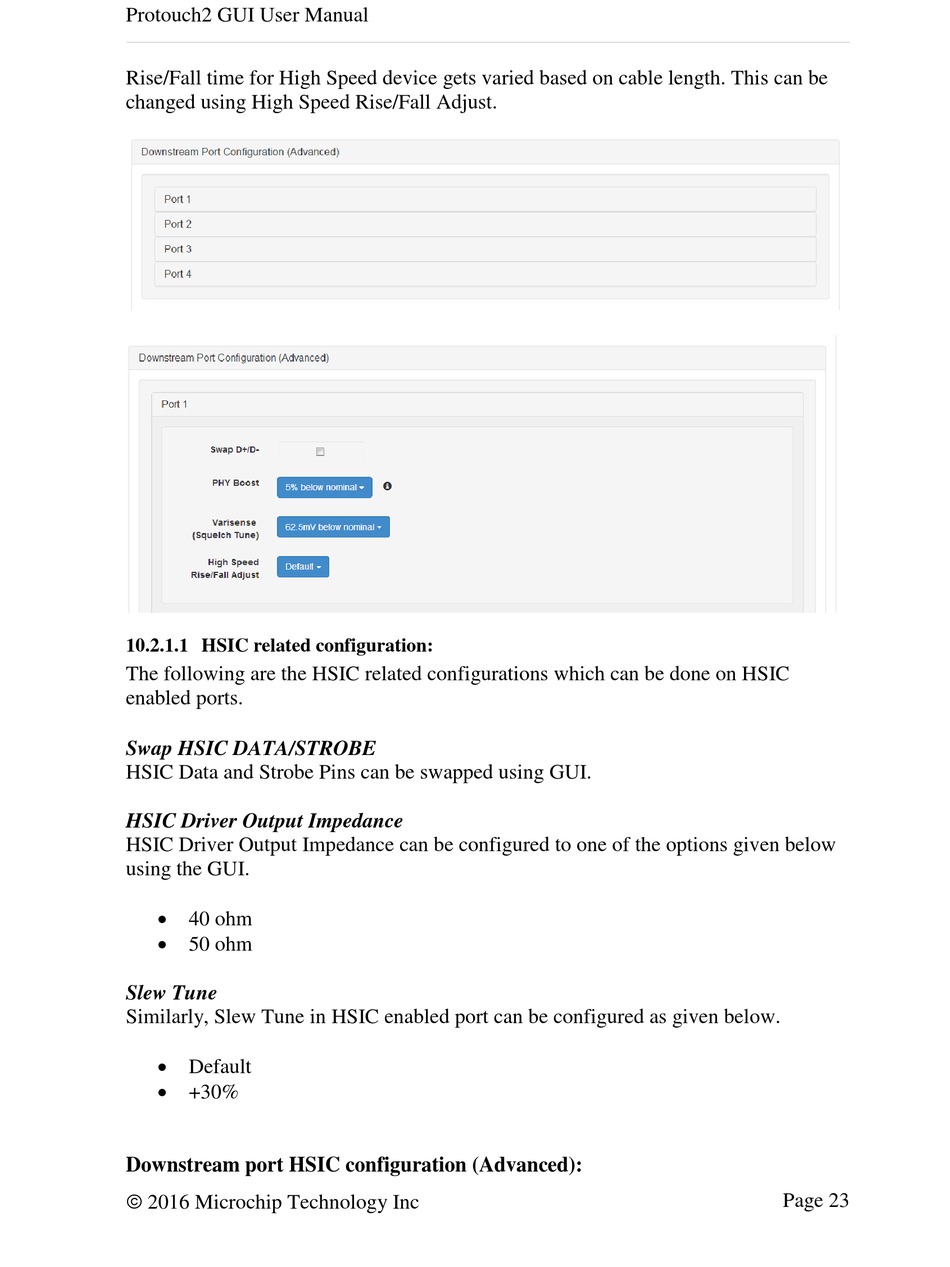

Protouch2 GUI User Manual
Rise/Fall time for High Speed device gets varied based on cable length. This can be
changed using High Speed Rise/Fall Adjust.
10.2.1.1 HSIC related configuration:
The following are the HSIC related configurations which can be done on HSIC
enabled ports.
Swap HSIC DATA/STROBE
HSIC Data and Strobe Pins can be swapped using GUI.
HSIC Driver Output Impedance
HSIC Driver Output Impedance can be configured to one of the options given below
using the GUI.
 40 ohm
 50 ohm
Slew Tune
Similarly, Slew Tune in HSIC enabled port can be configured as given below.
 Default
 +30%
Downstream port HSIC configuration (Advanced):
