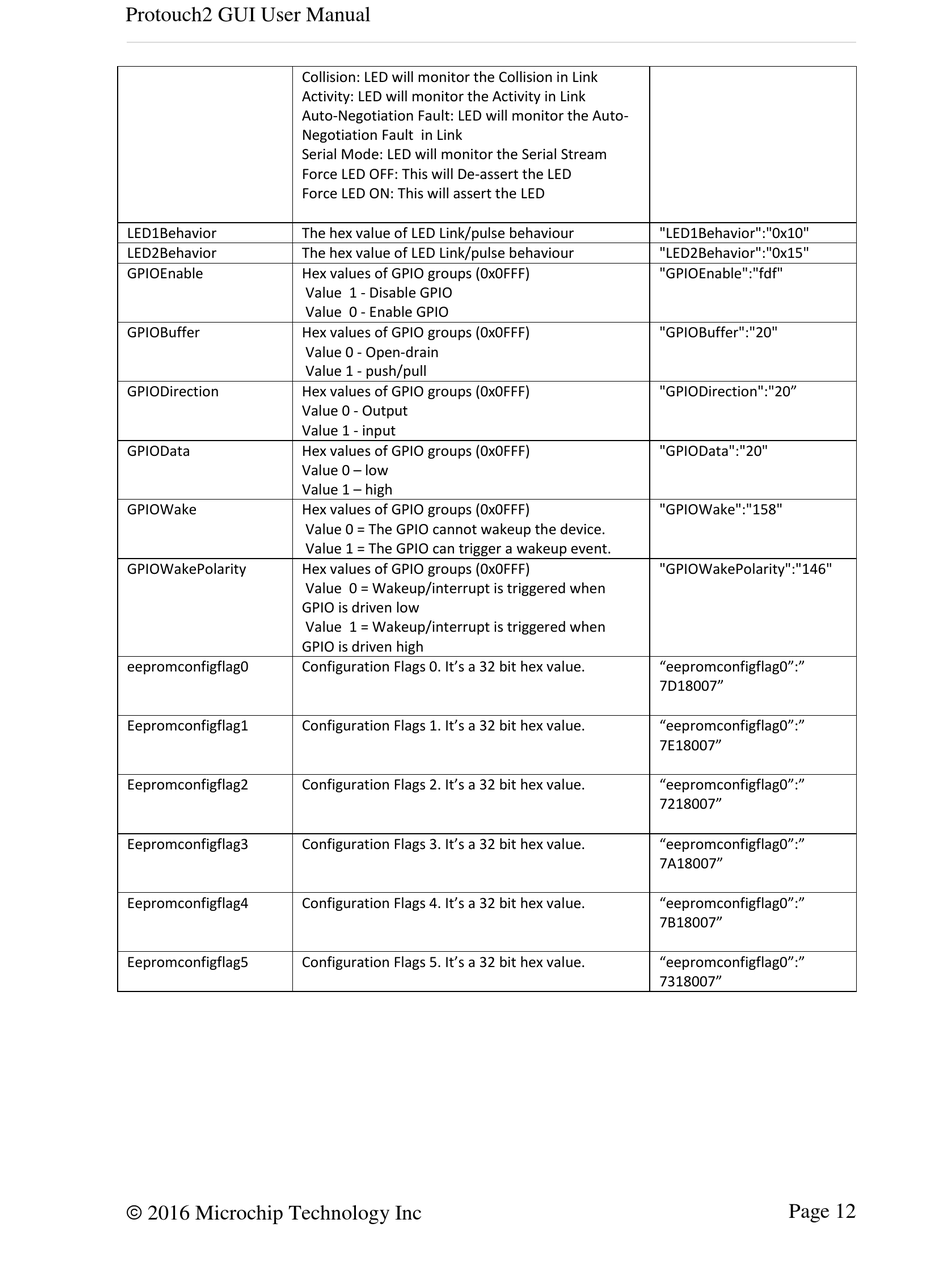

Protouch2 GUI User Manual
Collision: LED will monitor the Collision in Link
Activity: LED will monitor the Activity in Link
Auto-Negotiation Fault: LED will monitor the Auto-
Negotiation Fault in Link
Serial Mode: LED will monitor the Serial Stream
Force LED OFF: This will De-assert the LED
Force LED ON: This will assert the LED
LED1Behavior The hex value of LED Link/pulse behaviour
LED2Behavior The hex value of LED Link/pulse behaviour
GPIOEnable Hex values of GPIO groups (0x0FFF)
GPIOBuffer Hex values of GPIO groups (0x0FFF)
GPIODirection Hex values of GPIO groups (0x0FFF)
Value 0 - Output
Value 1 - input
GPIOData Hex values of GPIO groups (0x0FFF)
Value 0 – low
Value 1 – high
GPIOWake Hex values of GPIO groups (0x0FFF)
GPIOWakePolarity Hex values of GPIO groups (0x0FFF)
GPIO is driven low
GPIO is driven high
eepromconfigflag0 Configuration Flags 0. It's a 32 bit hex value.
Eepromconfigflag1 Configuration Flags 1. It's a 32 bit hex value.
Eepromconfigflag2 Configuration Flags 2. It's a 32 bit hex value.
Eepromconfigflag3 Configuration Flags 3. It's a 32 bit hex value.
Eepromconfigflag4 Configuration Flags 4. It's a 32 bit hex value.
Eepromconfigflag5 Configuration Flags 5. It's a 32 bit hex value.
 2016 Microchip Technology Inc
Value 1 - Disable GPIO
Value 0 - Enable GPIO
Value 0 - Open-drain
Value 1 - push/pull
Value 0 = The GPIO cannot wakeup the device.
Value 1 = The GPIO can trigger a wakeup event.
Value 0 = Wakeup/interrupt is triggered when
Value 1 = Wakeup/interrupt is triggered when
"LED1Behavior":"0x10"
"LED2Behavior":"0x15"
"GPIOEnable":"fdf"
"GPIOBuffer":"20"
"GPIODirection":"20"
"GPIOData":"20"
"GPIOWake":"158"
"GPIOWakePolarity":"146"
"eepromconfigflag0":"
7D18007"
"eepromconfigflag0":"
7E18007"
"eepromconfigflag0":"
7218007"
"eepromconfigflag0":"
7A18007"
"eepromconfigflag0":"
7B18007"
"eepromconfigflag0":"
7318007"
