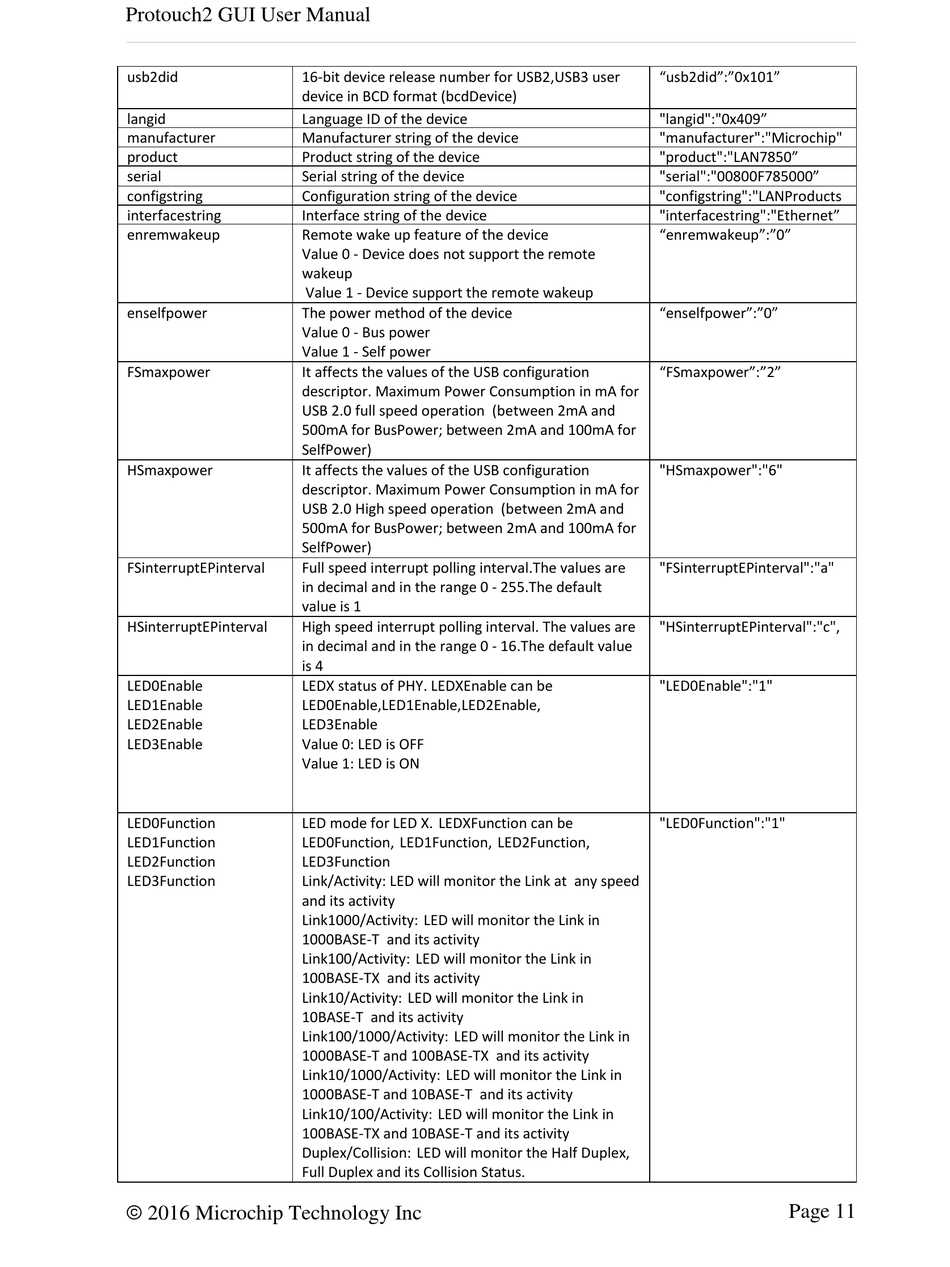

Microchip Technology Protouch2 User Manual page 11

Protouch2 GUI User Manual
usb2did 16-bit device release number for USB2,USB3 user
device in BCD format (bcdDevice)
langid Language ID of the device
manufacturer Manufacturer string of the device
product Product string of the device
serial Serial string of the device
configstring Configuration string of the device
interfacestring Interface string of the device
enremwakeup Remote wake up feature of the device
Value 0 - Device does not support the remote
wakeup
enselfpower The power method of the device
Value 0 - Bus power
Value 1 - Self power
FSmaxpower It affects the values of the USB configuration
descriptor. Maximum Power Consumption in mA for
USB 2.0 full speed operation (between 2mA and
500mA for BusPower; between 2mA and 100mA for
SelfPower)
HSmaxpower It affects the values of the USB configuration
descriptor. Maximum Power Consumption in mA for
USB 2.0 High speed operation (between 2mA and
500mA for BusPower; between 2mA and 100mA for
SelfPower)
FSinterruptEPinterval Full speed interrupt polling interval.The values are
in decimal and in the range 0 - 255.The default
value is 1
HSinterruptEPinterval High speed interrupt polling interval. The values are
in decimal and in the range 0 - 16.The default value
is 4
LED0Enable LEDX status of PHY. LEDXEnable can be
LED1Enable LED0Enable,LED1Enable,LED2Enable,
LED2Enable LED3Enable
LED3Enable Value 0: LED is OFF
Value 1: LED is ON
LED0Function LED mode for LED X. LEDXFunction can be
LED1Function LED0Function, LED1Function, LED2Function,
LED2Function LED3Function
LED3Function Link/Activity: LED will monitor the Link at any speed
and its activity
Link1000/Activity: LED will monitor the Link in
1000BASE-T and its activity
Link100/Activity: LED will monitor the Link in
100BASE-TX and its activity
Link10/Activity: LED will monitor the Link in
10BASE-T and its activity
Link100/1000/Activity: LED will monitor the Link in
1000BASE-T and 100BASE-TX and its activity
Link10/1000/Activity: LED will monitor the Link in
1000BASE-T and 10BASE-T and its activity
Link10/100/Activity: LED will monitor the Link in
100BASE-TX and 10BASE-T and its activity
Duplex/Collision: LED will monitor the Half Duplex,
Full Duplex and its Collision Status.
 2016 Microchip Technology Inc
Value 1 - Device support the remote wakeup
"usb2did":"0x101"
"langid":"0x409"
"manufacturer":"Microchip"
"product":"LAN7850"
"serial":"00800F785000"
"configstring":"LANProducts
"interfacestring":"Ethernet" "
"enremwakeup":"0"
"enselfpower":"0"
"FSmaxpower":"2"
"HSmaxpower":"6"
"FSinterruptEPinterval":"a"
"HSinterruptEPinterval":"c",
"LED0Enable":"1"
"LED0Function":"1"
