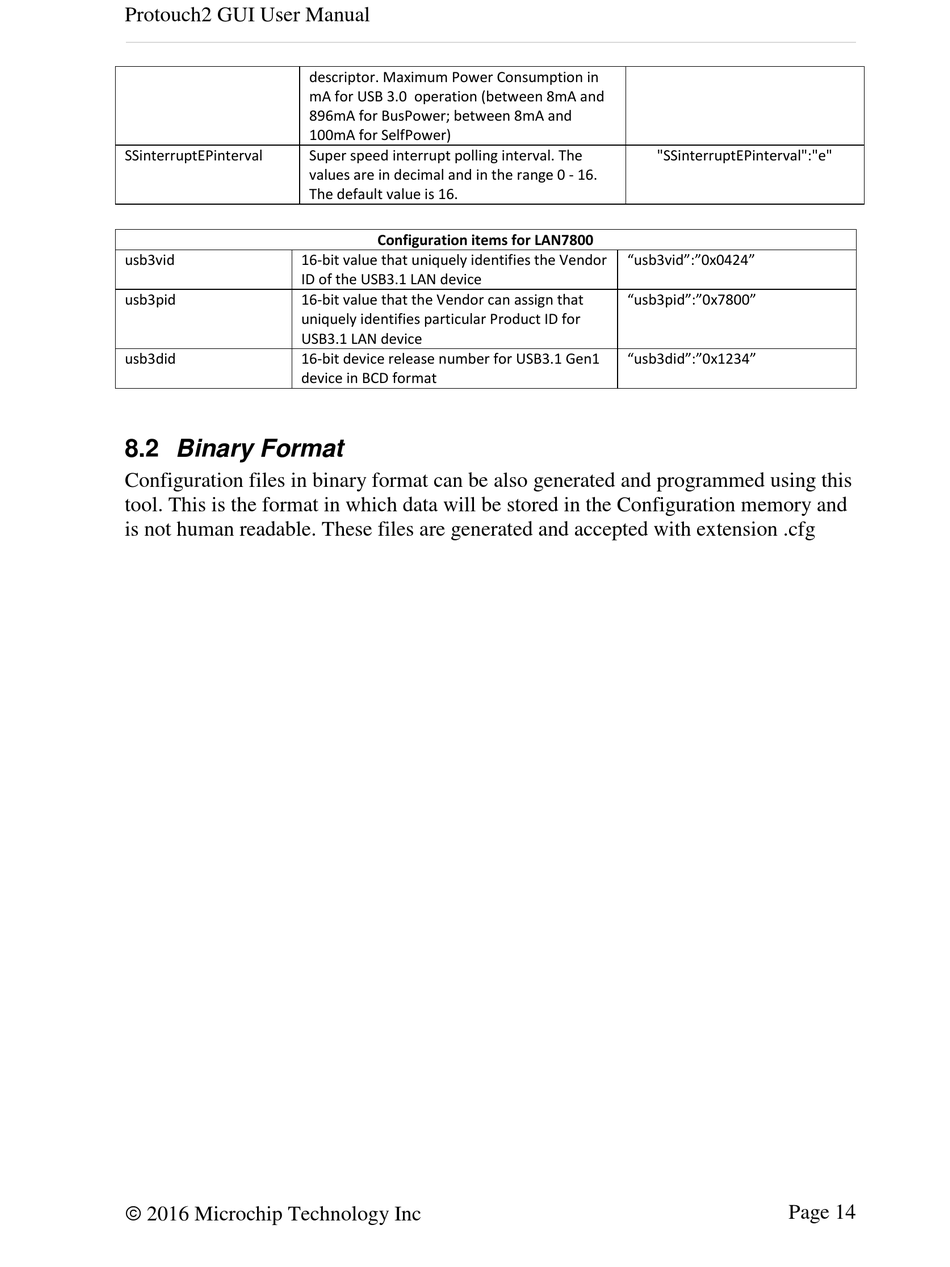

Protouch2 GUI User Manual
SSinterruptEPinterval
usb3vid
16-bit value that uniquely identifies the Vendor
ID of the USB3.1 LAN device
usb3pid
16-bit value that the Vendor can assign that
uniquely identifies particular Product ID for
USB3.1 LAN device
usb3did
16-bit device release number for USB3.1 Gen1
device in BCD format
8.2 Binary Format
Configuration files in binary format can be also generated and programmed using this
tool. This is the format in which data will be stored in the Configuration memory and
is not human readable. These files are generated and accepted with extension .cfg
2016 Microchip Technology Inc
descriptor. Maximum Power Consumption in
mA for USB 3.0 operation (between 8mA and
896mA for BusPower; between 8mA and
100mA for SelfPower)
Super speed interrupt polling interval. The
values are in decimal and in the range 0 - 16.
The default value is 16.
Configuration items for LAN7800
"SSinterruptEPinterval":"e"
"usb3vid":"0x0424"
"usb3pid":"0x7800"
"usb3did":"0x1234"
Page 14
