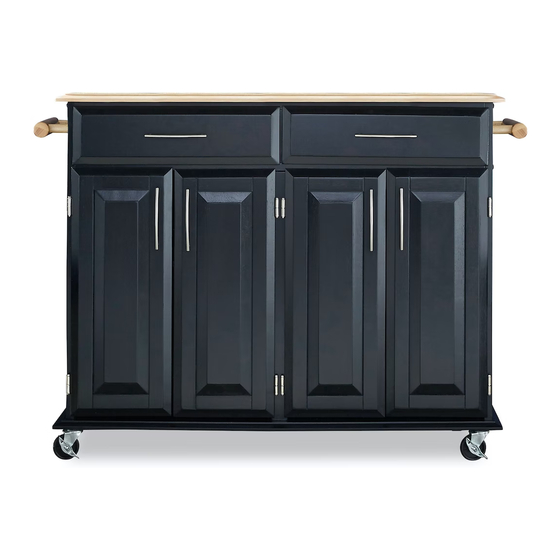

Kitchen cart

Advertisement

Quick Links

IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

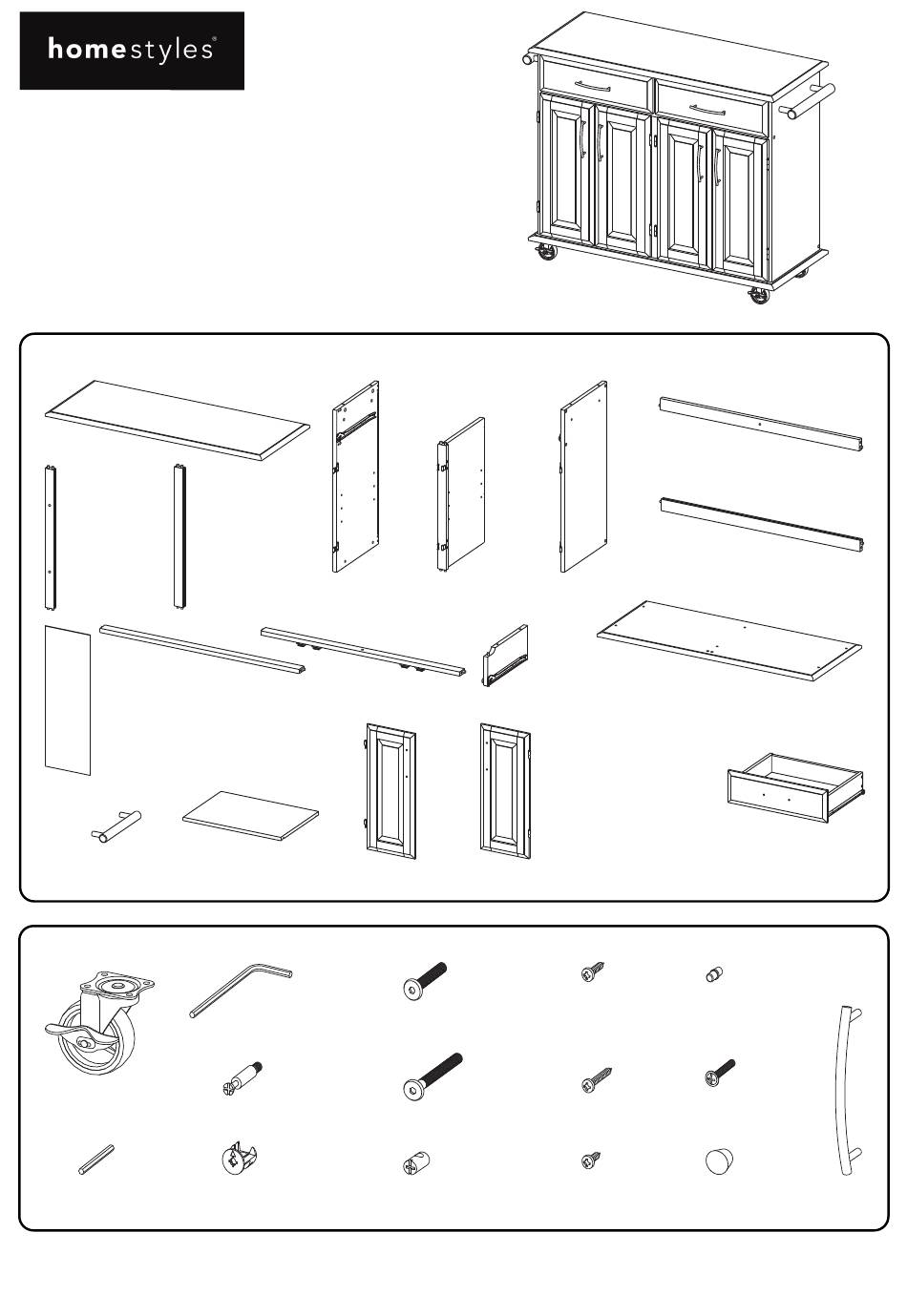

Part List
A.
Top
1 pc.
F.
Back Upright
1 pc.
H.
Back Panel
4 pcs.
M.
Side Bar
2 pcs.
Hardware List
Caster
2 Locking
2 Non-Locking
4 pcs.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
home
4528-95
Kitchen Cart
G.
Back Upright
2 pcs.
B.
Side Panel
1 pc.
I.
J.
Front Rail
Front Rail
1 pc.
1 pc.
N.
O.
Shelf
Door
2 pcs.
2 pcs.
M6x35
Hex Wrench
Head Cap Bolt (short)
1 pc.
12 pcs. (+1 extra)
M6x50
Cam Lock Screw
Head Cap Bolt (long)
6 pcs. (+1 extra)
7 pcs. (+1 extra)
Cam Lock
Cross Dowel
7 pcs. (+1 extra)
6 pcs. (+2 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
C.
D.
Middle Panel
Side Panel
1 pc.
1 pc.
K.
Divider
1 pc.
P.
Door
2 pcs.
M4x16
Wood Screw
for Caster
16 pcs. (+1 extra)
M3.5x25
Wood Screw (long)
16 pcs. (+1 extra)
M3.5x16
Wood Screw (short)
12 pcs. (+1 extra)
888-680-7460
E1.
Back Rail
1 pc.
E2.
Back Rail
1 pc.
L.
Base
1 pc.
Q.
Drawer
2 pcs.
Refer to later page(s) of these
instructions for drawer assembly.
Adjustable Pin
8 pcs. (+1 extra)
M4x25
Machine Screw
12 pcs.
Wood Plug
Handle
9 pcs. (+2 extra)
6 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4528-95 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Homestyles 4528-95

  • Page 1 4528-95 Kitchen Cart IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
  • Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
  • Page 3 Assembly Instructions 3/7 STEP 3 Attach Middle Panel (C) to unit. Attach Side Panel (D) to unit with Head Cap Bolts (short). Head Cap Bolt (short) Arrow label at front Cross Dowel Head Cap Bolt (long) STEP 4 Attach Base (L) to unit with Cross Dowels and Head Cap Bolts (long).
  • Page 4 Assembly Instructions 4/7 STEP 5 Wood Screw for Caster Non-Locking Caster Locking Caster Attach Casters to unit with Wood Screws for Caster into pre-drilled holes, with Locking Casters at front. (See Figure 3) Note: Arrow label indicates front of unit. Arrow label at front STEP 6 Figure 3...
  • Page 5 Assembly Instructions 5/7 STEP 7 Attach Doors (O) and (P) by sliding door hinges into side panel hinges. (See Figure 5) Attach Handles to Doors (O) and (P) with Machine Screws. (See Figure 6) Machine Screw Handle Figure 5 Figure 6 Figure 7 Cam Lock Screw STEP 8...
  • Page 6 Assembly Instructions / 6 7 Drawer (Q) Wood Screw (long) Bottom STEP 9 Attach Drawer Front (Q1) and Drawer Back (Q2) to Drawer Side (Q3) with Wood Screws (long). Attach Drawer Side (Q4) to unit with Wood Screws (long). Roller at back Wood Screw (short) STEP 10 Slide Drawer Bottom (Q5) into groove.
  • Page 7 Assembly Instructions / 7 7 Cam Lock STEP 12 Attach Top (A) to unit with Cam Locks. (See Figure 8) Slide Drawers (Q) into position. Figure 8 Wood Plug STEP 13 Cover all holes with Wood Plugs. (See Figure 9) Figure 9...
  • Page 8 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
