IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

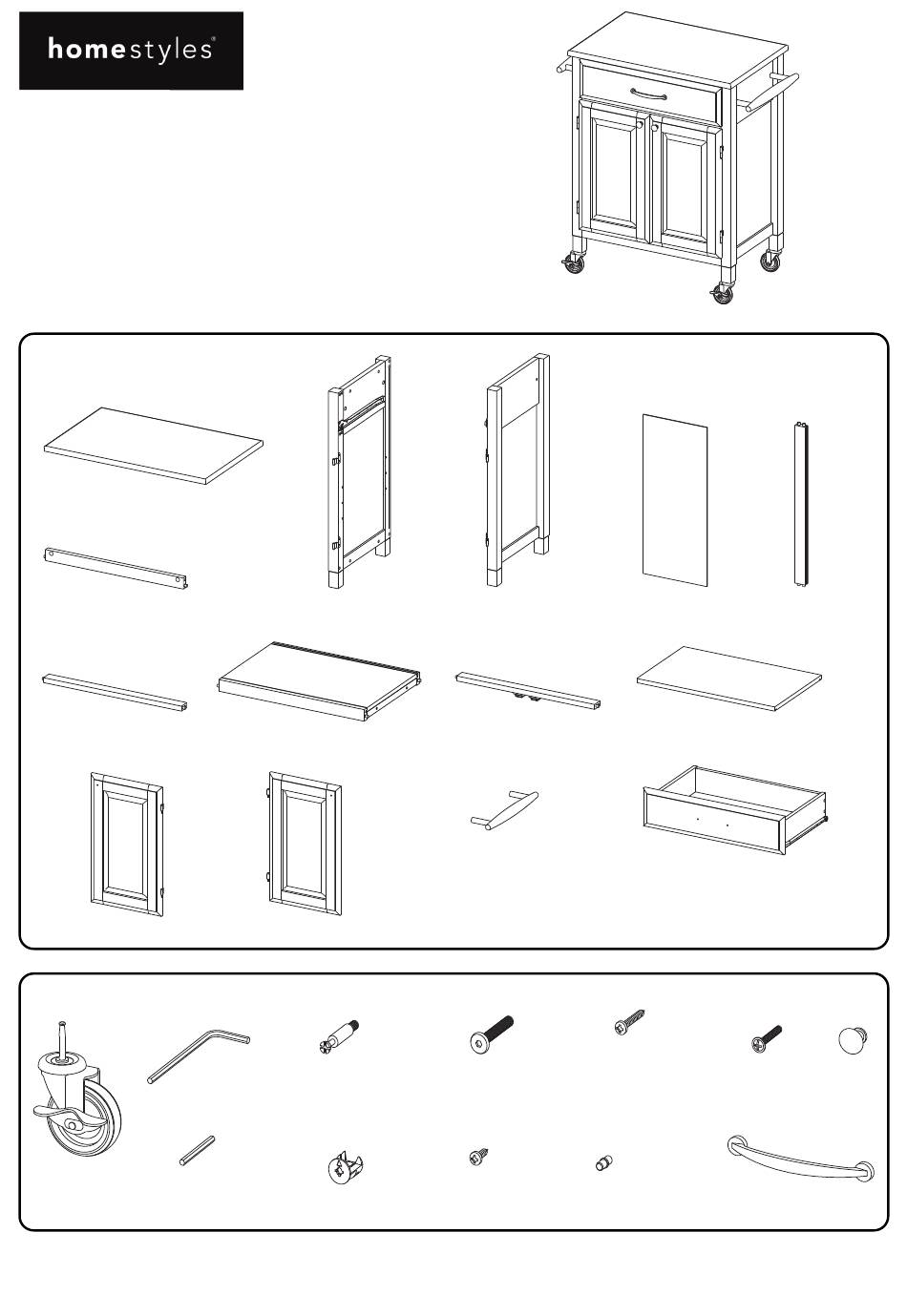

Part List
A.
Top
1 pc.
F.
Back Rail
1 pc.
G.
Front Rail
1 pc.
K.
Door
1 pc.
Hardware List
Caster
2 Locking
Small Hex Wrench
2 Non-Locking
4 pcs.
1 pc.
Tool(s) required for assembly: Phillips screwdriver
home
45
07-
95
Kitchen Cart
B.
Side Panel
1 pc.
I.
Base
1 pc.
L.
Door
1 pc.
Cam Lock Screw
Hex Wrench
6 pcs. (+1 extra)
1 pc.
Cam Lock
6
pcs. (+ extra)
2
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
C.
Side Panel
1 pc.
H.
Front Rail
1 pc.
N.
Towel Bar
2 pcs.
M6x30
M3.5x25
Head Cap Bolt
Wood Screw (long)
1 pcs. (+1 extra)
2
8 pcs. (+1 extra)
M3.5x13
Wood Screw (short)
Adjustable Pin
6 pcs. (+1 extra)
4
pcs. (+ extra)
888-680-7460
D.
E.
Back Panel
Back Upright
2 pcs.
1 pc.
J.
Shelf
1 pc.
M.
Drawer
1 pc.
Refer to later page(s) of these
instructions for drawer assembly.
M4x25
Machine Screw
4 pcs.
Handle
1
1
pc
.
Knob
2 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles Blanche 450795
Summary of Contents for Homestyles Blanche 450795
- Page 1 Kitchen Cart IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble. Part List 1 pc.
- Page 2 Assembly Instructions 2/6 IMPORTANT · Use a soft cloth between these parts and the floor. · Do not use power tools above 8 volts to assemble. · Do not tighten all the bolts until each part is properly assembled. · Keep Hex Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/6 STEP 3 Attach Back Panels (D), Back Upright (E) and Back Rail (F) to unit with Cam Lock. (See Figure 3) Cam Lock Figure 3 STEP 4 Attach Front Rails (G) and (H) to unit with Cam Locks. Cam Lock...
- Page 4 Assembly Instructions / 4 6 Cam Lock STEP 5 Attach Side Panel (C) to unit with Cam Locks and Head Cap Bolts. Head Cap Bolt STEP 6 Locking Caster Non-Locking Caster Turn unit upside down. Attach Casters to bottom of unit, with Locking Casters at front.
- Page 5 Assembly Instructions / 5 6 Drawer ( ) Wood Screw (long) Bottom STEP 7 Attach Drawer Front ( 1) and Drawer Back ( 2) to Drawer Side ( 3) with Wood Screws (long). Attach Drawer Side ( 4) to unit with Wood Screws (long).
- Page 6 Assembly Instructions / 6 6 Head Cap Bolt STEP 10 Turn unit to its upright position. Attach Towel Bars (N) to unit with Head Cap Bolts. Attach Top (A) to unit with Head Cap Bolts. Adjustable Pin Insert Adjustable Pins into side panels at desired level.
- Page 7 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
