IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
U.
Base
1 pc.
H.
Back Rail
1 pc.
I.
Back Rail
1 pc.
W.
Front Rail
1 pc.
J.
K.
Front Rail
Arm
1 pc.
2 pcs.
Hardware List
Hex Wrench
1 pc.
Caster
2 Locking
Small
2 Non-Locking
Hex Wrench
4 pcs.
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
4515-95

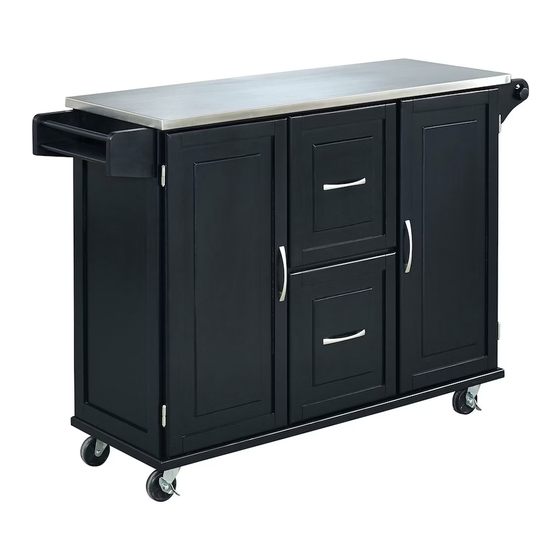

Kitchen Cart
B.
C.
Side Panel
Side Panel
1 pc.
1 pc.
M.
N.
Rack Side
Rack Side
1 pc.
1 pc.
L.
O.
Tower Bar
Rack Base
1 pc.
1 pc.
M3x16
M4x25
Wood Screw (short)
Wood Screw (long)
20 pcs. (+1 extra)
24 pcs. (+1 extra)
M3x16
Wood Screw
Magnet
for Magnet
2 pcs.
4 pcs. (+1 extra)
D.
E.
Middle Panel
Middle Panel
1 pc.
1 pc.
R.
S.
P.
Door
Door
Rack
1 pc.
1 pc.
1 pc.
M6x25
M6x38
Head Cap Bolt
Head Cap Bolt (long)
4 pcs. (+1 extra)
4 pcs. (+1 extra)
M6x12
Head Cap Bolt
for Caster
Adjustable Pin
16 pcs. (+1 extra)
16 pcs. (+1 extra)
888-680-7460, 877-831-0319
G.
F.
Back Upright
Back Panel
2 pcs.
3 pcs.
Q.
Shelf
4 pcs.
T.
Drawer
2 pcs.
Refer to later page(s) of these
instructions for drawer assembly.
M4x22
Machine Screw
8 pcs.
M3.5x25
Flat Head Screw
Handle
3 pcs. (+1 extra)
4 pcs.
Advertisement
Table of Contents
Related Manuals for Homestyles 4515-95
Summary of Contents for Homestyles 4515-95
- Page 1 4515-95 Kitchen Cart IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
- Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/7 STEP 4 Attach Back Rail (H) to Side Panel (C), then flip Locks. (See Figures 1 and 2) Attach Back Uprights (G) to unit. Slide Back Panels (F) into position. Attach Back Rail (I) to unit, then flip Lock. Attach Side Panel (B) to unit, then flip Locks.
- Page 4 Assembly Instructions 4/7 STEP 6 Head Cap Bolt for Caster Attach Casters to unit with Head Cap Bolts Non-Locking Caster for Caster into pre-drilled holes, with Locking Casters at front. (See Figure 4) Locking Caster Note: Arrow label indicates front of unit. Figure 4 Arrow label at front Wood Screw for Magnet...
- Page 5 Assembly Instructions 5/7 STEP 8 Turn unit over to its upright position. Attach Middle Panel (D) to unit, then flip Locks. Attach Front Rail (J) and Middle Panel (E) to unit, then flip Lock. Insert Wood Screws (short) into pre-drilled holes in unit, then tighten.
- Page 6 Assembly Instructions 6/7 Drawer (T) Bottom STEP 10 Attach Drawer Front (T1) and Drawer Back (T2) to Drawer Side (T3) with Wood Screws (long). Attach Drawer Side (T4) to unit with Wood Screws (long). Wood Screw (long) Roller at back STEP 11 Slide Drawer Bottom (T5) into groove.
- Page 7 Assembly Instructions 7/7 Lock Flat Head Screw STEP 13 Attach Top (A) to unit with Flat Head Screws, then flip Locks. Slide Drawers (T) into position.
- Page 8 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
