IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

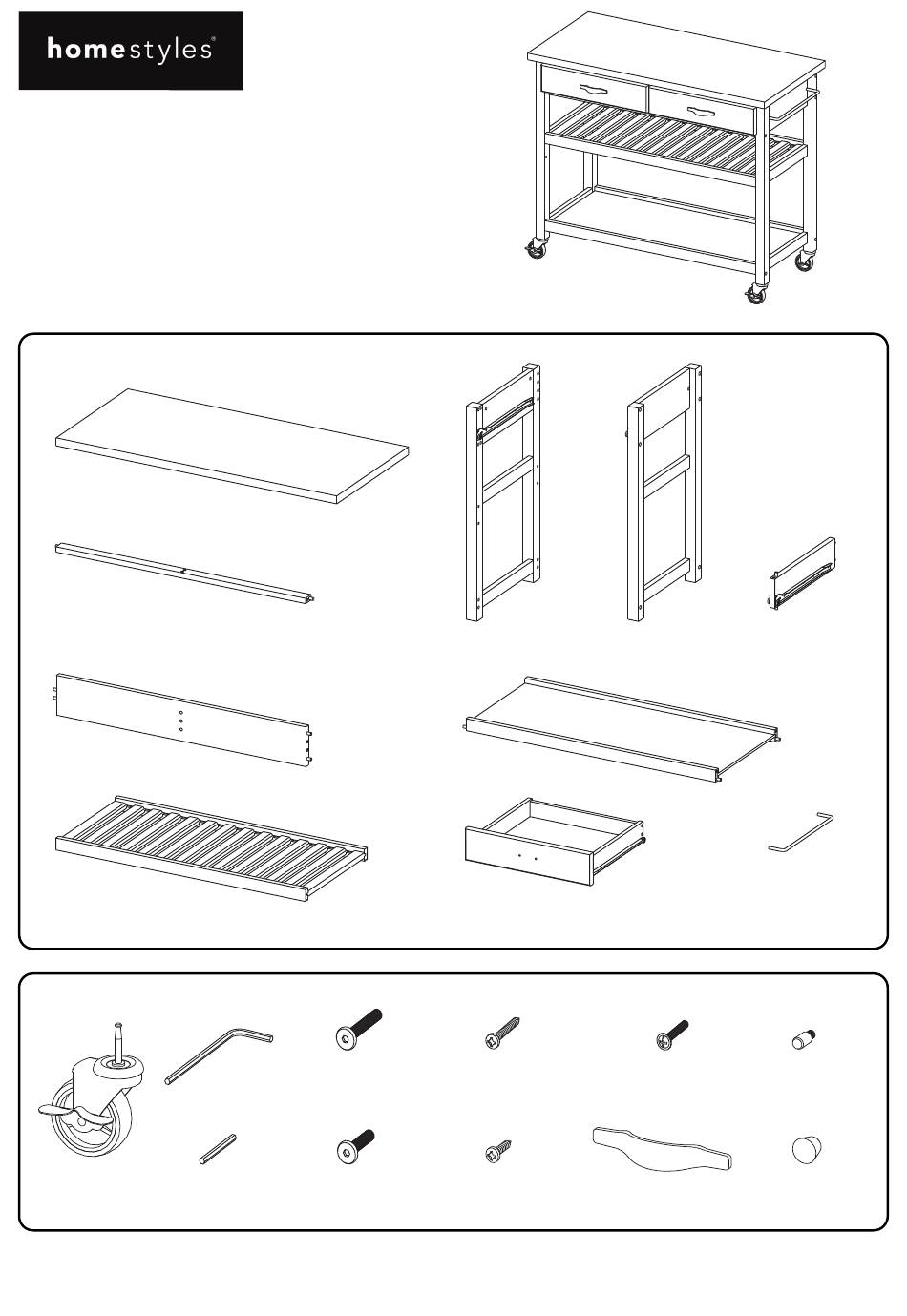

Part List
A.
Top
1 pc.
D.
Front Rail
2 pcs.
E.
Back Panel
1 pc.
H.
Shelf
1 pc.
Hardware List
Caster
2 Locking
2 Non-Locking
Small Hex Wrench
4 pcs.
1 pc.
Tool(s) required for assembly: Phillips screwdriver
home
5216-95

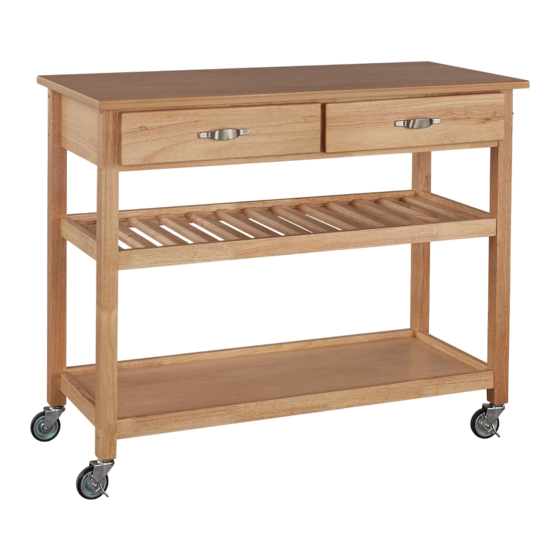

Kitchen Cart
M6x35
Hex Wrench
Head Cap Bolt
1 pc.
19 pcs. (+1 extra)
M6x25
Head Cap Bolt (short)
2 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
B.
C.
Side Frame
Side Frame
1 pc.
1 pc.
G.
Base
1 pc.
I.
Drawer
2 pcs.
Refer to later page(s) of these instructions for drawer assembly.
M3.5x25
Wood Screw (long)
16 pcs. (+1 extra)
M3.5x16
Wood Screw (short)
12 pcs. (+1 extra)
888-680-7460
F.
Divider
1 pc.
J.
Towel Bar
1 pc.
M4x25
Adjustable Pin
Machine Screw
4 pcs. (+1 extra)
4 pcs.
Wood Plug
Handle
13 pcs. (+1 extra)
2 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 5216-95
Summary of Contents for Homestyles 5216-95
- Page 1 5216-95 Kitchen Cart IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
- Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/6 Head Cap Bolt STEP 3 Attach Front Rail (D) to unit with Head Cap Bolts, tightening bolts only halfway. Attach Base (G) to unit with Head Cap Bolts, tightening bolts only halfway. Head Cap Bolt STEP 4 Attach Side Panel (C) to unit with Head Cap Bolts, tightening b ts only halfway.
- Page 4 Assembly Instructions 4/6 Non-Locking Caster STEP 5 Locking Caster Turn unit upside down. Attach Casters to bottom of unit with Locking Casters at front. (See Figure 2) Figure 2 Arrow label at front Head Cap Bolt Head Cap Bolt (short) STEP 6 Turn unit over to its upright position.
- Page 5 Assembly Instructions 5/6 Drawer (I) Wood Screw (long) Bottom STEP 7 Attach Drawer Front (I1) and Drawer Back (I2) to Drawer Side (I3) with Wood Screws (long). Attach Drawer Side (I4) to unit with Wood Screws (long). Roller at back Wood Screw (short) STEP 8 Slide Drawer Bottom (I5) into groove.
- Page 6 Assembly Instructions 6/6 STEP 10 Slide Drawers (I) into position. Insert Adjustable Pins into side frames at desired level, then tighten. (See Figure 3) Place Shelf (H) into position. Adjustable Pin Figure 3 Wood Plug STEP 11 Cover holes with Wood Plugs.
- Page 7 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
