Kramer VM-4DKT Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
VM-4DKT 1:4 4K HDMI/DGKAT Distribution Amplifier Transmitter
1 Power cord and adapter
IMPORTANT NOTICE!
We highly recommend using only Kramer UNIKAT cables with these products. If using 3
shield must be soldered to the connectors for the products to function properly. Do not use any jumpers, unshielded wall plates or mid-
span cable connections. These extenders are not compatible with HDBaseT technologies. Prior to signal extension, ensure that the
extension line cable is lying straight and not coiled.

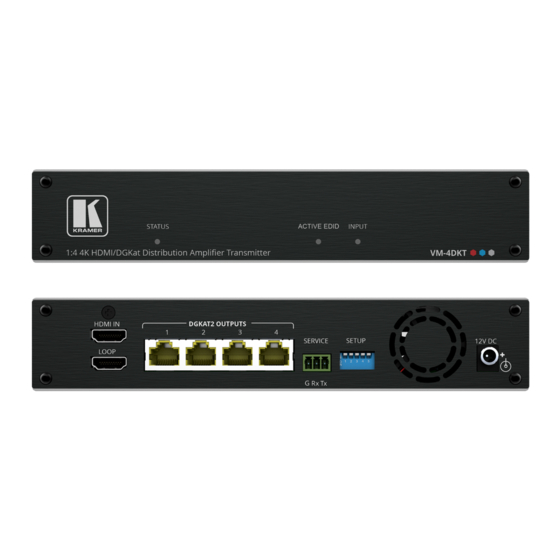

Step 2: Get to know your VM-4DKT

# Feature
1 STATUS LED
2 ACTIVE EDID LED
3 INPUT LED
4 HDMI IN Connector
5 LOOP Connector
6 DGKAT2 OUTPUTS Connectors (x4)
7 SERVICE 3-pin terminal block
8 SETUP DIP-switches
9 Fan Vent
10 12V DC Power Connector

Step 3: Mount VM-4DKT

Install VM-4DKT using one of the following methods:
•
Attach the rubber feet and place the unit on a flat
surface.
VM-4DKT Quick Start
VM-4DKT Quick Start Guide
This guide you install and use your
HELPS
Go to www.kramerav.com/downloads/VM-4DKT
upgrades are available.
Function
Red – Power up.
Green – Power is on.
The LED color indicates the active EDID type. When flashing, the state is in the
process of being activated.
Yellow – Default EDID.
Blue – Output-acquired EDID.
Green – Custom EDID.
On – Input signal detected.
Flashing – Source connected, but no signal detected.
Connect to an HDMI source.
Connect to a local HDMI display.
Connect to a DGKat-2.0 receiver (for example, PT-872xr) using twisted pair cable.
Connect to a serial controller.
Sets the device behavior (see
For heat ventilation.
Connect the 12V DC power adapter into the device and then connect it to the
mains.
VM-4DKT for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
rd
party shielded CAT-6A cables, both ends of the
Step 6: Operate VM-4DKT).
• Ensure that the environment (e.g., maximum ambient temperature & air flow) is
compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be used for avoiding
overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.
P/N: 2 9 0 0 - 3 0 1 5 4 4 QS
1 Quick start guide
Rev: 1
