Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VM-4HC 1:4 HDMI DA P/N: 2900-000716 Rev 4... -
Page 3: Table Of Contents
Safety Instructions Recycling Kramer Products Overview Defining the VM-4HC 1:4 HDMI DA Connecting the VM-4HC Acquiring the EDID Technical Specifications Default EDID Figures Figure 1: VM-4HC 1:4 HDMI DA Figure 2: Connecting the VM-4HC 1:4 HDMI DA VM-4HC – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer VM-4HC 1:4 HDMI DA, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer VM-4HC away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The Kramer VM-4HC is a high quality 1:4 HDMI distributor that accepts an HDMI input and distributes the signal to up to four outputs simultaneously, thus making it a versatile, reliable component in a video system. The VM-4HC distributes signals having resolutions up to UXGA, including all HDTV formats. -
Page 8: Defining The Vm-4Hc 1:4 Hdmi Da

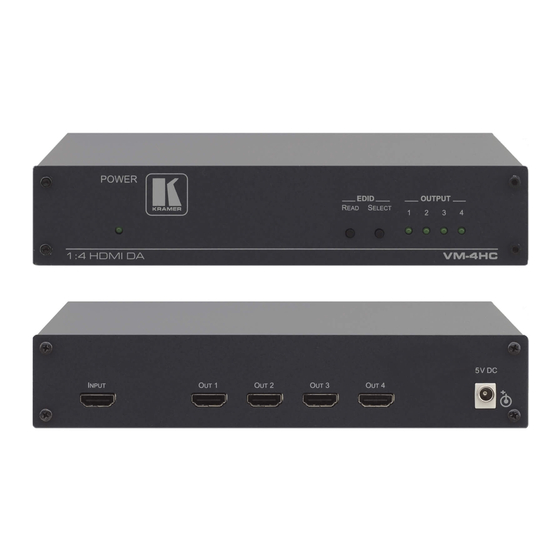

Defining the VM-4HC 1:4 HDMI DA This section defines the VM-4HC. Figure 1: VM-4HC 1:4 HDMI DA Feature Function POWER LED Lights red when the unit receives power EDID READ Button Press to read the EDID of the selected output... -
Page 9: Connecting The Vm-4Hc
Section 4.1). Acquiring the EDID Initially the VM-4HC operates with the factory default EDID stored in the non- volatile memory. The source reads the EDID from the device when the device is plugged in or powered on. The EDID can be acquired from: ... - Page 10 The EDID acquired is a weighted average of all the connected outputs. For example, if several displays with different resolutions are connected to the outputs, the acquired EDID supports all the resolutions, as well as other parameters included in the EDID VM-4HC - Connecting the VM-4HC...
-
Page 11: Figure 2: Connecting The Vm-4Hc 1:4 Hdmi Da
Figure 2: Connecting the VM-4HC 1:4 HDMI DA VM-4HC - Connecting the VM-4HC... -
Page 12: Technical Specifications
10% to 90%, RHL non-condensing 21.5cm x 16.3cm x 4.4cm (8.5” x 6.4” x 1.7”) W, D, H DIMENSIONS: WEIGHT: 0.6kg (1.32lbs) approx. ACCESSORIES: Power supply RK−1 19" rack adapter OPTIONS: Specifications are subject to change without notice at http://www.kramerelectronics.com VM-4HC - Technical Specifications... -
Page 13: Default Edid
Detailed timing #3..1280x720p at 60Hz (16:10) Modeline...."1280x720" 74.250 1280 1390 1430 1650 720 725 730 750 +hsync +vsync Detailed timing #4..720x480p at 60Hz (16:10) Modeline...."720x480" 27.000 720 736 798 858 480 489 495 525 -hsync -vsync VM-4HC - Default EDID... - Page 14 Rear center Front left/right center Rear left/right center Rear LFE Report information Date generated 15-Dec-11 Software revision 2.60.0.972 Data source File Operating system 5.1.2600.2.Service Pack 3 Raw data 00,FF,FF,FF,FF,FF,FF,00,2E,4D,23,00,01,01,01,01,0A,13,01,03,80,34,20,78,EA,B3,25,AC,51,30,B4,26, 10,50,54,A5,4B,00,81,80,A9,40,71,4F,01,01,01,01,01,01,01,01,01,01,01,1D,00,72,51,D0,1E,20,6E,28, 55,00,07,44,21,00,00,1E,00,00,00,FF,00,35,30,35,2D,37,30,37,34,35,35,30,31,30,00,00,00,FC,00,56, 4D,2D,34,48,43,20,20,20,20,20,20,0A,00,00,00,FD,00,38,4C,1E,53,11,00,0A,20,20,20,20,20,20,01,BC, 02,03,1B,F1,48,10,05,84,03,02,07,16,01,23,09,07,07,65,03,0C,00,10,00,83,01,00,00,02,3A,80,18,71, 38,2D,40,58,2C,45,00,07,44,21,00,00,1E,01,1D,80,18,71,1C,16,20,58,2C,25,00,07,44,21,00,00,9E,01, 1D,00,72,51,D0,1E,20,6E,28,55,00,07,44,21,00,00,1E,8C,0A,D0,8A,20,E0,2D,10,10,3E,96,00,07,44,21, 00,00,18,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,47 VM-4HC - Default EDID...
- Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
