Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VM-4HN 4 HDMI DA P/N: 2900-300106 Rev 1... -
Page 3: Table Of Contents
Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the VM-4HN 1:4 HDMI DA Connecting the VM-4HN Acquiring an EDID Technical Specifications Figures Figure 1: VM-4HN 1:4 HDMI DA Figure 2: Connecting the VM-4HN 1:4 HDMI DA VM-4HN – Contents... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer VM-4HN 1:4 HDMI DA, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer VM-4HN away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Plug and Play operation for HDMI systems A default EDID for fast and efficient connection of the unit The default EDID feature lets you connect the VM-4HN without having to connect a display to the output 3D pass-through ... -
Page 8: Defining The Vm-4Hn 1:4 Hdmi Da

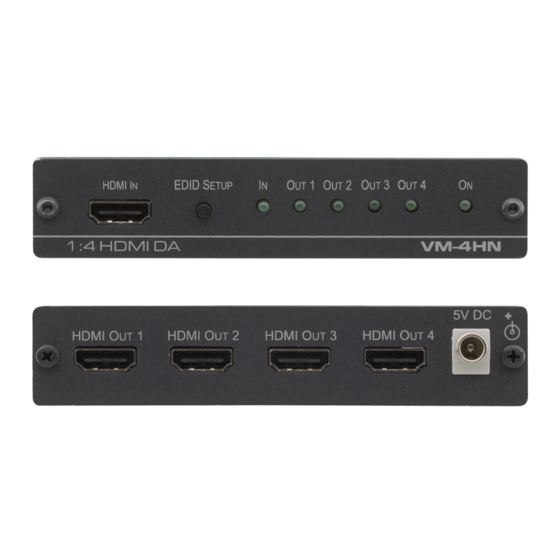

Defining the VM-4HN 1:4 HDMI DA Figure 1 defines the VM-4HN. Figure 1: VM-4HN 1:4 HDMI DA Feature Function HDMI IN Connector Connects to the HDMI source EDID SETUP Button Press to capture the input EDID or select the default EDID Section ... -
Page 9: Connecting The Vm-4Hn
Connecting the VM-4HN Always switch off the power to each device before connecting it to your VM-4HN. After connecting your VM-4HN, connect its power and then switch on the power to each device. Connect the VM-4HN as illustrated in the example in Figure 1. -
Page 10: Acquiring An Edid
The VM-4HN reads the EDID for a few seconds. When finished, all LEDS return to display the present output connection status. If an unconnected output is chosen or the EDID cannot be read, the VM-4HN loads the default EDID. VM-4HN - Connecting the VM-4HN... -
Page 11: Technical Specifications
10% to 90%, RHL non-condensing POWER CONSUMPTION: 5V DC, 800mA DIMENSIONS: 12cm x 7.2cm x 2.4cm (4.7" x 2.8" x 0.9") W, D, H WEIGHT: 0.3kg (0.67lb) ACCESSORIES: Power supply Specifications are subject to change without notice at http://www.kramerelectronics.com VM-4HN - Technical Specifications... - Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
