Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL VM-4HD HD/SD – SDI Distributor... -
Page 2: Table Of Contents
Technical Specifications Figures Figure 1: VM-4HD HD/SD - SDI Distributor Figure 2: Connecting the VM-4HD HD/SD - SDI Distributor Tables Table 1: VM-4HD HD/SD - SDI Distributor Features Table 2: Technical Specifications of the VM-4HD HD/SD - SDI Distributor Contents... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction... -
Page 4: 2.1 Quick Start
Getting Started 2.1 Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
Overview The VM-4HD HD/SD - SDI Distributor is a high performance 1:4 distributor for all SDI video signals. In particular, the VM-4HD: Accepts one input and distributes the signal to 4 identical outputs using BNC connectors Has a video bandwidth of 1.485GHz that allows it to be used for standard... -
Page 6: Your Vm-4Hd Hd/Sd - Sdi Distributor

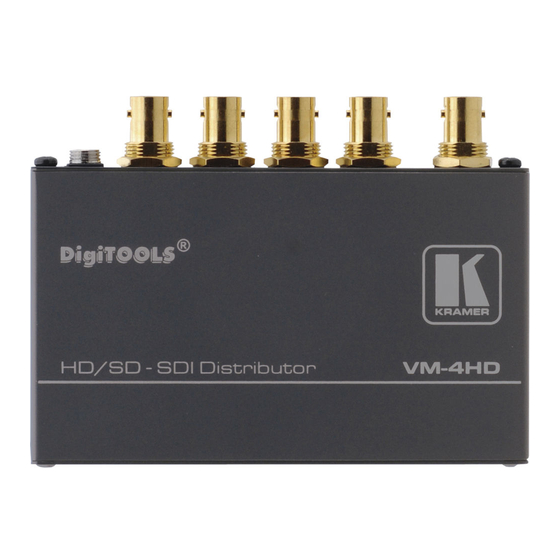

Your VM-4HD HD/SD - SDI Distributor Your VM-4HD HD/SD - SDI Distributor Figure 1 and Table 1 define the VM-4HD HD/SD - SDI Distributor: Figure 1: VM-4HD HD Table 1: VM-4HD HD/SD - SDI Distributor Features Feature 12V DC OUT BNC connectors... -
Page 7: Connecting The Vm-4Hd Hd/Sd - Sdi Distributor
Connecting the VM-4HD HD/SD - SDI Distributor Connecting the VM-4HD HD/SD - SDI Distributor To connect the VM-4HD, as the example in Figure 2 illustrates, do the following: Connect a HD/SD SDI video source (for example, an HD/SD SDI camera) to the INPUT BNC connector. -
Page 8: Technical Specifications
ACCESSORIES: OPTIONS: 1 Specifications are subject to change without notice Technical Specifications of the VM-4HD HD/SD - SDI Distributor 1 SMPTE-259M, 292M, 344M serial video, 75 ohms on a BNC connector 4 equalized and reclocked SMPTE-259M, 292M, 344M outputs 75 ohms on BNC connectors 800mVpp /75 ohms 1.485Gbps... - Page 9 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
