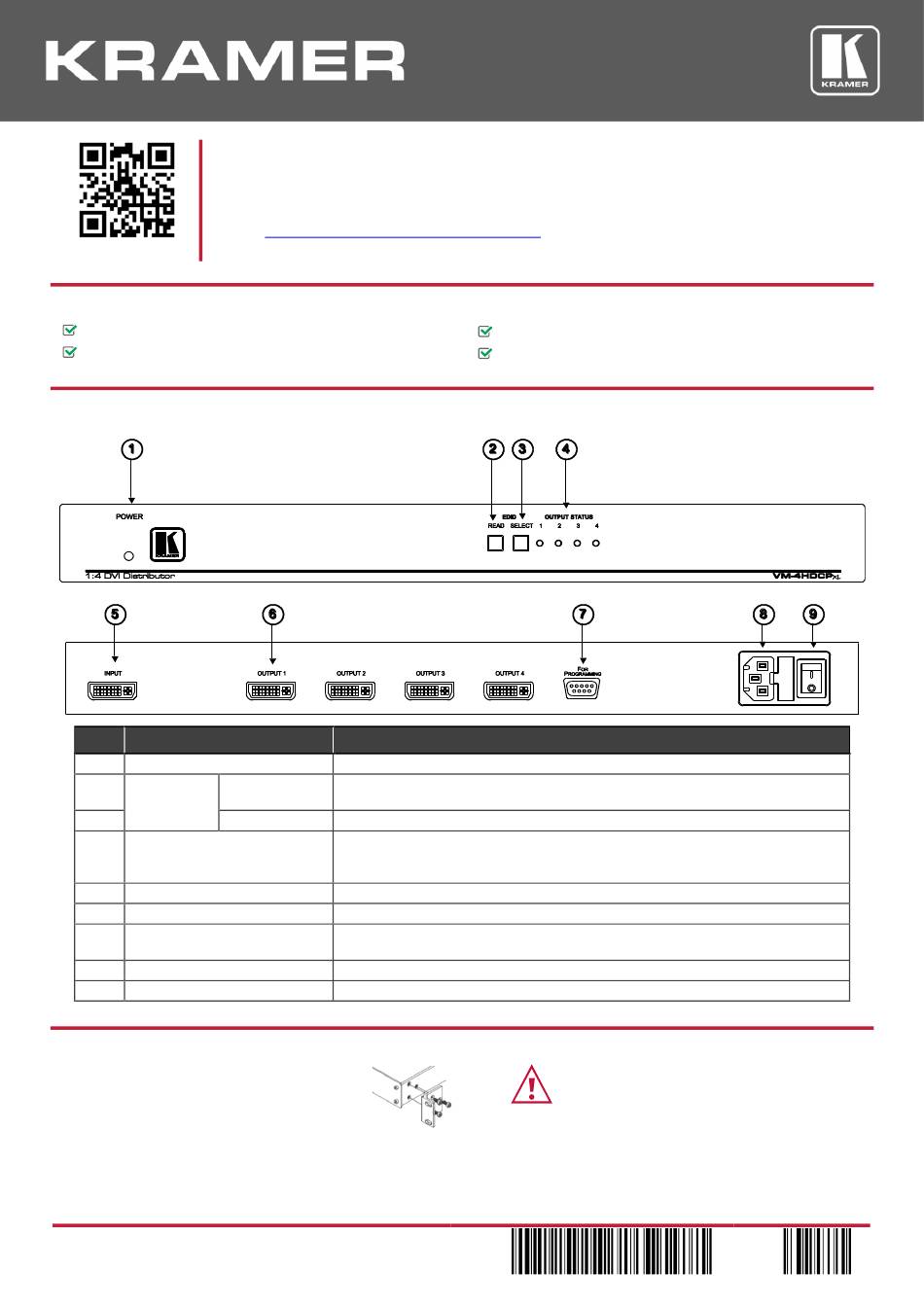

Kramer VM-4HDCPXL Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

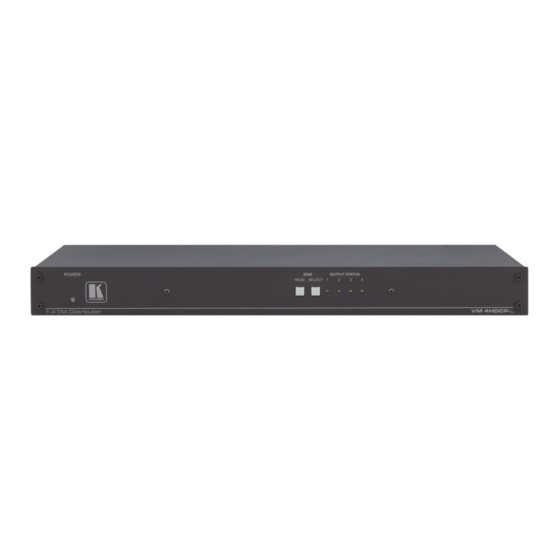

VM-4HDCPXL 1:4 DVI (HDCP) Distribution Amplifier
1 Power cord
Step 2: Get to know your VM-4HDCPXL
# Feature
1 POWER LED
2 EDID Buttons READ
3 SELECT
4 OUTPUT STATUS LEDs (from
1 to 4)
5 INPUT DVI Connector
6 OUTPUT DVI Connectors
7 FOR PROGRAMMING 9-pin D-
sub Port
8 Power Connector with Fuse
9 POWER Switch
Step 3: Mount VM-4HDCPXL
To rack mount the machine, attach both rack ears
(by removing the screws from each side of the
machine and replacing those screws through the
rack ears) or place the machine on a table.
VM-4HDCPXL Quick Start
VM-4HDCPXL Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VM-4HDCPXL
firmware upgrades are available.
Function
The green LED is illuminated when the unit is turned ON
1. To show the EDID status, press READ
2. To acquire the EDID, press the EDID SELECT button, then press READ
Press to select the EDID mode (One Output, Default or Auto-mix)
LEDs illuminate when an output(s) is connected and active;
LEDs flash to indicate the type of EDID acquired or when a non-HDCP display is
connected while HDCP content is provided to the VM-4HDCPxl
Connects to the DVI source
Connects to a DVI acceptor (from 1 to 4)
For service use only
AC connector enabling power supply to the unit
Illuminated switch for turning the unit ON or OFF
VM-4HDCPXL for the first time.
to download the latest user manual and check if
4 Rubber feet
1 Quick start guide
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
P/N: 2 9 0 0 - 3 0 1 2 6 5 QS Rev: 3
