3. INSTALLATION

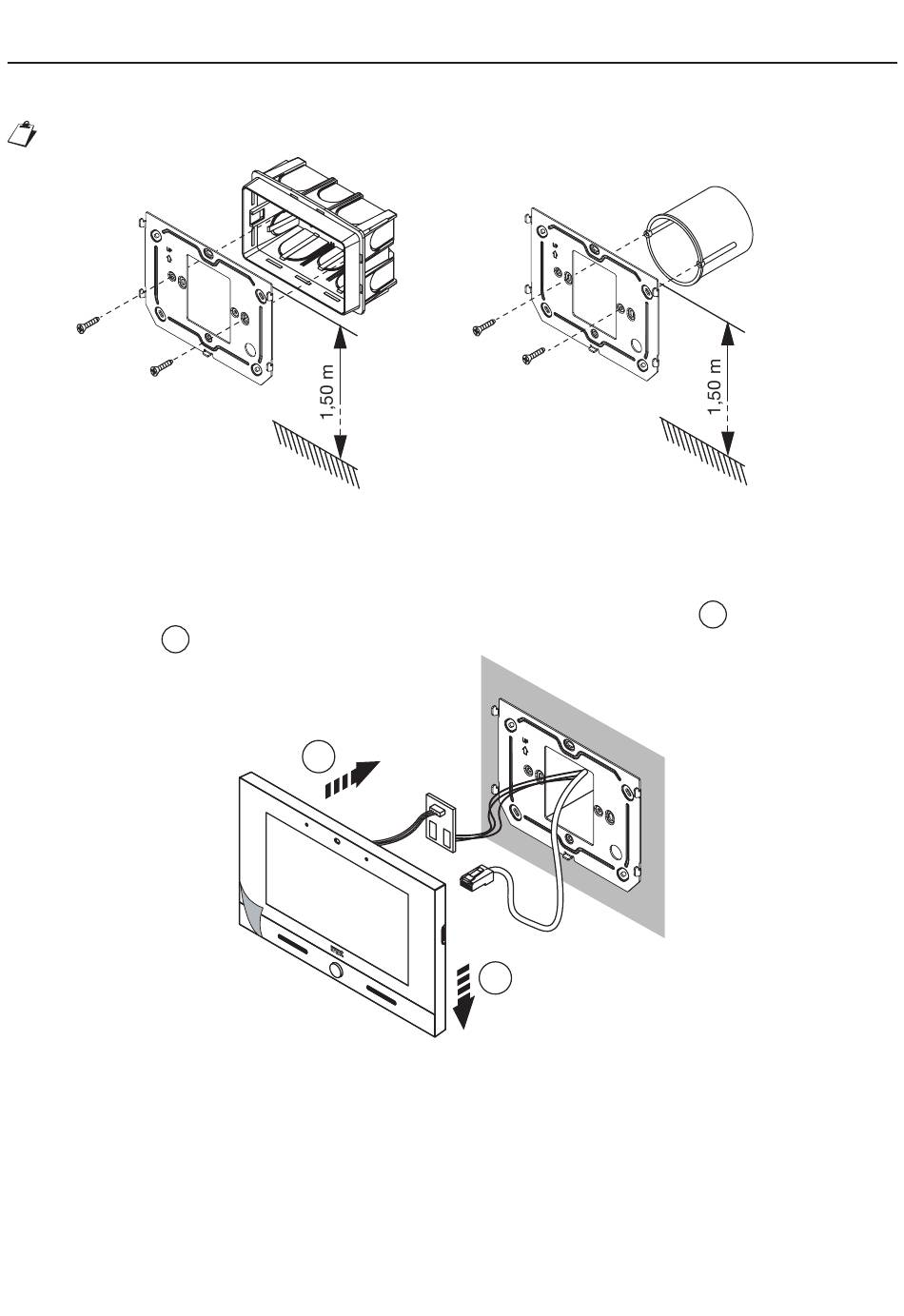

• Embed the flush-mounting box Mod. 503 in the wall or the flush-mounting box Ø 60 at the height shown
in the following drawing.
The flush-mounting box Mod. 503 can be installed either horizontally or vertically.
• Connect any panic function, extra ring tone, floor call, auxiliary power and link to IPerHOME system
function wires to the terminals on the external printed circuit.
• Connect the video door phone to the connector CN1 on the printed circuit board via the cable provided
on the back of the video door phone.
• Move the video door phone close to the bracket by centring the special fixings 1 and slide it down to
reach its stop 2 (see the following image).
• Use a screwdriver to move the latch for locking the video door phone to the bracket from right to left.
• Remove the protective film from the display.
