YXML
Linear gantry
Operating instructions
8170140
2022-03a
[8170142]
Translation of the original instructions
© 2022 all rights reserved to Festo SE & Co. KG
1 About this document
1.1 Applicable documents
All available documents for the product è www.festo.com/sp.
The area of application and the approvals of the individual components of the kit
are described in separate documents è www.festo.com/sp.
Download configuration-dependent documents
The technical data for the product are described in configuration-dependent docu-
ments.
These documents form part of the product documentation and can be down-
loaded as follows.
1. Read the order ID of the product.
2. Download the documents from the Festo Support Portal by entering the order
ID è www.festo.com/sp.
3. Print out the documents and keep them together with these operating
instructions.
2 Safety
2.1 General safety instructions
– Only use the product in its original condition without unauthorised modifica-
tions.
– Only use the product if it is in perfect technical condition.
– Observe labelling on the product.
– Before working on the product, switch off the power supply and secure it
against being switched on again.
– Observe tightening torques. Unless otherwise specified, the tolerance is
± 20 %.
2.2 Intended use
The intended use of the product is to execute positioning tasks within machines
or automation systems with a higher-order controller in an industrial environment.
2.3 Foreseeable misuse
Never use the product as follows:
– With unauthorised modifications or alterations to the product
– With load limits exceeded
– In an invalid mounting position
3 Additional information
– Contact the regional Festo contact if you have technical problems
è www.festo.com.
– Accessories and spare parts è www.festo.com/catalogue.
4 Product overview
Linear gantry
YXML-1
YXML-2
YXML-3
Tab. 1: Product allocation
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Deutschland
+49 711 347-0
www.festo.com
YZ module type
EXCT-15
EXCT-30
EXCT-100

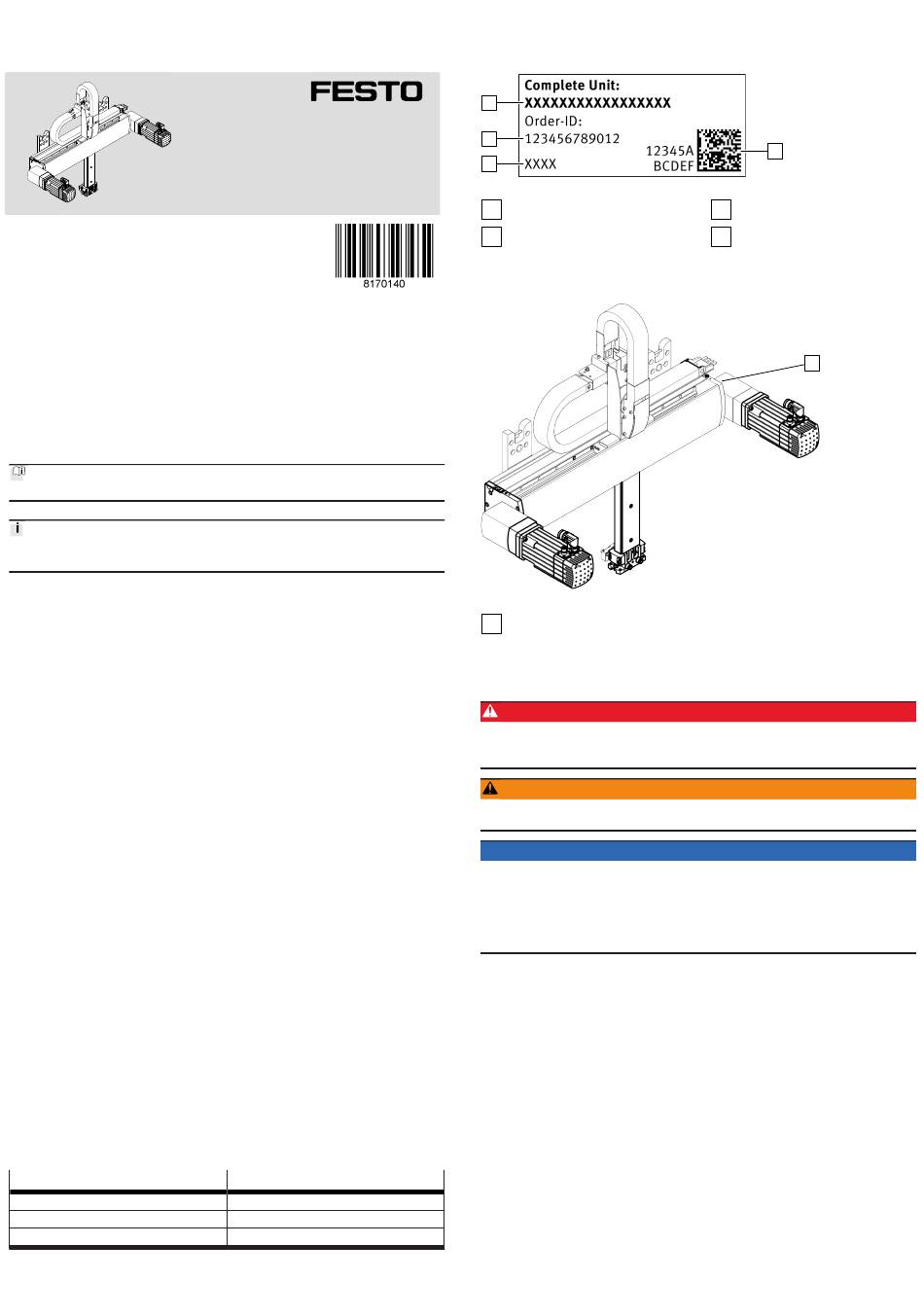

Product labelling
In addition to product labelling of individual components, the product also has
configuration-specific, higher-order product labelling in accordance with the fol-
lowing schematic:
1
2
3
Fig. 1: Configuration-specific product labelling
1 Product name
2 Configuration-specific order ID
The configuration-specific, higher-order product labelling is attached to all prod-
ucts at a specifically defined position.
Fig. 2: Position of higher-order product labelling
1 Position of higher-order product
labelling
5 Assembly
5.1 Demounting/mounting motors
DANGER
Serious injuries due to the motor falling from an elevated position.
• Demount motors with brake before assembling the product.
• Before loosening the retaining screws: secure the motor against falling.
WARNING
Electric shock.
• Make sure that the motors are disconnected from the power supply.
NOTICE
Third-party motors with a driving torque that is too high can damage the product.
• When using third-party motors observe the following:
• Only use motors with a brake.
• Maximum approved driving torque è www.festo.com/catalogue
• Attachment dimensions motor interface è www.festo.com/catalogue
• Matching combination of coupling, coupling housing and motor flange
4
3 Festo serial number
4 Configuration-specific
Product Key
