Festo YJKP Quick Start Manual

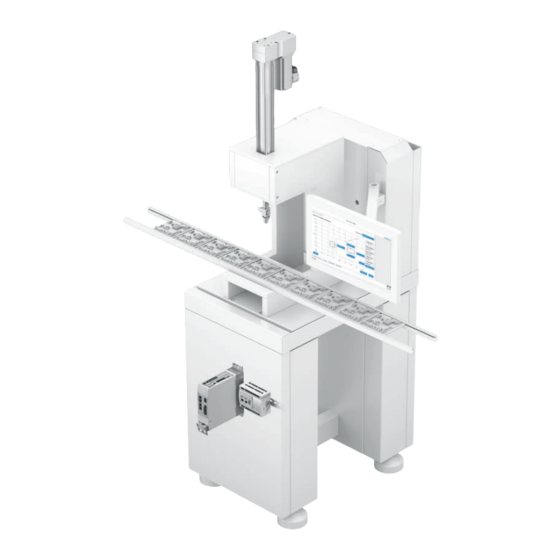

Servo press kit
YJKP
Instructions
8073313
2017-06c
[8073315]
Original instructions
CANopen®, EtherNet/IP®, MODBUS®, PI PROFIBUS PROFINET® are registered
trademarks of the respective trademark owners in certain countries.
1 About this document
1.1 Further applicable documents
All available documents for the product è www.festo.com/pk.
Designation
Web Help YJKP
Description CMMP-AS
Brief description CMMP-AS
Operating instructions EMMS-AS
Operating instructions ESBF-BS
Application Note
Tab. 1
TIPP!
The range of application and certifications of the individual components of the kit
are described in separate documents è www.festo.com/sp.
2 Safety
2.1 Use for intended purpose
This product is a module for execution of joining tasks with monitoring of the join-
ing process. The module can be used within machines or automated systems with
a higher-order controller.
Use the product only as follows:
– in perfect technical condition
– in its original condition, without unauthorised modifications
– within the limits of the product defined by the technical data
– in an industrial environment
– permanently mounted
TIPP!
In the event of damage caused by unauthorised manipulation or any use other
than that intended, the warranty is invalidated and the manufacturer is not liable
for damages.
2.2 Foreseeable misuse
Never use the product as follows:
– with unauthorised modifications or alterations to the product
– with load limits exceeded
– without a risk assessment of the complete system
– without a safety concept for the complete system
2.3 Qualification of specialized personnel
Only qualified personnel may perform installation, commissioning, maintenance
and disassembly of the product.
The qualified personnel must be familiar with installation of mechatronic systems.
3 Service
Contact your regional Festo contact person if you have technical questions
è www.festo.com.
Festo AG & Co. KG
73734 Esslingen
Ruiter Straße 82
+49 711 347-0
www.festo.com
Content
Operation of the software for servo press kit YJKP
Detailed description
Instructions and important notes on mounting,
electrical installation and maintenance
Instructions and important notes on mounting,
electrical installation and maintenance
Instructions and important notes on mounting,
electrical installation and maintenance
Application examples for implementation of the
safety function

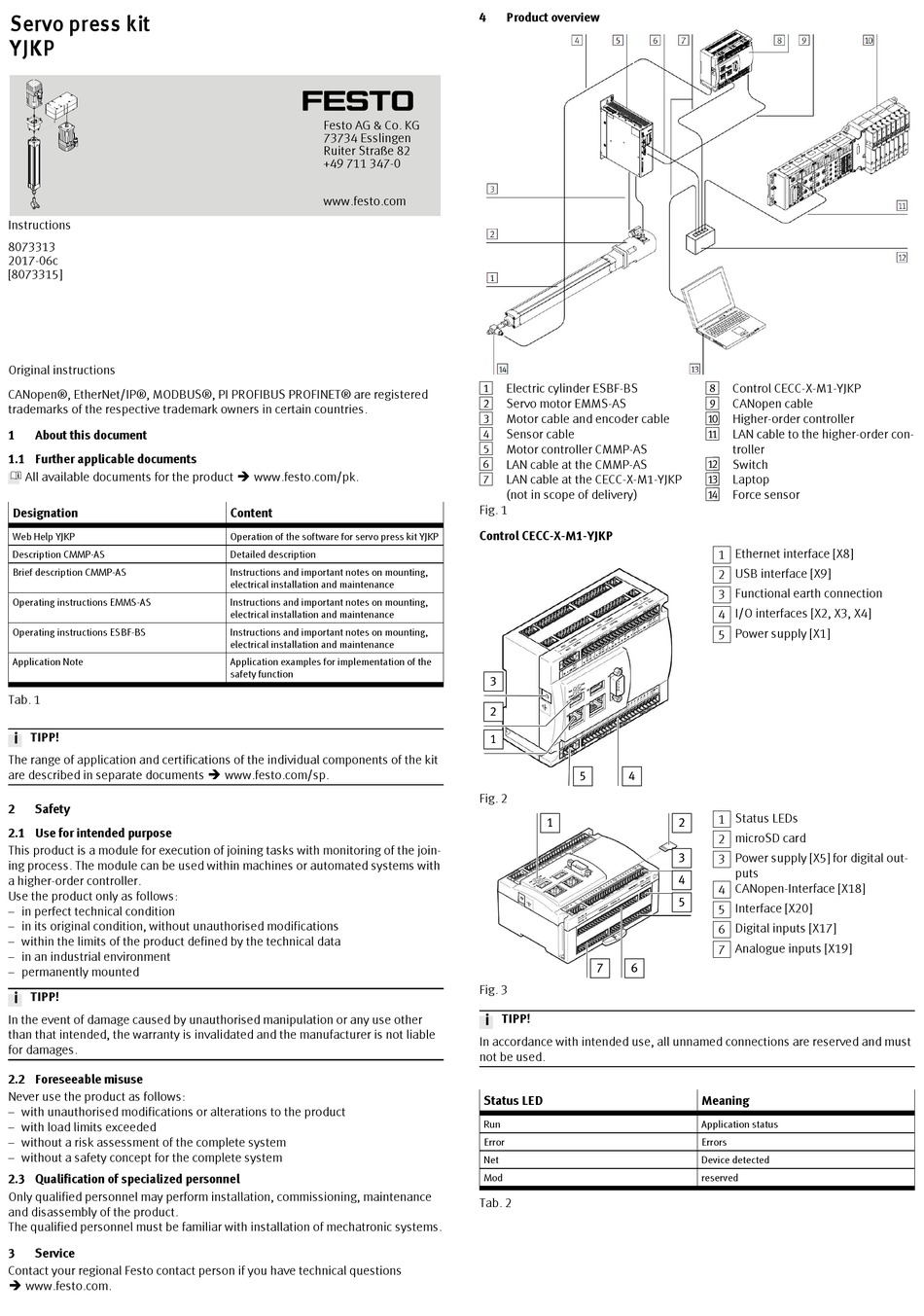

4 Product overview
1 Electric cylinder ESBF-BS
2
Servo motor EMMS-AS
3
Motor cable and encoder cable
4 Sensor cable
5
Motor controller CMMP-AS
6
LAN cable at the CMMP-AS
7 LAN cable at the CECC-X-M1-YJKP
(not in scope of delivery)
Fig. 1
Control CECC-X-M1-YJKP
Fig. 2
Fig. 3
TIPP!
In accordance with intended use, all unnamed connections are reserved and must
not be used.
Status LED
Run
Error
Net
Mod
Tab. 2
8 Control CECC-X-M1-YJKP
9
CANopen cable
aJ
Higher-order controller
aA LAN cable to the higher-order con-
troller
aB
Switch
aC Laptop
aD
Force sensor
1 Ethernet interface [X8]
2 USB interface [X9]
3 Functional earth connection
4 I/O interfaces [X2, X3, X4]
5 Power supply [X1]
1 Status LEDs
2 microSD card
3 Power supply [X5] for digital out-
puts
4 CANopen-Interface [X18]
5 Interface [X20]
6 Digital inputs [X17]
7 Analogue inputs [X19]
Meaning
Application status
Errors
Device detected
reserved
