Firegear LUME-MS1 Installation Instruction
  1. Manuals
  2. Brands
  3. Firegear Manuals
  4. Outdoor Fireplace
  5. LUME-MS1
  6. Installation instruction

Firegear LUME-MS1 Installation Instruction

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

DO NOT DISCARD. THIS INSTALLATION INSTRUCTION HAS
IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
LUME-MS1
LUME-MS2
LUME-MS1SR
LUME-MS2SR

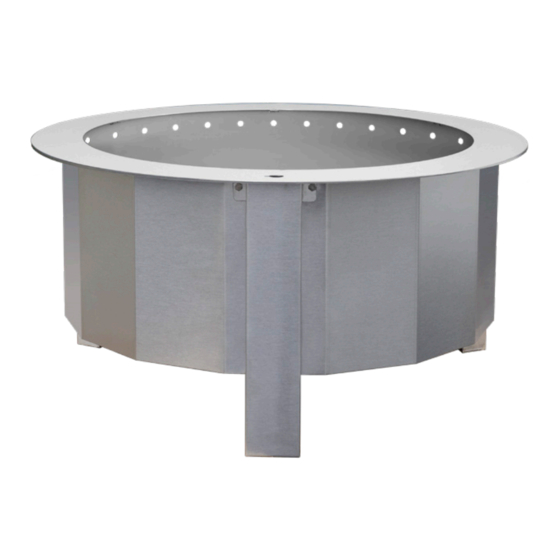

The LUME Freestanding Fire Pit is a 100% Commercial-Grade Stainless Steel smoke-less
wood-burning fire pit, specially designed to burn more efficiently and emit less smoke. The
LUME comes in two sizes with sear and non-sear options. The LUME can be placed in a variety
of outdoor areas and can also be dropped into a paving system for built-in application. If
installing the freestanding LUME in an SRW/Paver application, do not attach the legs to the unit
(review the Fits Opening dimensions on page 2). Stack wood at the open base of the pit using
the log cabin technique, light it, and then allow a few minutes for the fuels to ignite properly.
Within minutes enjoy the warmth, ambiance, and comfort of the LUME Smoke-Less Fire Pit.
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS, DO NOT
ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE.
WARNING: Fuels used in wood-burning appliances, and the products of combustion of such
fuels, can expose you to chemicals including carbon black, which is known to the state of
California to cause birth defects or other reproductive harm. For more information go to
www.p65Warnings.ca.gov
WARNING: FOR OUTDOOR USE ONLY
WARNING: Do not leave unattended during use.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause
injury or property damage, personal injury, or loss of life. Read the installation instructions
provided with this appliance.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUME-MS1 and is the answer not in the manual?

Questions and answers

Related Manuals for Firegear LUME-MS1

Summary of Contents for Firegear LUME-MS1

  • Page 1 DO NOT DISCARD. THIS INSTALLATION INSTRUCTION HAS IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER. MODEL: SERIAL #: LUME-MS1 LUME-MS2 LUME-MS1SR LUME-MS2SR The LUME Freestanding Fire Pit is a 100% Commercial-Grade Stainless Steel smoke-less wood-burning fire pit, specially designed to burn more efficiently and emit less smoke. The LUME comes in two sizes with sear and non-sear options.

  • Page 2: Stainless Steel

    LUME-MS1 LUME-MS2 Dimensions “A” “B” “F” LUME-MS1SR/MS2SR LUME-MS1/MS2 “D” “C” “G” “E” BOTTOM VIEW DIMENSIONS LUME-MS1 LUME-MS2 LUME-MS1SR LUME-MS2SR RIM OUTER DIAMETER (A) RIM INNER DIAMETER (B) Material TOLERANCES UNLESS DIMENSIONS LUME-MS1 LUME-MS2 LUME-MS1SR LUME-MS2SR HEIGHT (C) 16-3/8 16-3/8 16-7/16...
  • Page 3 How to Install the Legs The legs (1) are attached to the upper and lower portions of the outer liner (2) using four 1/4-20 hex head bolts (each leg). Securing each leg using four 1/4x20 hex bolts as shown (3). If you choose to install your unit with SRW/Pavers, do not install the legs to the unit.
  • Page 4 Clearance to Combustibles (Not to be used in an enclosed space) This fire pit is designed for outdoor use only. Not approved for any indoor use. The LUME should NEVER be used in a building, garage, or any other enclosed area. Avoid using near or under overhanging trees and shrubs.

  • Page 5: Maintenance

    SUGGESTED FUEL Selecting the right wood will depend on preference for comfort, aroma, and visual image. If you want constant heat output and a short flame with glowing coals, hardwood such as hickory, oak, or beech are recommended. If short hot fire for damp weather, select a softer wood such as redwood, fir, or white pine. TYPE OF WOOD DESCRIPTION OF WOOD Very dense, Hot burning, Should season at...

  • Page 6: Safety Warnings

    Clean out ashes every 2-3 Burns or when ash covers lower holes to maintain airflow for a smokeless fire. When you are finished enjoying your fire, do not extinguish the fire with water. Let the fire extinguish on its own. During winter months in cold climates and various seasons of operation the fire feature may be affected by weather conditions.

  • Page 7: Sequence Of Operation

    6. LUME was designed for wood fuel – using other fuels is not recommended and may produce more smoke as the design will not function properly. 7. After a period of non-use, check the unit for signs of damage or buildup. 8.
  • Page 8 Suite 105 Huntington Beach, CA 92647 Firegearoutdoors.com Manual changes often occur, ensure to check the Firegear Outdoors website for any recent updates and warranty information. STOP Having problems installing the fire pit? Don’t leave the job site! We want to help. Call 800-966-8126 for Technical Support between the hours of 8:00 am to 5:00 pm PST.
