Models - Natural Gas

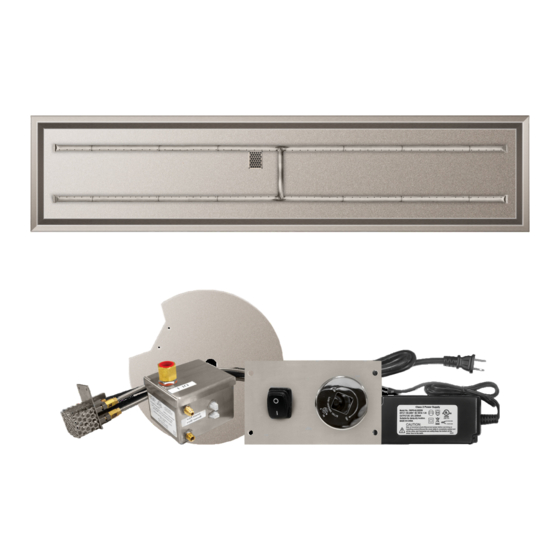

LOF-2414FHTPSI-N
LOF-3014FHTPSI-N
LOF-3614FHTPSI-N
LOF-4814FHTPSI-N
Outdoor Thermocouple Piloted
Safety Ignition (TPSI) Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
NOTE: All TPSI models come shipped from the factory as Natural gas or Propane (LP)
gas. They must be order specifically as Natural gas or Propane models and cannot be
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
MODELS
H-Burner Models
Models Propane Gas
LOF-2414FHTPSI-P
LOF-3014FHTPSI-P
LOF-3614FHTPSI-P
LOF-4814FHTPSI-P
field converted from one gas to another.
INSTALLATION PRECAUTION:
PN#90332
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
#20-025
H- Burner
21" x 10" Burner 75,000 Btu's
27" x 10" Burner 100,00 Btu's
33" x 10" Burner 125,000 Btu's
45" x 10" Burner 150,000 Btu's
Input Rating
Advertisement
Table of Contents
Related Manuals for Firegear LOF-2414FHTPSI-N
Summary of Contents for Firegear LOF-2414FHTPSI-N
- Page 1 SERIAL #: #20-025 MODELS H-Burner Models Models - Natural Gas Models Propane Gas H- Burner Input Rating LOF-2414FHTPSI-N LOF-2414FHTPSI-P 21” x 10” Burner 75,000 Btu’s LOF-3014FHTPSI-N LOF-3014FHTPSI-P 27” x 10” Burner 100,00 Btu’s LOF-3614FHTPSI-N LOF-3614FHTPSI-P 33” x 10” Burner 125,000 Btu’s...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. DANGER WARNING FIRE OR EXPLOSION HAZARD...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. -
Page 4: Specifications
SIDE COMBUSTILE COMBUSTIBLE DIMENSIONS DIMENSIONS DIMENSIONS LEVEL WALL CEILING FLOOR N= Natural Gas P= Propane Gas LOF-2414FHTPSI-N 24” x 14 21” x 10” 22” x 12” 8” 36” 96” 18” (609 x 355mm) (609 x 254mm) (558 X 330mm) (203mm) -
Page 5: Preparation For Non-Combustible Structure
Use the specifications listed on pages 4 and 5 for proper clearance to combustibles. Firegear Outdoors fire pits are constructed and tested to follow the rigid ANSI standards for gas appliances and manufactured safely providing dependable and certified products. If these fire pits are not installed according to the installation manual (i.e. -
Page 6: Cross Ventilation Requirements
7. These products are designed for outdoor use only. Not approved for any indoor use. 8. This fire pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner tube, so that the burner is not visible. Do not cover more than 1” above the top of burner. Use lava rock a minimum of 1”... -
Page 7: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 8: Removing Parts From Carton
REMOVING PARTS FROM CARTON Valve Assembly Flexible Gas Line Thermocouple Lead Piezo Wires Pilot Tubing Control Panel Hardware Carton Contents Fig. 5 Removing contents from carton. This fire pit is comes partially assembled from the factory. The pilot tubing and thermocouple leads are 48” in total length, therefore, when mounting the Gas Valve/Piezo Burner Pan mounting plate, ensure the mounting plate is close enough... -
Page 9: Media Requirements & Final Checks Before Operation
Thermocouple PIEZO48WH Connection PIEZO25WH Pilot Gas Remove red button cap and install battery into Piezo ignitor module. Line Outlet To Burner Inlet Gas Mounting Plate Supply Plastic Nut Red Button Cap Piezo Ignition Control Knob Fig. 8 TPSI control panel mounting plate. Fig. - Page 10 Non-Combustible Enclosure Pilot Spur Burner Flat Pan Pilot Tube Piezo Wires Gas Valve Thermocouple Gas Supply Piezo Shut-O Gas valve and flexible gas lines are supplied; E-Stop shut-off is not supplied, but available in accessories page. Flex lines with flared fittings do not require Teflon tape or pipe compound. Ensure not to “kink” the flex lines to allow better gas flow of gas.
-
Page 11: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. - Page 12 AWS REPLACEMENT PARTS Drawings Not to Scale H - Burner - Flat Pan with TPSI System REV. A Page 12...
-
Page 13: Replacement Parts
REPLACEMENT PARTS Qty. Item Description Part Number 24” x 14” LH-Flat Burner Pan (Used with 21” x 10” burner) 78047 30” x 14” LH-Flat Burner Pan (Used with 27” x 10” burner) 78048 36” x 14” LH-Flat Burner Pan (Used with 33” x 10” burner) 78049 48”... -
Page 14: Fire Pit Maintenance/Trouble Shooting
FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4. -
Page 15: Optional Accessories
OPTIONAL ACCESSORIES The following accessories are available from your local Firegear Outdoors dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. Media Glass Windshields See catalog for a windshield to fit your Lava Stones 1” to 2” size (50lbs.) application. - Page 16 FIREGEAR LIMITED WARRANTY - 2022 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 17 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 18 Product to be returned should; be packed so as not to incur damages during transportation. Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date issued. The RMA must be clearly marked on the outside of the package.
- Page 19 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors 17322 Gothard St.
- Page 20 Optional Cutout Template for TMS Face Plate This fire pit instruction provides an option to mount the TPSI face plate to concrete board. Use the template above to complete the installation. The TPSI face plate can be mounted vertically or horizontally. Our suggestion is to attach the face plate in a horizontal position with the gas valve on the left side.
- Page 21 Having problems getting the gas appliance to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
