H-Burner Models
Models NG/LP

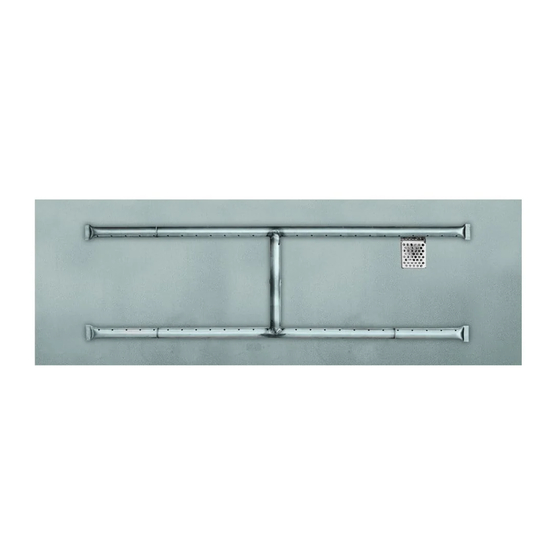

LOF-2414FHAWS-N/P 21" x 10" Burner 75,000 Btu's
LOF-3014FHAWS-N/P 27" x 10" Burner 100,00 Btu's
LOF-3614FHAWS-N/P 33" x 10" Burner 125,000 Btu's
LOF-4814FHAWS-N/P 45" x 10" Burner 150,000 Btu's
LOF-6016FHAWS-N/P 57" x 10" Burner 175,000 Btu's
LOF-7216FHAWS-N/P 69" x 10" Burner 200,000 Btu's
LOF-8416FHAWS-N/P 81" x 10" Burner 225,000 Btu's
LOF-9616FHAWS-N/P 93" x 10" Burner 250,000 Btu's
Flat Linear Fire Pits - All Weather System (AWS)
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
These fire pits are manufactured from the factory as Natural or Propane Gas.
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
MODELS
H- Burner
Input Rating
Ensure you order the proper gas type before installing.
INSTALLATION PRECAUTION:
PN#90145
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
T-Burner Models
Models NG/LP
LOF-2408FTAWS-N/P
LOF-3008FTAWS-N/P
LOF-3608FTAWS-N/P
LOF-4808FTAWS-N/P
LOF-6008FTAWS-N/P
LOF-7208FTAWS-N/P
LOF-8408FTAWS-N/P
LOF-9608FTAWS-N/P
T- Burner
Input Rating
21" Burner 50,000 Btu's
27" Burner 50,000 Btu's
33" Burner 75,000 Btu's
45" Burner 100,000 Btu's
57" Burner 125,000 Btu's
69" Burner 150,000 Btu's
81" Burner 175,000 Btu's
93" Burner 200,00 Btu's
Advertisement
Table of Contents
Related Manuals for Firegear LOF-2414FHAWS-N
Summary of Contents for Firegear LOF-2414FHAWS-N
- Page 1 Models NG/LP H- Burner Input Rating Models NG/LP T- Burner Input Rating LOF-2414FHAWS-N/P 21” x 10” Burner 75,000 Btu’s LOF-2408FTAWS-N/P 21” Burner 50,000 Btu’s LOF-3014FHAWS-N/P 27” x 10” Burner 100,00 Btu’s LOF-3008FTAWS-N/P 27” Burner 50,000 Btu’s LOF-3614FHAWS-N/P 33” x 10” Burner 125,000 Btu’s LOF-3608FTAWS-N/P 33”...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or us gasoline or other...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. -
Page 4: Specifications
MAX OPENING GROUND SIDE COMBUSTILE COMBUSTIBLE DIMENSIONS DIMENSIONS DIMENSIONS LEVEL WALL CEILING FLOOR N=NG; P=LP LOF-2414FHAWS-N 24” x 14 21” x 10” 22” x 12” 8” 36” 96” 18” LOF-2414FHAWS-P (609 x 355mm) (609 x 254mm) (558 X 330mm) (203mm) - Page 5 SPECIFICATIONS MODELS FLAT PAN BURNER MAX OPENING GROUND SIDE COMBUSTILE COMBUSTIBLE DIMENSIONS LENGTH DIMENSIONS LEVEL WALL CEILING FLOOR N=NG; P=LP LOF-2408FTAWS-N 24” x 8” 21” 22” x 7” 8” 36” 96” 18” LOF-2408FTAWS-P (609 x 203mm) (533mm) (558 x 152mm) (203mm) (914mm) (2438mm)
-
Page 6: High Elevation
Natural (NG) or Propane (LP) gas models. It must be this manual for a Firegear burner. NOTE: Depending on installed with a burner pan, burner, orifice and installed into venting locations, do not place fire pit directly on grass, a non-combustible enclosure. -
Page 7: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... - Page 8 Propane (LP) gas, by changing the secondary pilot orifice and main burner orifice. See page 17 and Power Supply - Firegear Outdoors offers two power accessories page. supplies for use with AWS fire pits. Each power supply requires 120VAC power to operate and converts it to Manual Shut-off/Key Valve - Is there a manual shut-off or 30VDC to operate the gas valve.
-
Page 9: Preparing A Non-Combustible Structure For Single Install Or Pool
PREPARING A NON-COMBUSTIBLE STRUCTURE FOR A SINGLE INSTALL POWER SUPPLY LOCATION The GOE-30VDC power supply is to be installed inside the enclosure due to the wire length limitations. The power cord is 3-feet long the 30VDC leads to the valve are 3-feet long. See Fig. 5. Fig. -
Page 10: Removing Fire Pit From Carton
REMOVING FIRE PIT ASSEMBLY FROM CARTON Flex Gas Line AWS Burner Pan Assembly Hardware GOE-30VDC Power Supply Carton Contents Fig. 8 Shows carton contents. Note: H-burner was illustrated for this drawing. Open carton and remove contents. Inspect for any The AWS system is polarity sensitive. There is a red damage or missing parts. -
Page 11: Wiring Diagrams For A Single Install
FINAL PREPARATIONS WIRING DIAGRAMS FOR A SINGLE INSTALL Pilot Non-Combustible Enclosure Burner Flat Pan Ori ce Heat Shield Red(+) Weather Switch Side View Proof 120VAC (To Valve Box) Power GFI Outlet Black (-) GOE-30VDC) Switch Close-Up GOE-30VDC Supply Power Supply Fig.9 Shows typical installation of fire pit using AWS system with a switch. -
Page 12: Media Requirements
MEDIA REQUIREMENTS Media Required Lava Glass Lava Media Required Per Lava Glass Lava Per T-Burner Rock Only Stones H-Burner Models Rock Only Stones Models Only Only Only Only LOF-2406FTAWS-N 10lbs 10lbs 10lbs LOF-2412FHAWS-N 10lbs 15lbs 10lbs LOF-2406FTAWS-P LOF-2412FHAWS-P LOF-3006FTAWS-N 10lbs 10lbs 10lbs LOF-3012FHAWS-N... - Page 13 OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water.
- Page 14 AWS REPLACEMENT PARTS Drawings not to scale. GOE-30DCV Weatherproof Cover/Lid Junction Box Drop in Pan - AWS Fire Pits REV. A Page 14...
-
Page 15: Replacement Parts
REPLACEMENT PARTS Part Number Item Description Qty. 24” x 14” LH-Flat Burner Pan (Used with 21” x 10” burner) 78047 30” x 14” LH-Flat Burner Pan (Used with 27” x 10” burner) 78048 36” x 14” LH-Flat Burner Pan (Used with 33” x 10” burner) 78049 48”... -
Page 16: Replacement Parts List
REPLACEMENT PARTS Description Qty. Part Number Item ½” NPT Female to ½” Male Flare Fitting (not shown) U3-8D-S ½” MIP Lock Nut 105-8 16 gage wire connector from gas valve (not shown) 10626 AWS power extension wire (25’) (not shown) 10625 Valve Box Reference 2-pin Igniter Connector... - Page 17 CONVERTING TO LP GAS When converting a Natural Gas (NG) model to Liquid Propane (LP) you must change the pilot orifice and the main burner orifice. See Table 6 for the pilot kit and LP orifice for your model. Note: These items must be purchased seperately. Pilot Btu Ratings LP Orifice...
-
Page 18: Troubleshooting
TROUBLESHOOTING Sequence of Operation Fire Feature Turned ON First Pilot with Hot Surface Igniter Heats Up and Glows (5-6 seconds) Secondary Pilot Opens; “Click” is Heard; Gas is Released to Burner Fire Feature is Lit Until Turned OFF The system is designed to relight itself if blown out. It will try (3) times to relight before it goes into a “hard”... - Page 19 TROUBLESHOOTING 3. Glow Plug Glows, But Does Not Ignite the Gas • Insufficient Power - If the glow plug is not getting enough power, it will not get ignite the gas. • Thin Wire - The recommended minimum wire gauge is 12AWG . If wire is less than 12-gauge there may not be enough power to get the igniter hot enough.
- Page 20 TROUBLESHOOTING 6. Fire Feature Cycles (Turns On and Off) Every Few Minutes • Gas Volume Insufficient – See symptom 5 page 29 for “Gas Volume Insufficient” for detailed explanation. • Oxygen Starvation (Pilot Burner) – See symptom 5 page 29 for “Oxygen Starvation” for detailed explanation. •...
-
Page 21: Optional Accessories
L.P. orifice (purchased separately from supplier) See page 17 for more information. NOTE: See the Firegear Outdoors catalogue for other accessories also available. FOR TECHNICAL SERVICE, CALL: (800) 966-8126 Firegear Outdoors 17322 Gothard St. - Page 22 FIREGEAR LIMITED WARRANTY - 2020 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 23 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 24 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
- Page 25 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
- Page 26 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors 17322 Gothard Street, Huntington Beach, CA 92647 www.firegearoutdoors.com Phone: 800-966-8126 Email: order@firegearoutdoors.com...
- Page 27 NOTES: REV. A Page 27 Drop in Pan - AWS Fire Pits...
- Page 28 Having problems getting the gas appliance to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
