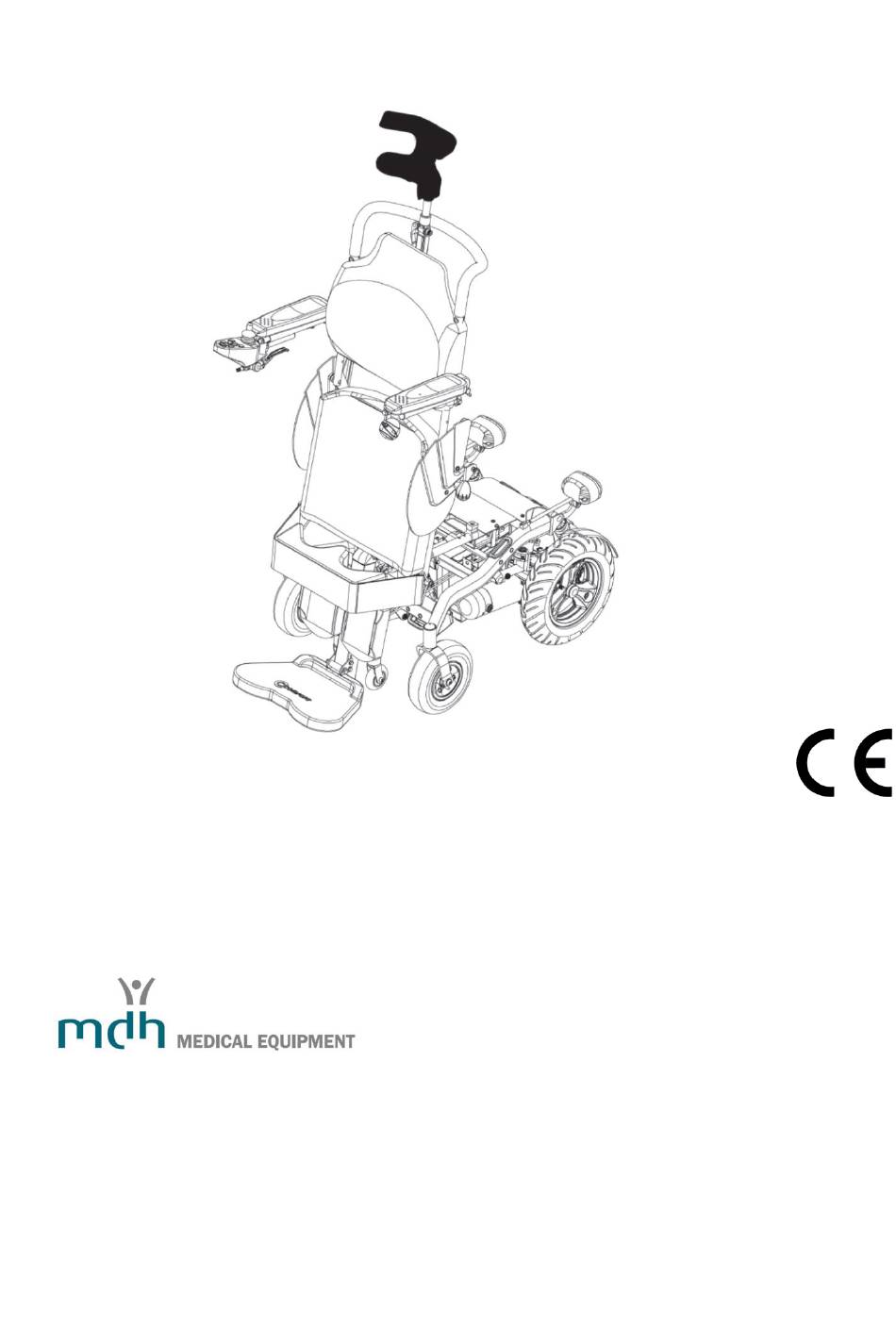

- Page 1 User manual Edition 08.2021 HERO STAND UP model Electric-powered wheelchair with verticalization...
- Page 2 If anything seems unclear or you have any doubts and questions concerning the use of the wheelchair, do not hesitate to contact your distributor. Hero Stand Up is a wheelchair manufactured according to the latest technology. Construction of this wheelchair enables to ensure its maximal adjustment to the requirements of the user. The wheelchair combines solid and durable construction, latest solutions as far as electronic control is concerned, and appropriate safety systems.
- Page 3 Batteries will be disconnected during transport in order to ensure their long lifetime. Remember to connect the red cord with input marked with "+" symbol before using the wheelchair for the first time. Remember that the user manual constitutes an integral part of the wheelchair. When you decide to sell the wheelchair, do not forget to give the user manual to the subsequent user (this is required by law).
- Page 4 WHEELCHAIR OPERATING TRAINING Master operating of the wheelchair and making all manoeuvres in order to safely move in the wheelchair. At first learn how to move forward. Make sure that the minimum speed has been set. When you will master moving straight forward, try to move in the shape of the letter S. Then you can begin training how to move backwards.
-
Page 5: Safety Measures
Do not use your mobile phone or any other personal communication devices (f. ex. CB radio) when operating the wheelchair. The wheelchair is not adjusted to be used in road traffic. Do not use the wheelchair outside when it's raining or snowing, when the temperature is too high (it exceeds 30°C) or too low (below 0°C). - Page 6 MOVING ON THE WHEELCHAIR Moving on rough terrain Moving on an undulating terrain creates more risk. It is important to follow the safety principles stated below. Failure to comply with these principles may lead to serious injuries. It is not recommended to move the wheelchair on slopes with inclination exceeding 10°. It is essential to remember that wet surface will additionally reduce the grip of the wheelchair and will impair the functioning of brakes when ascending and descending a slope.
-
Page 7: Maintenance
MAINTENANCE Hero Stand Up is an electric-powered device with complicated structure, and therefore it is not allowed to repair or modify the wheelchair independently. In case of any problems with functioning of the wheelchair, contact the authorized service. - Page 8 PREPARING THE WHEELCHAIR All additional elements of the wheelchair should be removed from the wheelchair for the duration of transport or they should be securely attached to the wheelchair, making sure that these elements do not cause injury or damage during sudden braking. In order to reduce the size of the wheelchair during transport, you can do two following actions: lift the foot-rest,...
- Page 9 PREPARING THE WHEELCHAIR FUSE When your wheelchair will be overheated press the fuse to break the circuit and ensure protection against damage. CLUTCH The wheelchair has a clutch lever enabling to disconnect the electric drive and push the wheelchair manually. If you want the electric drive to be activated, push the clutch lever forward.
- Page 10 Parameters Hero Stand Up Length 113.5 cm Width 62 cm Width of the seat 42 cm 46 cm Height 120.5 - 147.5 cm...
- Page 11 CONSTRUCTION OF THE WHEELCHAIR...
-
Page 12: Control Panel
CONTROL PANEL Control shifter is located on the control panel. Control shifter enables to move the wheelchair. It also has a set of keys to manage all functions of the wheelchair. Power switch is used to activate and deactivate the power supply of the wheelchair. - Page 13 CONTROL PANEL Speed indicator Indicates speed - if one LED is on it indicates minimum speed, of 5 LEDs area on it indicates maximum speed. This indicator also shows when the speed is automatically limited (when the position is changed to upright position), and this is when LEDs begin to flash.
-
Page 14: Locking And Unlocking The Control Panel
CONTROL PANEL LOCKING AND UNLOCKING THE CONTROL PANEL To lock the control panel: 1. With activated control panel, press and hold the power switch. After a second you will hear a sound. 2. Release the power switch. 3. Move the control shifter maximally to the front until you hear a sound. - Page 15 REPAIR Number of flashes Fault - repair The battery needs to be charged or it has not been properly connected. Check the battery connection or charge the battery. Left motor has not been properly connected. Check the motor connection. There is a short circuit between the left motor and the battery. Contact your distributor.
- Page 16 ADJUSTMENTS Head-rest adjustment Unscrew the screw regulating the head-rest clockwise. Set the desired height and tighten the screw. In order to adjust the angle of the head-rest, it is essential to lift the clamps indicated on illustrations A and B up, set the desired angle of the head-rest and let the clamps fall down. Illustrations below present the possibility to set various angles of the head-rest.
- Page 17 ADJUSTMENTS Adjustment of the knee stabiliser Adjustment is done by means of a velcro tape. It can be fastened more tightly or loosely, depending on requirements. It is important to adjust all parameters in a manner ensuring proper and stable position, both when sitting and when standing upright.
- Page 18 ADJUSTMENTS Properly adjusted pillow on the seat and the backrest is of considerable significance as far as proper standing position is concerned, and it is shown below. Lifting the foot-rest and arm-rests If necessary, it is possible to manually fold the foot-rest by lifting it up (as shown on the illustration). In order to facilitate transfer, it is possible to lift arm-rests.
-
Page 19: Battery Charging
ATTENTION Always remember to fasten and adjust stabilising straps. After adjusting all settings of the wheelchair and after sitting in the wheelchair in a comfortable position, fasten your chest stabilising belt. Make sure that this belt is properly adjusted and fastened. BATTERY CHARGING Charge the batteries with the battery charger supplied with the wheelchair. - Page 20 Do not expose the charger to rain, water and humidity. The charging process should take place in ambient temperature , ranging between 0°C and 40°C. Charging batteries in other conditions may be unsuccessful or may lead to damage of the batteries.
- Page 21 BATTERIES PROBLEMS RELATED WITH THE CHARGING PROCESS 1. Lack of voltage indication after connecting the charger. Check the connection of power cords. Check the connection socket of the charger. Check the functioning of the ventilator. 2. Red and yellow LEDs on the battery charge indicator are lighten up, but the ventilator does not turn on, despite the fact that the power is on.
- Page 22 ATTENTION 1. Faulty connection of the battery may cause battery damage. 2. In case when the battery is exposed to low temperatures (it is frozen), do not try to recharge the battery. 3. In case when the battery freezes, it is essential to leave it for several days in room temperature in order to warm the battery and then charge it.
- Page 23 Annual review The review should be performed in the service centre. The review aims to confirm that the wheelchair functions without impairments, all its systems (electric, electronic, drive system) function without problems. It also enables to prevent possible complications resulting from impairments within any of the systems.
- Page 24 Enjoy a safe and comfortable use of our wheelchair! Contact details mdh sp. z o.o. ul. Maratońska 104, 94-007, Łódź, Polska tel. +48 42 674 83 84 fax. +48 42 636 52 21 www.mdh.pl www.viteacare.com...
