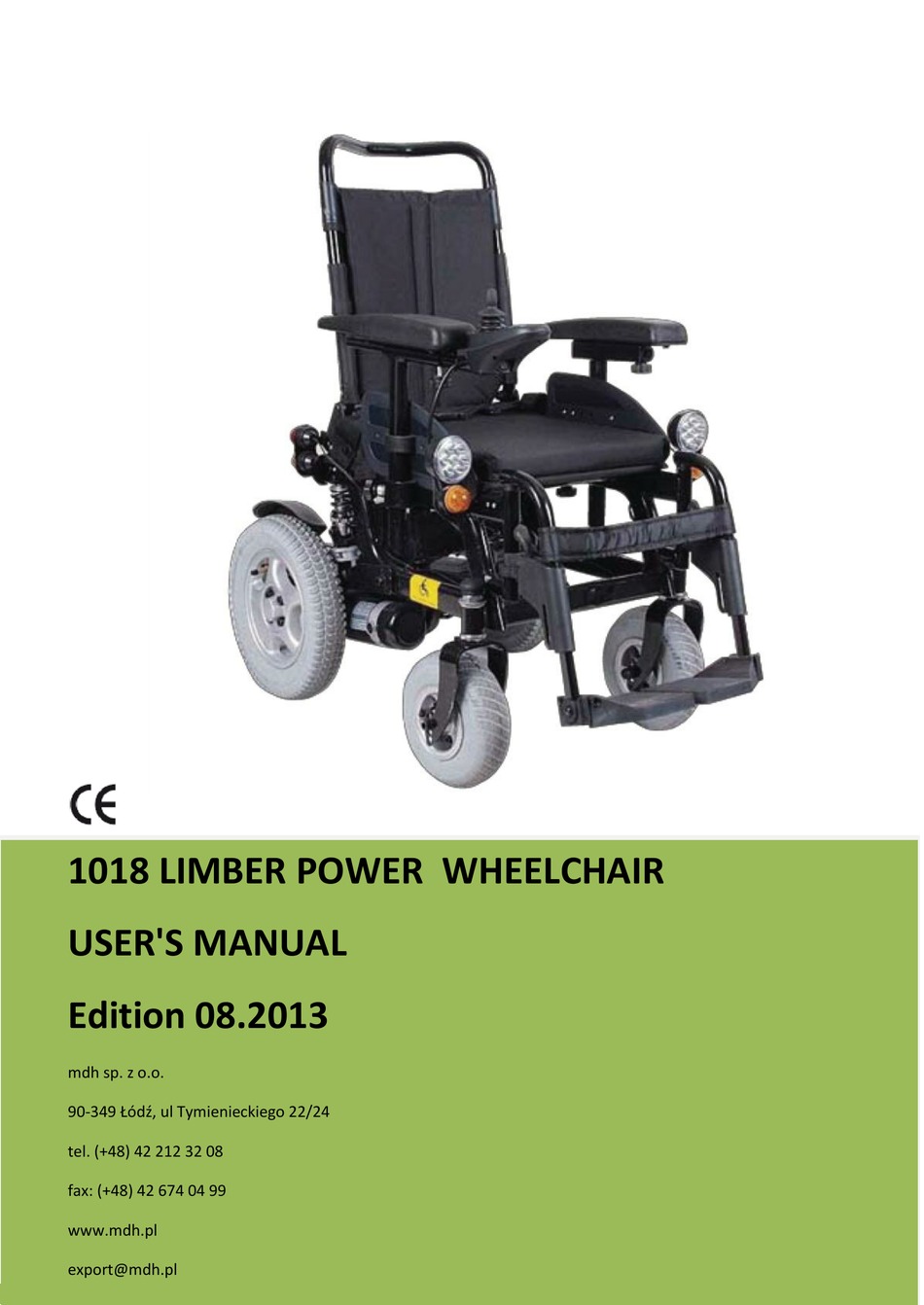

- Page 1 1018 LIMBER POWER WHEELCHAIR USER'S MANUAL Edition 08.2013 mdh sp. z o.o. TABLE OF CONTENTS 90-349 Łódź, ul Tymienieckiego 22/24 tel. (+48) 42 212 32 08 fax: (+48) 42 674 04 99 www.mdh.pl export@mdh.pl...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Practice before operating......................3 2. User’s safety..........................4 3. Driving outdoor.........................5 4. Driving over the hills and on uneven terrain................5 5. Technical parameters........................6 6. Battery and charging........................11 7. Maintenance and cleaning.......................13 8. Specification..........................14 Please, read the instruction carefully before the first use of the wheelchair. If any part of the text is not clear or if you need any further information, please, contact your dealer. -
Page 3: Practice Before Operating
1. PRACTICE BEFORE OPERATING Before driving the vehicle on everyday basis, you should find an open area such as a park to practice maneuvers . We recommend that when you practice driving you should be accompanied by an assistant. ... -
Page 4: User's Safety
2. USER’S SAFETY Do not carry passengers Do not drive after drinking alcohol Consult your physician to check if your medications impair your driving abilities Do not use any personal communication devices such as CB radios, cellular phones ... -
Page 5: Driving Outdoor
3. DRIVING OUTDOOR The wheelchair is not designed to move in the street traffic Do not use the wheelchair during rain or snow, when the temperature is higher than 30° C or lower than 0°C Do not use the wheelchair on soft, uneven, unprotected surfaces such as grass, gravel, sand or decks, beside a river, lake ... -
Page 6: Technical Parameters
5.TECHNICAL PARAMETERS handle headrest joystick armrest controller Front lights seat Rear light Footrest Rear shock absorber blockade Calf support Rear wheel Front wheels Left motor footrests... - Page 7 Controller battery charge indicator on/off button warning lights button horn button speed indicator light lights button acceleration button deceleration button mode button left turn button right turn button joystick On/Of f button It turns on/off VSI controller Battery status bar The battery condition meter is placed on the top of the control panel.
- Page 8 If the warning lights blink continuously up and down, the joystick was not is neutral position when the power wheelchair was switched off. Turn off the power, release the joystick and again turn on the power. WARNING! If you followed the user’s manual instructions but the warning lights are still blinking, please, contact your dealer.
- Page 9 Charger socket Charger socket allows to charge the wheelchair by connecting it to power outlet of max 12 A. The charger socket may be also used to connect the programmer which can modify wheelchair settings. Horn button Press the horn button to activate the horn. Driving lights button When you switch on the driving lights, the corresponding light icon will activate.
- Page 10 Controller adjustment It is possible to adjust the controller position to individual needs. Loosen the regulation screw (3), choose required controller position and tighten the screw. The controller may be placed on the right or left armrest. Motor clutch The wheelchair is equipped with two clutch levers which allow you to disengage the drive motors and maneuver the wheelchair manually.
-
Page 11: Battery And Charging
6. BATTERY & CHARGING The wheelchair is equipped with two 12 V, gel, maintenance-free batteries. The batteries are sealed so there is no need to check the electrolyte lever. WARNING! Use standard, 3-pin grounded plug and grounded socket. Never use the extension cord. While charging the battery, never use the same socket for other purposes. - Page 12 Battery removal In order to remove the batteries, pull out the battery box. The battery is equipped with overload protector which automatically disconnects a load when current exceeds a predeterminated value. When the motor is overloaded, the overload protector will spring up and disconnect a load. If the motor is overloaded, the motor power is being reduced and the wheelchair speed diminish till the motor and electronic control panel reach admissible temperature.
-
Page 13: Maintenance And Cleaning
MAINTENANCE AND CLEANING 1. Protect the controller and joystick against violent shakes and hitting. 2. Avoid long exposure of the power wheelchair to extreme cold, hot or humidity. 3. Always keep the controller and joystick clean. 4. Keep the wheelchair away from direct contact with water. 5. -
Page 14: Specification
10. SPECIFICATION Model no 1018 Limber Seat width 46 cm Weight (without battery) 50 kg Max capacity 120 kg Length 103 cm Width 63 cm Max speed 10 km/h Range 20 km Caster wheels 9 “ Drive wheels 14” Max capacity... - Page 15 export@mdh.pl...
