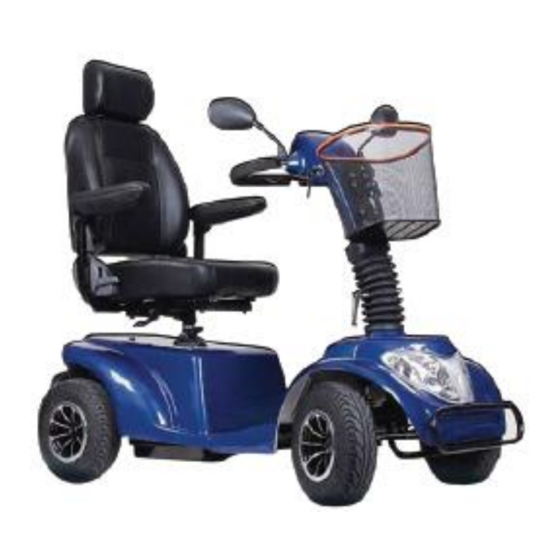

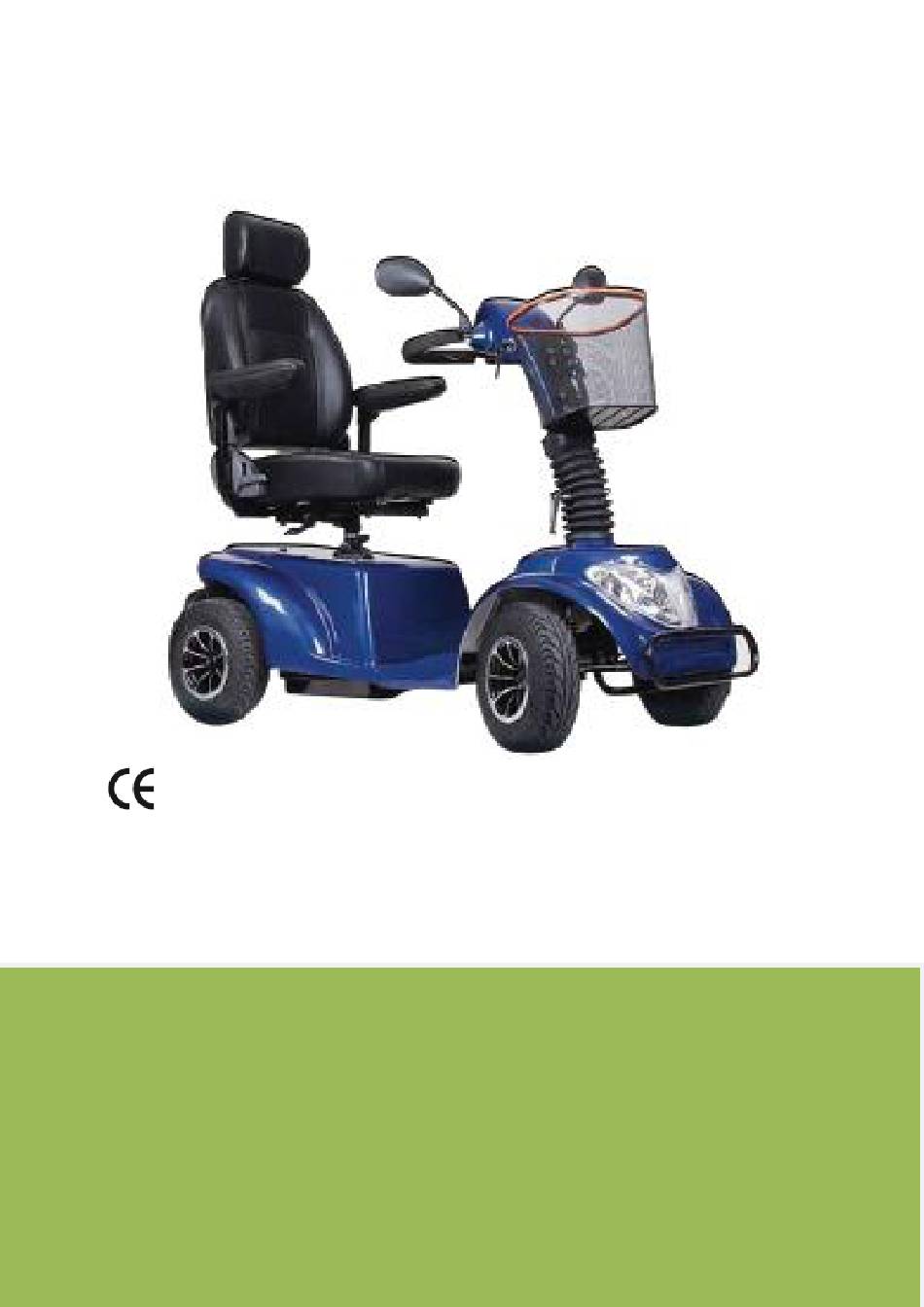

- Page 1 W 4028 CRUISER POWER WHEELCHAIR USER'S MANUAL Edition 09.2013 mdh sp. z o.o. 90-349 Łódź, ul Tymienieckiego 22/24 tel. (+48) 42 212 32 08 fax: (+48) 42 674 04 99 www.mdh.pl export@mdh.pl...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1.General rules..........................3 2. User’s safety..........................5 3. Driving outdoor.........................8 4. Driving over the hills and on uneven terrain................8 5. Technical parameters........................9 6. Battery and charging........................11 7 Comfort adjustment.........................12 8. Maintenance and cleaning......................14 9. Specification..........................16 Please, read the instruction carefully before the first use of the wheelchair. If any part of the text is not clear or if you need any further information, please, contact your dealer. -
Page 3: General Rules
1. GENERAL RULES 1. Always read the user’s manual carefully before the first use. 2. If you mark any problem or improper work of the power chair, contact the distributor. 3. Always follow the instructions outlined in the user’s manual, traffic regulations and other laws of your country. - Page 4 Getting onto and off your power chair Getting onto and off your scooter require a good sense of balance. When you getting on and off, help of your personal assistant may be required. In order to prevent injury when getting onto and off your scooter, please, follow the below rules: ...
-
Page 5: User's Safety
2. USER’S SAFETY Do not carry any passengers. Do not drive after drinking alcohol. Consult your physician to check if your medications impair your driving abilities. Never try to lift or push the power chair. Never try to disassemble the structural parts of the power chair (you can only remove the parts described in this user’s manual as removable). - Page 6 Additional instructions 1. The battery condition meter indicates battery capacity. If the battery capacity is low, please, stop using the wheelchair and load the batteries. 2. If the control LED indicator lights when you are using the wheelchair, it means that the wheelchair does not work properly.
- Page 7 Practice before operating Before driving the vehicle on everyday basis, you should find an open area such as a park to practice maneuvers . We recommend that when you practice driving you should be accompanied by an assistant. ...
-
Page 8: Driving Outdoor
3. DRIVING OUTDOOR The wheelchair is not designed to move in the street traffic. Do not use the wheelchair during rain or snow, when the temperature is higher than 30°C or lower than 0°C. Do not use the wheelchair on soft, uneven, unprotected surfaces such as grass, gravel, sand or decks, beside a river, lake. -
Page 9: Technical Parameters
5. TECHNICAL PARAMETERS Wheelchair parts control console assembly headrest mirror seat basket armrest lever for adjustment of lever for seat tilt control console assembly adjustment lever for swivel front light seat adjustment rear lights Front light front turn signal battery cover indicator anti-tip wheels front bumper... - Page 10 Ignition switch Speed adjustment Picture of rabbit indicates maximum speed, the picture of turtle indicates the slowest speed. turtle rabbit Horn button Press the horn button to activate the horn. Light switch Press the light switch to turn on the lights. Press again to turn them off.
-
Page 11: Battery And Charging
6. BATTERY & CHARGING Battery The wheelchair is equipped with maintenance-free batteries. The batteries are sealed so they do not require any other activities apart from charging. Attention! Always use the 3-pin earthed plug and earthed socket. Never use the extension cord. Never use the same socket for other purposes while charging the batteries. -
Page 12: Comfort Adjustment
Turn off Charging socket When charging the batteries, please, follow the below rules: 1. Place the wheelchair close to the earthed socket. 2. Turn off the wheelchair and take the key out of the ignition switch. 3. Plug the charger into the charging socket. 4. - Page 13 You can swivel the seat (360°) and block it in four different positions, every 90 °. The lever which allows to regulate the seat positions, is located under the seat, on the right side. In order to change the seat position, raise the lever , choose desired position and release the lever. Armrest adjustment Raise the armrest when getting on/off the wheelchair.
-
Page 14: Maintenance And Cleaning
Removing the armrests Loosen the two blocking screws placed at the back of the seat. Pull the armrests. Assembling the armrests bloking screws Put the armrest into the frame. Loosen the screw, adjust the armrest and tight the screw. The right and left armrest may be adjusted separately with the use of screws placed at the back of the seat frame. - Page 15 Frame Always keep the frame and upholstery clean. Use soft, dry cloth to clean the main frame and the upholstery. Do not use any abrasive. While cleaning, do not use any detergents directly on the controller, battery charger or other power connectors. Keep the wheelchair away from direct contact with water.
-
Page 16: Specification
9. SPECIFICATION Model no W4028 Cruiser Length 1480 mm Width 670 mm Front wheel 13’’ Rear wheel 13’’ Weight capacity 180 kg Motor 2400 W max Max speed 15 km/h Range* 30 km Turning radius 1650 mm Battery 2x55 AH Charger 220 V AC 24Vx6AMP Admissible tyre pressure...
