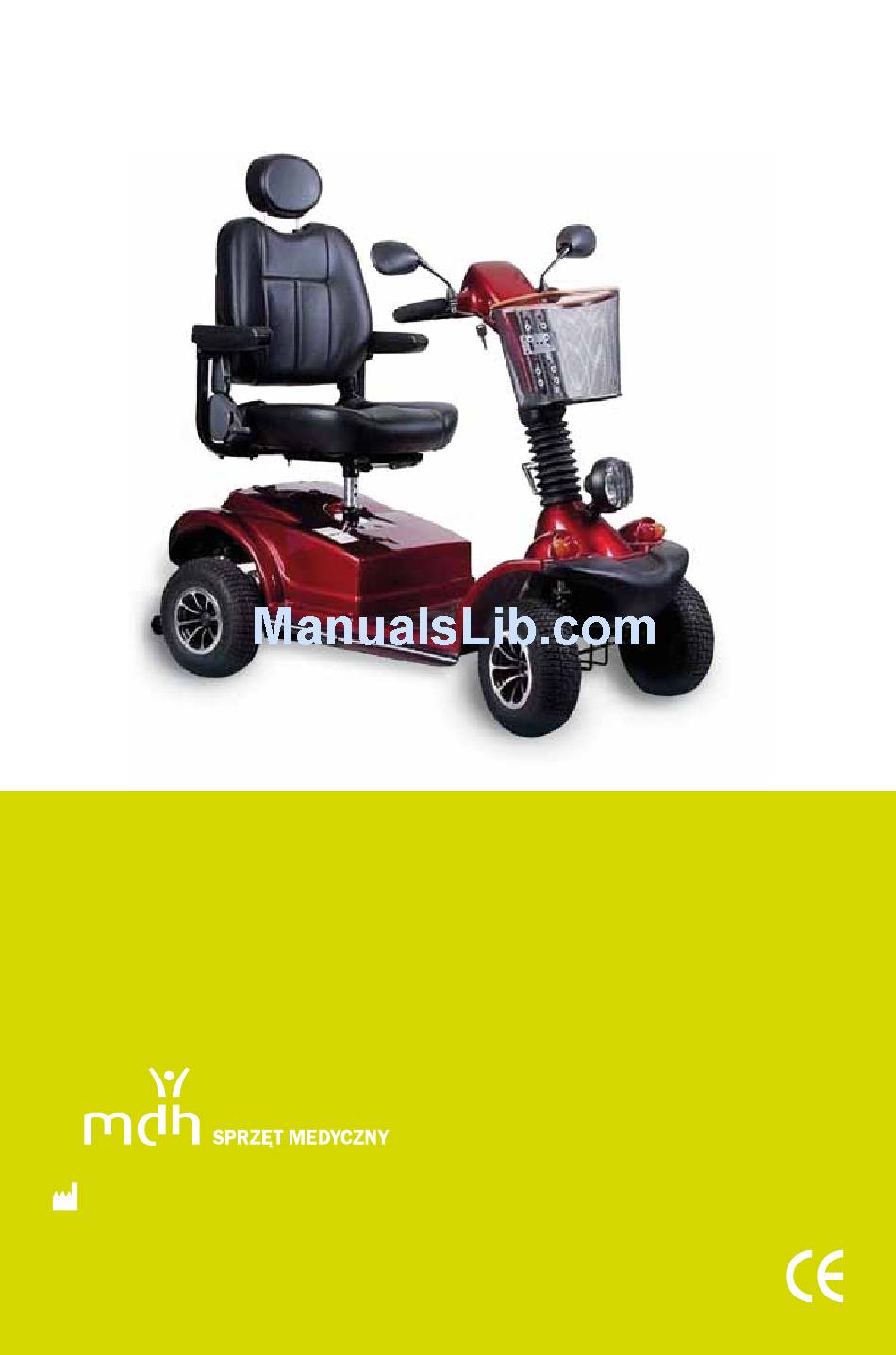

- Page 1 User's manual Power wheelchair W4029-HUNTER PLUS edition 07.2014 mdh sp. z o.o. 90-349 Łódź ul. Ks. W. Tymienieckiego 22/24 tel. 42 674 83 84 fax 42 636 52 21 e-mail: biuro@mdh.pl www.mdh.pl...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Specification ..............................3 User's safety..............................4 Preparation for driving ..........................8 Wheelchair driving training ........................9 The construction of wheelchair......................10 Battery and charging ..........................12 Sitting ................................13 Maintenance and cleaning ........................15 The wheelchair is designed according to the latest trends and technology. Its construction enables optimal adaptation to user’s needs. -
Page 3: Specification
Specification 730mm 1420mm Model W 4029 HUNTER PLUS Sizes 1420 (lenght) x 730 (width) Weight 99 kg (without battery) Max speed 14 km/h Max terrain inclination 10° (180 kg) Motor 2400 W max Range* 50 km Weight capacity 180 kg max Turning radius 1650 mm Battery... -
Page 4: User's Safety
User's safety Not following the instruction may result in vehicle damage or serious injury. General rules Attention: 1. Always read the user’s manual carefully before the first use. 2. If you mark any problem or improper work of the power chair, contact the distributor. 3. - Page 5 Capacity Attention: 1. The maximum capacity is 180 kg. Never exceed the maximum capacity as it may lead to wheelchair damage and cause injury. 2. Do not carry any passengers. Never carry any pets, luggage or other items placed on the knees.
- Page 6 Movement Atention: 1. Do not attempt to lift or push the wheelchair. 2. Not disassemble structural parts of the wheelchair (in addition to the parts that are intended to be removable as described in the manual). Driving after drinking Attention: 1.
- Page 7 4. If the incline is too big, your wheelchair will stop moving. 5. When you drive down the slope, always slow down. Stairs & Escalators Attention: 1. The wheelchair is not intended to drive on the stairs Inspections, repairs, adjustments In order to ensure that your wheelchair will give you years of trouble-free operation, the user should regularly inspect and maintain the wheelchair.
-
Page 8: Preparation For Driving
Practice before operating Attention: 1. Before driving the vehicle on everyday basis, you should find an open area such as a park to practice maneuvers . 2. Always make sure that the vehicle is set off before getting in or getting out of the vehicle. Always check that the speed setting is chosen according to your experience and skills. -
Page 9: Wheelchair Driving Training
Wheelchair driving training First, practice moving forward. Make sure that the speed is set on the slowest position. Then, practice “S” turns. Finally, practice driving backwards. Please, mark that while driving backwards the vehicle always moves slower regardless of the speed setting. - Page 10 Wheelchair parts Control console assembly Headrest Mirror Seat Basket Armrest Lever for adjustment Lever for seat tilt of control console adjustment assemblyy Front light Rear light Front turning signal indicator Batttery cover Front bumper Lever for seat anti-tip wheels adjustment (forward - backward) Control console assembly Speed...
-
Page 11: The Construction Of Wheelchair
Ignition switch Speed adjustment Picture of rabbit indicates maximum speed, the picture of turtle indicates the slowest speed. Rabbit Turtle Blinkers 1. Signaling to turn left/right. To signal a left/right turn shift the power switch on the appropriate side. 2. After completion of the maneuver, set the switch to the neutral position to turn off the blinker. Horn button Press the horn button to activate the horn. -
Page 12: Battery And Charging
Charging Battery The wheelchair is equipped with sealed, maintenance-free batteries. Atention: 1. Always use the 3-pin earthed plug and earthed socket. 2. Never use the extension cord. 3. Never use the same socket for other purposes while charging the batteries. 4. -
Page 13: Sitting
5. Turn on the charger (red light means that you should immediately charge the batteries, yellow light indicates that the battery is semi- charged, green light – the battery is fully charged). 6. If you charge the new battery for the first time, the charging time should be 24h. You should charge the battery till the green LED indicator light activates, no longer than 24h. - Page 14 Removing the seat 1. Fold the seat. 2. Remove the pin and then remove the seat. Seat assembly 1. Put the folded seat into the frame. 2. Unfold the seat. Seat adjustment 1. Lift and unlock the lever positioned under the seat in front. 2.
-
Page 15: Maintenance And Cleaning
Armrest: 1. The right and left armrest may be adjusted separately with the use of screws placed at the back of the seat frame. 2. If you want to adjust one armrest, loosen the screw placed close to it. 3. Adjust the armrest and tighten the scew. MAINTENANCE AND CLEANING Baterry If you do not intend to use the wheelchair for a month or longer, charge the batteries,... - Page 16 We wish you a safe and convenient use of our power wheelchair! mdh sp. z o.o. 90-349 Łódź ul. Ks. W. Tymienieckiego 22/24 tel. 42 674 83 84 fax 42 636 52 21 e-mail: biuro@mdh.pl www.mdh.pl Service mdh sp. z o.o.
