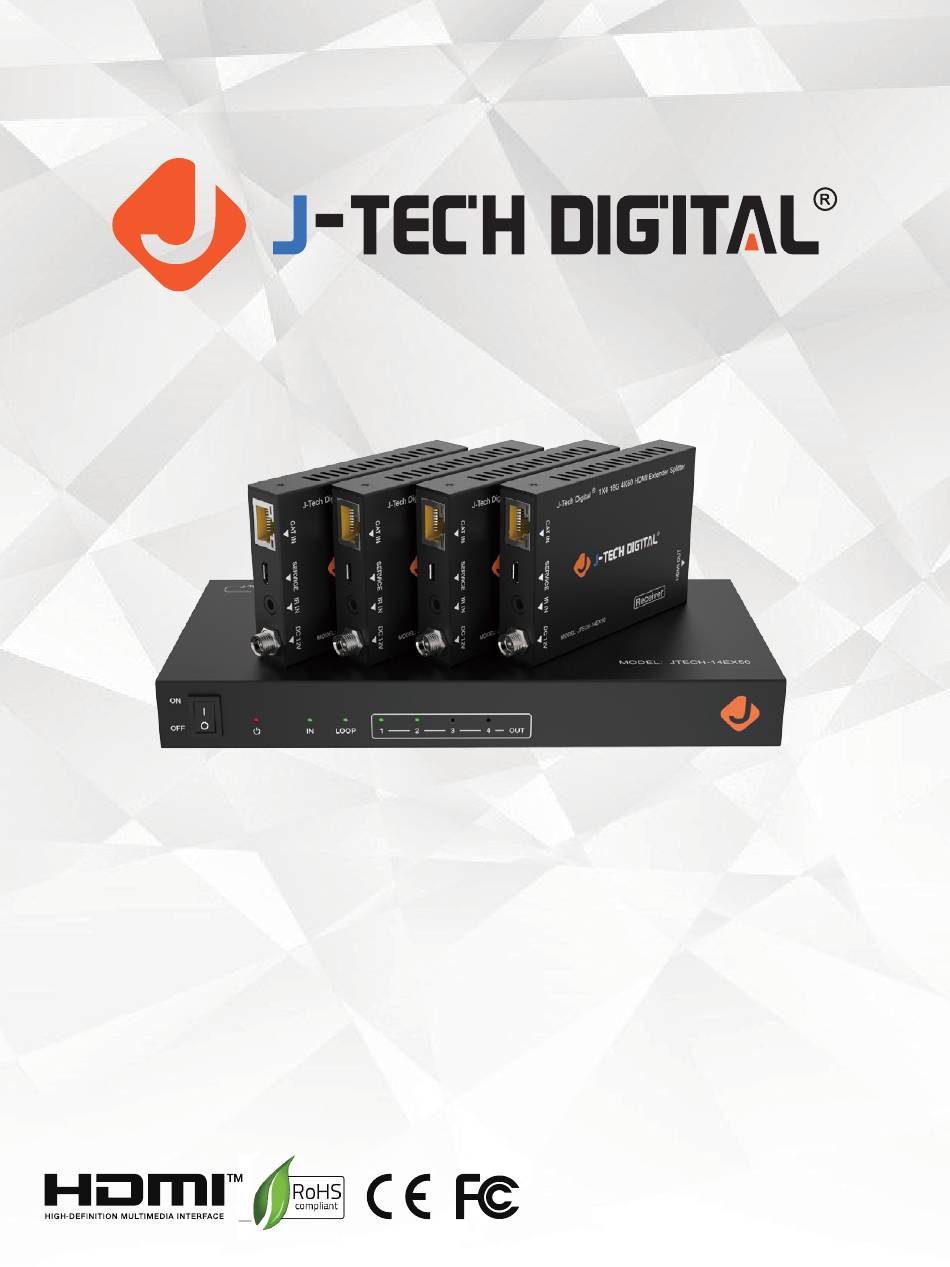

- Page 1 USER MANUAL × 4 18G 4K60 HDMI Extender Splitter JTD-185 I JTECH-14EX50 J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction............................3 2. Features..............................3 3. Package Contents..........................3 4. Specifications............................4 5. Operation Controls and Functions....................5 5.1 Front Panel............................5 5.2 Rear Panel............................8 5.3 IR Pin Definition..........................9 6. EDID Mode............................. 10 7. ASCII Commands..........................11 8. -
Page 3: Introduction
1. Introduction The 18Gbps HDMI 1x4 Splitter can distribute 1 HDMI source signal to any 4 display devices. Support video resolution up to 4K2K@50/60Hz 4:4:4. It is designed with 1 HDMI loop output and 4 CAT outputs. The HDMI signal transmission distance can be extended up to 35 meters at the resolution of 4K2K@60Hz, or 50 meters at 4K2K@30Hz, or 60 meters at 1080P@60Hz via a single CAT6/6a/7 cable. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 594MHz/18Gbps Video Resolution Up to 4k2k@50/60Hz 4:4:4 8-bit, 10-bit, 12-bit (1080p@60Hz) Color Depth 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) Color Space RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0 Support HDR 10, HDR 10+, HLG, Dolby Vision LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, HDMI Audio Formats... -
Page 5: Operation Controls And Functions
Mechanical Housing Metal Enclosure Silkscreen Color Black Transmitter: 210mm (W) × 100mm (D) × 25mm (H) Dimensions Receiver: 88mm (W) × 61mm (D) × 18mm (H) Weight Transmitter: 617g Receiver:155g Input: AC 100-240V 50/60Hz, Output: DC 12V/2.5A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption 14W (Max) Operation... -
Page 6: Rear Panel
Name Function Description POWER Switch Press this switch to power on/off the device. POWER LED When the device is powered on, the red power LED will be on. When the HDMI IN port connects an active source device, IN LED the green LED will be on. - Page 7 Name Function Description Data Signal ▪ Illuminating: HDMI signal with HDCP. Indicator LED ▪ Flashing: HDMI signal without HDCP. (Orange) ▪ Dark: No HDMI signal. Connect the IR Blaster cable to transmit IR signal from the CAT IR OUT receiver. Plug the DC 12V power supply into the unit and connect the DC 12V adaptor to an AC outlet.
- Page 8 5.2 CAT Receiver HDMI OUT CAT IN SERVICE IR IN DC 12V Name Function Description HDMI output port, connect to HDMI display device such as HDMI OUT TV or Projector with a HDMI cable. Connect to the CAT OUTPUT port on the transmitter with a CAT IN CAT cable.
-
Page 9: Ir Pin Definition
5.3 IR Pin Definition IR Receiver IR Blaster IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ±... -
Page 10: Edid Mode
6. EDID Mode The defined EDID setting list of the product is shown as below: EDID Mode EDID Description 11111 1080P, Stereo Audio 2.0 11110 1080P, Dolby/DTS 5.1 11101 1080P, HD Audio 7.1 11100 1080I, Stereo Audio 2.0 11011 1080I, Dolby/DTS 5.1 11010 1080I, HD Audio 7.1 11001... -
Page 11: Ascii Commands
System Setup help! List all commands help! r type! Get device model r type! JTECH-14EX50 Get the unit all status: r status! Get device current status r status! power, in/out connection, edid mode MCU BOOT: Vx.xx.xx r fw version! - Page 12 Command Default Function Description Example Feedback Code Setting Output Setting Enable hdmi loop out Set hdmi loop output stream stream s hdmi stream z! on/off s hdmi stream 1 ! enable Disable hdmi loop z=0~1(0:disable,1:enable) out stream Enable cat output 1 stream Set cat output y stream on/ Disable cat output 1...
- Page 13 Command Default Function Description Example Feedback Code Setting EDID Setting Set input EDID from default EDID z, z=1~26 1, 1080p,Stereo Audio 2.0 2, 1080p,Dolby/DTS 5.1 3, 1080p,HD Audio 7.1 4, 1080i,Stereo Audio 2.0 5, 1080i,Dolby/DTS 5.1 6, 1080i,HD Audio 7.1 7, 3D,Stereo Audio 2.0 8, 3D,Dolby/DTS 5.1 9, 3D,HD Audio 7.1...
-
Page 14: Application Example
8. Application Example DVD or Blu-ray Player UHDTV Power Supply Transmitter LOOP OUT AUDIO OUT HDMI CAT OUTPUT DC 12V Cat 6/6a/7 2.0 Speakers IR Blaster HDMI OUT CAT IN SERVICE IR IN DC 12V Amplifier Receiver IR Receiver UHDTV The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. -
Page 15: Maintenance
9. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzine to clean. 10. Warranty If your product does not work properly because of a defect in materials of workmanship, our company (referred to as “the warrantor”) will, for the length of the period indicated as below, “Parts and Labor (18) Months”, which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. - Page 16 THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTAIL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and from the service, loss of or damage to media or images, data or other recorded content.
- Page 17 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
