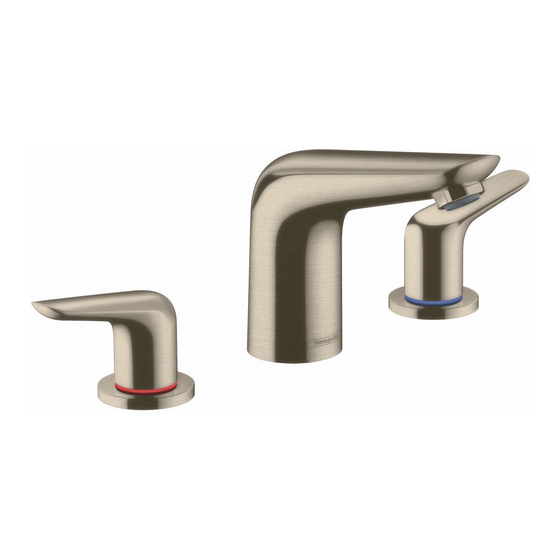

EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía Focus N 71140xx1...
Español Datos tecnicos Presión en servicio recomendada 15 - 75 PSI (0.1 - 0.5 MPa) max. 145 PSI (1 MPa) Temperatura del agua caliente recomendada 120°-140° F (48° - 60° C)* max. 158°F (70° C)* Caudal máximo 1.2 GPM (5.4 L/min) Tamaño del orificio en la superficie de montaje válvulas 1⅛"...
Installation / Installation / Instalación Place the hot and cold valve assemblies on the mounting surface. The hot valve should be on the left, the cold valve on the right. Rest the valve on the mounting surface. cold froid frío Placez les ensembles de valve d’eau chaude et d’eau froide sur la surface de montage.
Page 7
Inspect the alignment of the handles. Vérifiez l’alignement des poignées. Inspeccione la alineación de las manijas. If necessary, rotate the valve. Au besoin, tournez la valve. Si es necesario, gire la válvula.
Page 8
Tighten the nut. Tighten the tensioning screws. Serrez l’écrou. Serrez les vis de pression. 2.2 ft-lb 3 Nm Apriete la tuerca. Apriete los tornillos tensores. Install the drain pull rod on the spout. Position the spout on the mounting surface. Slide the washer over the bolt.
Page 9
Tighten the collar using a screwdriver. Serrez le collier de montage. Apriete el collar de montaje. 5.2 ft-lb 7 Nm Open the quick-connect by pushing it upwards. Ouvrez la douille de raccord rapide en la poussant vers le haut. Abra la conexión rápida empujándola hacia arriba.
Page 10
Insert the connection angle in the spout quick-connect. Insérez le coude de raccordement dans la douille de raccord rapide du bec. Inserte el codo de conexión en la conexión rápida del surtidor. Lock the quick-connect by pulling down on it. Verrouillez la douille de raccord rapide en la tirant vers le bas.
Page 11
Connect the hot and cold supply hoses to the stops. Use two wrenches. Do not allow the supply hoses to twist. Connectez les tuyaux d’arrivée d’eau chaude et d’eau froide aux butées d’arrêt. Servez-vous de deux clés, tel qu'illustre dans le schema.
Page 12
Lock the quick-connect by pushing it toward the con- nection angle. Repeat with the second connection hose. Verrouillez la douille de raccord rapide en la pous- sant vers le coude de raccordement. Répétez l’opération pour le second tuyau de raccordement. Trabe la conexión rápida empujándola hacia el codo.
Page 13
Flush the hot and cold supply lines for at least two minutes. Rincez les conduites d’alimentation d’eau chaude et d’eau froide pendant au moins deux minutes. > 2 min Purgue los suministros de agua caliente y agua fría durante al menos dos minutos. Reinstall the aerator.
Page 14
Installation / Installation / Instalación shorter longer plus court plus long más corto más largo Petroleum-based plumbers putty Les mastics de plomberie à base Masilla de petróleo-basó puede can damage the surface of some de pétrole peuvent endommager dañar la superficie de algún sinks.
Page 15
Replacement Parts / Pièces détachées / Repuestos Focus N 71140xx1 98201000 93199xx0 (14x1.5) 95819000 92956xx0 93198xx0 92907000 (33x2.5) 96657xx0 98932000 95366000 97736000 15 mm 92879xx0 22 mm 98722000 92907000 (33x2.5) 98817000 96016000 11 mm 92913000 (200 mm) 92905000 96321001 92914000 (450 mm) (400 mm) 88509xx0...
Page 16
User Instructions / Instructions de service / Manejo ouvert fermé abierto cerrar cold chaud froid caliente frío...
Page 17
Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it.
Important • Les residus de produits pour le corps comme les savons liquides, shampooings, gels de douche, teintures pour cheveux, parfums, apres-rasage et vernis a ongles peuvent causer des deteriorations. Rincez le produit avec de l’eau propre après chaque utilisation. •...
Page 19
Hansgrohe, Inc. Limited Warranty Offering our customers the highest quality at all times is a funda- • abuse, neglect or improper or incorrectly performed mental part of the Hansgrohe, Inc. company philosophy. We offer installation, maintenance or repair, including the use consumers a limited warranty on our hansgrohe and AXOR of abrasive or caustic cleaning agents or “no-rinse”...
Page 20
TEAR, OUTDOOR USE, MISUSE (INCLUDING USE OF THE This warranty gives you specific legal rights, and you may also PRODUCT FOR AN UNINTENDED APPLICATION), FREEZING have other rights which vary from state to state. WATER, EXCESSIVE WATER PRESSURE, PIPE CORROSION IN PRODUCT I N STRU CTIONS AND QU ESTIONS THE HOME IN WHICH THE PRODUCT IS INSTALLED, ABUSE, NEGLECT OR IMPROPER OR INCORRECTLY PERFORMED...
