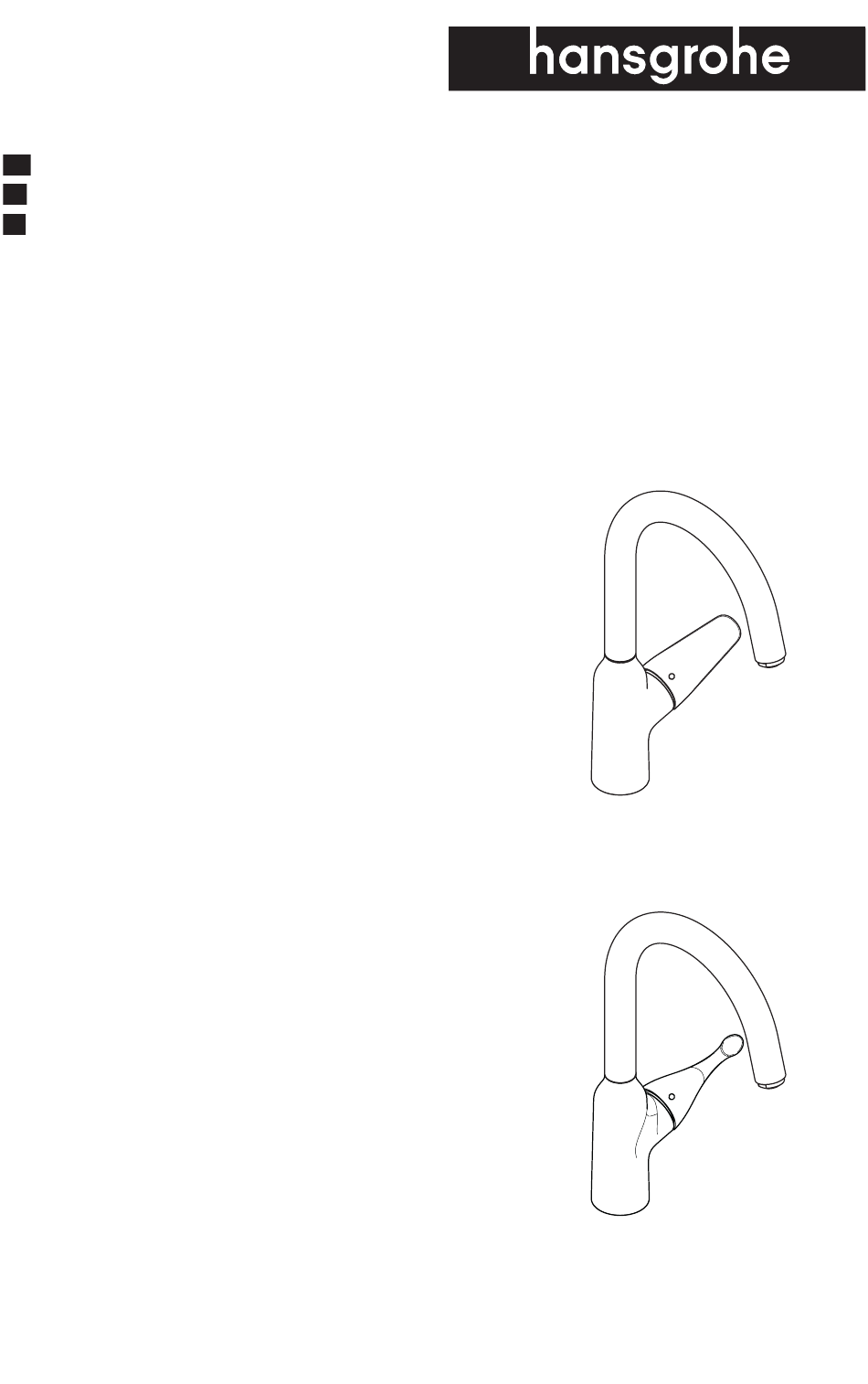

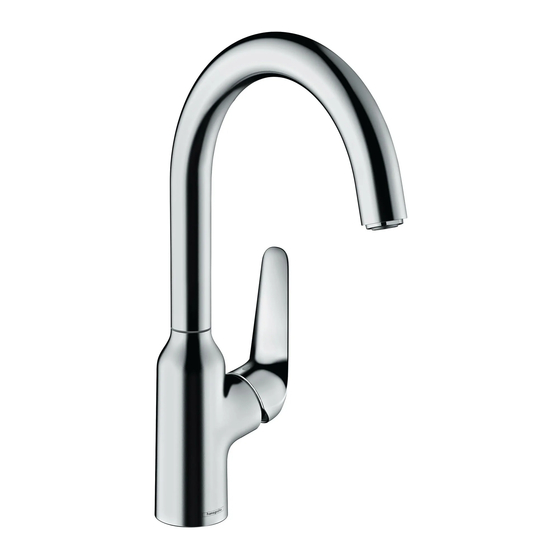

- Page 1 EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía Focus N 71802xx1 Allegro N 71845xx1...
- Page 2 English Français Technical Information Données techniques Water pressure Pression d’eau Recommended 15 - 75 PSI (0.1 - 0.5 MPa) recommandée 15 - 75 PSI (0.1 - 0.5 MPa) Maximum 145 PSI (1 MPa) maximum 145 PSI (1 MPa) Hot water temp. Température d'eau chaude Recommended 120°-140°...
- Page 3 Español Datos tecnicos Tools Required / Outiles Utiles / Herramientas Útiles Presión en servicio recomendada 15 - 75 PSI (0.1 - 0.5 MPa) max. 145 PSI (1 MPa) Temperatura del agua caliente recomendada 120°-140° F (48° - 60° C)* 9 mm max.
- Page 4 Focus N Allegro N 71802xx1 71845xx1 8¹⁄₁₆" (204 mm) 8¹⁄₁₆" (204 mm) 7½" (192 mm) 7½" (192 mm) Ø1⅛" Ø1⅛" (28 mm) (28 mm) 4" (101 mm) 3⅞" (97 mm) 5⅛" (131 mm) 4⅞" (125 mm) 2¾" 2⅝" 3½" 3⅛" (69 mm) (68 mm) (89 mm)
-
Page 5: Installation / Installation / Instalación
Installation / Installation / Instalación 2.2 ft-lb 3 Nm English Français Español Place the faucet and sealing Placez l'anneau d'étanchéite Coloque el oro de sellado y ring on the mounting surface. et le robinet sur la surface de el grifo sobre la superficie de montage. - Page 6 22 mm > 2 min. 1.5 ft-lb 2 Nm English Français Español Connect the hot and cold supply Connectez les tuyaux d'arrivée Conecte las mangueras de sumi- hoses to the stops. d'eau chaude et d'eau froide nistro de agua caliente y fría a aux tuyau d'alimentation.
- Page 7 Set the high temperature limit stop / Réglage de la butée limite d’eau chaude / Ajuste el tope de límite de alta temperatura 140°F 50°F 44 PSI 60° C 10°C 0.3 MPa 97°F (36°C) 100°F (38°C) 109°F (43°C) 122°F (50°C) 140°F (60°C) 131°F (55°C)
- Page 8 Replacement Parts / Pièces détachées / Repuestos Focus N 71802xx1 Allegro N 71845xx1 93496xx0 96338000 93347xx0 96349xx1 93344xx0 98156000 96338000 (36x2) 92646000 97406xx0 98189000 98193000 (14x2.5) (32x2) 93346xx0 97662000 (M40x1.5) 97558000 SW 30 mm 95140000 (M4x20) SW 4 mm 92730000 98396000 (38x2) 98162000...
- Page 9 User Instructions / Instructions de service / Manejo ouvert fermé abierto cerrar cold chaud froid caliente frío...
- Page 10 Cleaning / Nettoyage / Limpieza EcoSmart ® 5 mm 5 mm 3.6 ft-lb 5 Nm...
- Page 11 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it.
- Page 12 Important • Les residus de produits pour le corps comme les savons liquides, shampooings, gels de douche, teintures pour cheveux, parfums, apres-rasage et vernis a ongles peuvent causer des deteriorations. Rincez le produit avec de l’eau propre après chaque utilisation. •...
-
Page 16: Limited Consumer Warranty
Limited Consumer Warranty This warranty is limited to products manufactured by Hansgrohe, conditions in the home such as excessive water pressure Inc. (“Hansgrohe”) that are purchased by a consumer in the United or corrosion. States or Canada after March 1, 1996, and installed in either the Labor and other expenses for disconnection, deinstallation, United States or in Canada.
