USB 2.0+1394
6-Port Bay Hub
Quick Installation Guide

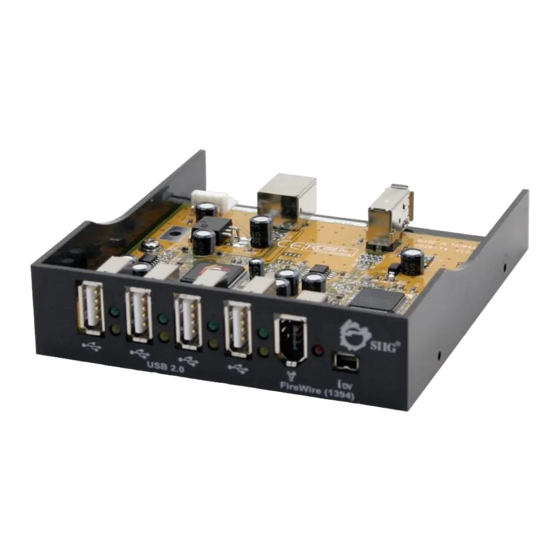

Introducing the USB 2.0+1394 Bay Hub
The USB 2.0+1394 6-Port Bay Hub is designed to support
USB 2.0 and 1394 equipped PC computers. This USB
2.0+1394 combo hub expands USB and 1394 connectivity
to your computer.
Features and Benefits
•
Unique drive bay design adds ports to the front of
your computer for convenient device connection
•
Fits into either 3.5" or 5.25" (with included mounting
rack) drive bay
USB 2.0 Interface:
•
Compliant with USB specification rev. 2.0
•
Provides 4 downstream ports for USB device
connections
•
Supports high-speed (480Mbps),
(12Mbps), and low-speed (1.5Mbps) data transfer
modes
•
Per port over-current detection and protection
•
Supports simultaneous operation of multiple high-
speed USB 2.0 and USB 1.1 devices
•
Hot-swapping feature allows you to attach/detach
USB devices without first powering your computer
off
04-0246B
full-speed
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SIIG USB 2.0+1394 6-Port Bay Hub
Summary of Contents for SIIG USB 2.0+1394 6-Port Bay Hub
- Page 1 6-Port Bay Hub Quick Installation Guide Introducing the USB 2.0+1394 Bay Hub The USB 2.0+1394 6-Port Bay Hub is designed to support USB 2.0 and 1394 equipped PC computers. This USB 2.0+1394 combo hub expands USB and 1394 connectivity to your computer.
-
Page 2: System Requirements
• Works with various types of USB devices including hubs, PC video cameras, printers, scanners, CD- R/Ws, DVD-ROMs, CF/SM/SD/MMC/Memory Stick memory card readers, removable drives, digital cameras, and more Note: USB 1.1 devices are limited to USB 1.1 speeds even when they are connected to a USB 2.0 host adapter or USB 2.0 hub. -
Page 3: Package Contents
Package Contents • USB 2.0+1394 6-Port Bay Hub • (1) 5.25 inch mounting rack • (1) 1394 cable holding bracket (w/rubber holding ring) • (1) 6-pin to 6-pin 1394 cable • (1) USB 2.0 cable • (1) "Y" split power cable •... -
Page 4: Usb Cable Connectors
5.25" Mounting Rack Assembly Important: Use the Mounting Rack Assembly only when installing the hub into a 5.25" drive bay. Figure 2. 5.25" Mounting Rack Assembly USB Cable Connectors Type A connector Type B connector Figure 3. USB Cable Connectors... - Page 5 Installing the USB 2.0+1394 Bay Hub Important: In order for the USB 2.0+1394 6-Port Bay Hub to work properly, the driver of your existing USB 2.0 host adapter and existing 1394 host adapter must be installed properly. Assuming your USB 2.0 and 1394 host adapters are correctly set up with the correct driver, the USB 2.0+1394...
- Page 6 Use the included "Y" split power cable and plug in the mini power connector (same type of power connector used for the floppy drive) to the USB 2.0+1394 6-Port Hub's power connector. Figure 4. Connecting the Power Cable Connect the Type B connector of the USB cable into the USB upstream port (root port) of the USB 2.0+1394 6-Port Hub.
- Page 7 Connect one end of the 1394 cable into the 1394 internal port on the USB 2.0+1394 6-Port Bay Hub. Figure 6. Connecting the 1394 Cable Carefully thread the cables through the drive bay opening then push the hub assembly into the drive bay.
- Page 8 1394 host adapter, use the included 1394 cable holding bracket to route the 1394 cable from the USB 2.0+1394 6-Port Bay Hub to the outside 1394 port. Note: If there is an internal 1394 port on your 1394 host adapter, connect the cable to the internal port.
- Page 9 11. Connect the power connector of the "Y" split power cable to the system power supply. 12. Replace the computer's cover and reconnect the power cord, then turn the system on. 13. When Windows boots up, the USB 2.0+1394 6-Port Bay Hub automatically gets detected and installed.
- Page 10 Blank Page...
-
Page 11: Technical Support
The 5-year manufacturer warranty supplied with this product is offered by SIIG, Inc. If you should happen to encounter any problems with this product, please follow the procedures below. - Page 12 Fremont, CA 94538-3152 USB 2.0+1394 6-Port Bay Hub is a trademark of SIIG, Inc. SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Pentium is a registered trademark of Intel Corporation.
