- Page 1 P063GUI001 - User guide eCelsius Performance Connect.1 - EN T ELE ME TRI C S YS TE M FOR CONT INUOUS C O R E T E MP ERATURE MONITO RING USER GUIDE...
- Page 2 P063GUI001 - User guide eCelsius Performance Connect.1 - EN...
-
Page 3: Table Of Contents
P063GUI001 - User guide eCelsius Performance Connect.1 - EN I N DE X 1. PRECAUTIONS FOR USE 2. USE CLAIMS AND CONTRAINDICATIONS Use claims Contraindications and warnings Risk and complications 3. SYSTEM INTRODUCTION eCelsius Performance capsule The activator The button The LED e-Perf Connect device The buttons... - Page 4 P063GUI001 - User guide eCelsius Performance Connect.1 - EN Automatic synchronization of data stored in the capsule memory Capsule end of life vizualization Capsule desassociation Secondary functions ID capsules vizualization Markers Capsule pause mode Old capsule vizualization - archives Data exportation ePerf Connect battery management optimization End of monitoring application ePerf Connect device turn off...
- Page 5 Performance Connect system. This solution is manufactured by BodyCAP. This user guide aims to present the caracteristics and the way of working of the solution and to support you in the installation and the use of the device. A proper use of the solution does not imply specific training or skills;...
-
Page 6: Precautions For Use
P063GUI001 - User guide eCelsius Performance Connect.1 - EN The system is designed for Non-Medical uses only. The application fields of medical diagnosis and therapeutics in patients are excluded. 1. PRECAUTIONS OF USE The following safety instructions ensure proper operation and will optimize the use of the eCelsius Performance Connect system. - Page 7 P063GUI001 - User guide eCelsius Performance Connect.1 - EN Do not put the device as unsorted municipal waste. The ePerf Connect device and the activator have been designed to allow a reuse and a suitable recycling of some components. The symbol representing a waste container with a cross indicates that the product (electrical equipment, electronic and pill and / or battery) should not be put in municipal waste.
-
Page 8: Use Claims And Contraindications
P063GUI001 - User guide eCelsius Performance Connect.1 - EN 2. USE CLAIMS AND CONTRAINDICATIONS USE CLAIMS The eCelsius Performance Connect system is an electronic device for non-medical uses only. The device is designed for continuous human gastrointestinal temperature measurement. The level of accuracy of the system, in comparison with the absolute temperature value, is ±0.2°C. The temperature data resolution is 0.01°C. -
Page 9: Risk And Complications
P063GUI001 - User guide eCelsius Performance Connect.1 - EN Risks: • The eCelsius Performance capsule has to be swallowed by the subject with a drink of water, special attention must be paid to the risk of taking a ‘‘wrong way’’, especially in people who have or have had swallowing disorders. -
Page 10: System Introduction
P063GUI001 - User guide eCelsius Performance Connect.1 - EN 3. SYSTEM INTRODUCTION eCelsius Performance capsule Figure 1: eCelsius Performance capsule Figure 2: Signaletic bracelet The capsule eCelsius Performance (Fig. 1) is intented to be swallowed, with a glass of water. It has to be woken up by the activator and associated to the ePerf Connect device to monitor core temperature. -
Page 11: The Led

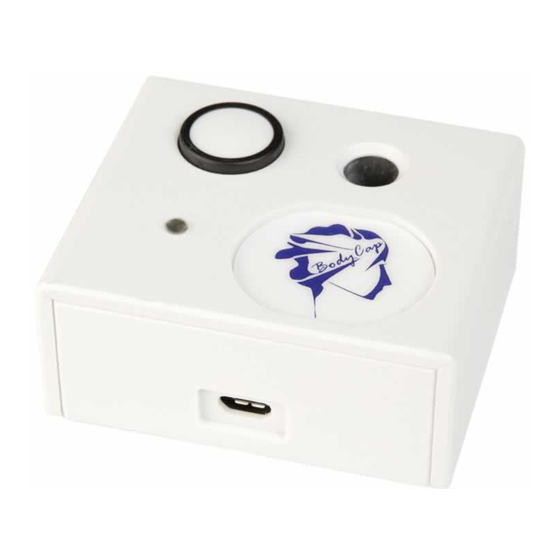

P063GUI001 - User guide eCelsius Performance Connect.1 - EN THE LED A green LED is positioned on the upper side of the activator. This LED is continuously switched on when the activator is powered and flashes throughout the activation process. When the LED is flashing, the activation process is running. -
Page 12: The Battery
P063GUI001 - User guide eCelsius Performance Connect.1 - EN THE BATTERY Information The device integrates a Lithium-ion rechargeable batttery. It is strictly FORBIDDEN to disassemble the device and to replace the rechargeable battery under penalty to irreparable damage on the system and security failures. -
Page 13: Eperf Connect Screen Information
P063GUI001 - User guide eCelsius Performance Connect.1 - EN ePERF CONNECT SCREEN INFORMATION The informations available on the screen of the device are the following: Pause mode activated with at least 1 capsule (the symbol disappears when the Pause mode is deactivated) Loss of communication of more than 5 minutes on at least 1 capsule (the symbol disappears when the communication est restored for all the capsules) -
Page 14: E-Perf Mobile Application
Connect device is provided turn off. To turn on the device, please make a long pression on the button 1 (on the side of the device - BodyCAP side). This process turn on the screen of the device. If the screen does not turn on, connect the ePerf Connect device to a power source and try again few minutes later. -
Page 15: Main View Of The Application
P063GUI001 - User guide eCelsius Performance Connect.1 - EN To install ePerf Mobile, please: - Launch the Android Play Store - Search the ePerf Mobile application from BodyCAP Company - Before to launch ePerf Mobile application, please ensure that the options Bluetooth & Localization are activated - During the first use of the application you have to authorize the application to access to the position of the device. -
Page 16: Main Functions
P063GUI001 - User guide eCelsius Performance Connect.1 - EN 2- Association of an available ePerf Connect: You may then select an existing ePerf Connect device or pair a new device to the ePerf Mobile application. To pair a new device, you have to make a long press on the up button (bouton 2) until the message ‘‘Associat. -
Page 17: Capsule Association
P063GUI001 - User guide eCelsius Performance Connect.1 - EN • Operational canal It allows to select the operational canal that aims to be used for the coming recording session. This is an advanced parameter, limiting the interferences between several ePerf Connect device operating in the same environment. This parameter is not modifiable anymore once capsules are associated to the ePerf Connect device. -
Page 18: Capsule Ingestion
If the ePerf Connect device is worn as a wristwatch, the sense is not relevant but to have more comfort to read the time, we may recommand to place the BodyCap logo on the arm side and not on the hand side. -
Page 19: Consult Temperature Graphics
P063GUI001 - User guide eCelsius Performance Connect.1 - EN The information related to the main screen are the following: - The profile name (BODYCAP) - BLE connexion status active/inactive (connected) - The last data collected (36.75°C) with the capsules associated... -
Page 20: Automatic Synchronization Of Data Stored In The Capsule Memory
P063GUI001 - User guide eCelsius Performance Connect.1 - EN On the upper side of the screen, you may visualize several information related to each capsule: - The minimum temperature value for the capsule (since the last reset) - The maximum temperature value for the capsule (since the last reset) - The number of missing data between the capsule and the ePerf Connect device - The time elapse (hh:mm:ss) since the last real time data communication... -
Page 21: Secondary Functions
P063GUI001 - User guide eCelsius Performance Connect.1 - EN SECONDARY FUNCTIONS ID CAPSULES VISUALIZATION It is possible to access to the unique ID of the capsule going on ePerf Mobile application and then access to the ePerf Connect parameters (‘‘Nut’’ logo at the bottom of the android device). -
Page 22: Capsule Pause Mode
P063GUI001 - User guide eCelsius Performance Connect.1 - EN CAPSULE PAUSE MODE It is possible that one or several capsules have been activated at the same time to cover consecutive inges- tion. It exists, for this case, a specific mode that consists to put the capsule that is not of immediate interest in Pause mode. -
Page 23: Data Exportation
P063GUI001 - User guide eCelsius Performance Connect.1 - EN DATA EXPORTATION It is possible to export the data: - During acquisition: simply go to the graphic visualization screen of the capsule concerned or the ’’All’’ tab of the application and click on the export button. -A posteriori in the archive area: in the archives, select the capsules of interest and click on the export button. -
Page 24: End Of Monitoring Application
P063GUI001 - User guide eCelsius Performance Connect.1 - EN END OF MONITORING - APPLICATION At the end of the monitoring period with ePerf Mobile and once your capsules are deactivated from the profile, several options are available to properly close your session. Please go to the device settings: Separate the profile and the device: This action can be performed:... -
Page 25: Eperf Connect Update
P063GUI001 - User guide eCelsius Performance Connect.1 - EN ePERF CONNECT DEVICE UPDATE It is possible to turn off the ePerf Connect device using the ePerf Mobile application. To do so, please go to the device settings (see paragraph above) and press the corresponding button.The device has to be connected to the application. -
Page 26: Technical Data
P063GUI001 - User guide eCelsius Performance Connect.1 - EN 5. TECHNICAL DATA eCELSIUS PERFORMANCE CAPSULE CHARACTERISTICS Dimensions: Lenght: 17.7 mm Diameter: 8.9 mm Weight: ≈ 1.7 g. Temperature range: 25°C - 45°C Accuracy of temperature sensor: ± 0.1°C in the range 36-41°C (physiologic range), ± 0.13°C out of the physiologic range Température resolution: 0.01°C Capsule memory capacity: the 2000 last temeprature values are stored into the capsule internal memory... - Page 27 P063GUI001 - User guide eCelsius Performance Connect.1 - EN ACTIVATOR CHARACTERISTICS Dimensions: Lenght: 69 mm Width: 59 mm Height: 31 mm Weight: ≈ 62 g. Power: Main power supply unit (100 ~ 240 V) or PC via USB (5 V) Power consumption: ≈...
- Page 28 P063GUI001 - User guide eCelsius Performance Connect.1 - EN Life time: 2 years (or around 500 recharge cycles). Means to disconnect from the main supply: Unplug the power cable ENVIRONMENTAL CONDITIONS In operation - Humidity between 30 and 80% of relative humidity - Atmospheric pressure between 800hPa and 1060hPa - Ambiant temperature between 5 and 40°C Storage and/or transportation...
-
Page 29: Failures Guide
P063GUI001 - User guide eCelsius Performance Connect.1 - EN 6. FAILURES GUIDE Issue Probable cause Solution The battery of the ePerf Connect Connect the ePerf Connect to a power source via is discharged the dedicated cable The ePerf Connect device is at ePerf Connect The manufacturing date is on the label. -
Page 30: Symbols
P063GUI001 - User guide eCelsius Performance Connect.1 - EN 7. SYMBOLS « Do not reuse » « Batch code » « Catalog reference » « Manufacturer address ». The symbol is associated to the year of the manufac- turing date for the ePerf Connect device and Activator (format AAAA), and to the month and the year of the capsule manufacturing (format AAAA-MM) «... - Page 31 P063GUI001 - User guide eCelsius Performance Connect.1 - EN « Compliant with FCC regulation » « Forbidden under 18 years old » « Electronic user guide » « Non-ionising electromagnetic radiation » « Keep out of reach for children » «...
- Page 32 For any questions concerning the system operation that is not included into the user guide, please contact BodyCAP Team BodyCAP 3, rue du Docteur Laënnec 14200 Hérouville Saint Clair FRANCE +33 (0)2 61 53 03 29 contact@bodycap-medical.com www.bodycap-medical.com...
