It is possible to export the data:
- During acquisition: simply go to the graphic visualization screen of the capsule concerned or
the ''All'' tab of the application and click on the export button.
-A posteriori in the archive area: in the archives, select the capsules of interest and click on
the export button.
The possible data export formats are PDF (full graphical representation of temperature data) or CSV
(raw data). The file is stored in the Android device memory (documents / profile) and available for trans-
fer by email.

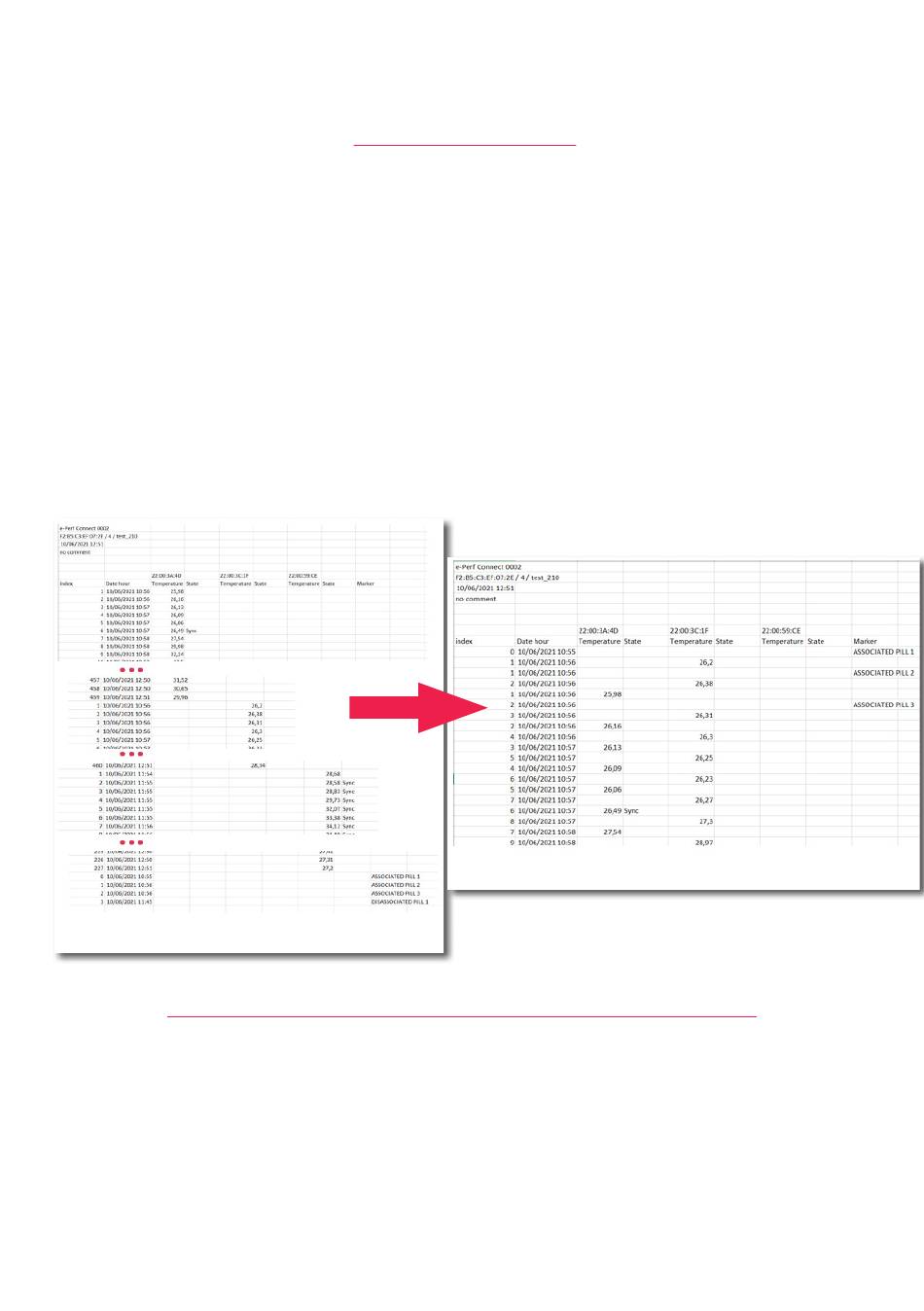

The CSV file presents the data of each capsule in different columns but the date / time column is com-
mon. The data are initially sorted by capsules. However, it is possible to sort them in chronological order.
To do so, please select all the dates of the capsules concerned, then ''Sort by date'' and ''Extend the
selection'' to the columns of data.

ePerf Connect BATTERY MANAGEMENT OPTIMIZATION

The ePerf Connect device is optimized for an RF communication with 1 to 3 capsules simultaneously.
However, if a capsule is removed or stay away from the ePerf Connect device (capsule not swallowed for
instance), a visual alert (LED) will trigger and the ePerf Connect device will try to restore the RF commu-
nication with the capsule(s) concerned by activating more regularly the radio functionnalities.
That is why, it is recommended to deactivate a capsule for which the removal has been observed and
to put in ''Pause mode'' a capsule that has not been yet swallowed. That will allow to limit the power
consumption and improve the automy of the ePerf Connect device.
P063GUI001 - User guide eCelsius Performance Connect.1 - EN

DATA EXPORTATION

Sort by date
