BodyCAP e-CELSIUS Performance User Manual
Telemetric system for gastrointestinal temperature monitoring
Hide thumbs
Also See for e-CELSIUS Performance:
- Quick start manual (12 pages) ,
- Quick start manual (9 pages) ,
- Quick start manual (12 pages)
Related Manuals for BodyCAP e-CELSIUS Performance
Summary of Contents for BodyCAP e-CELSIUS Performance

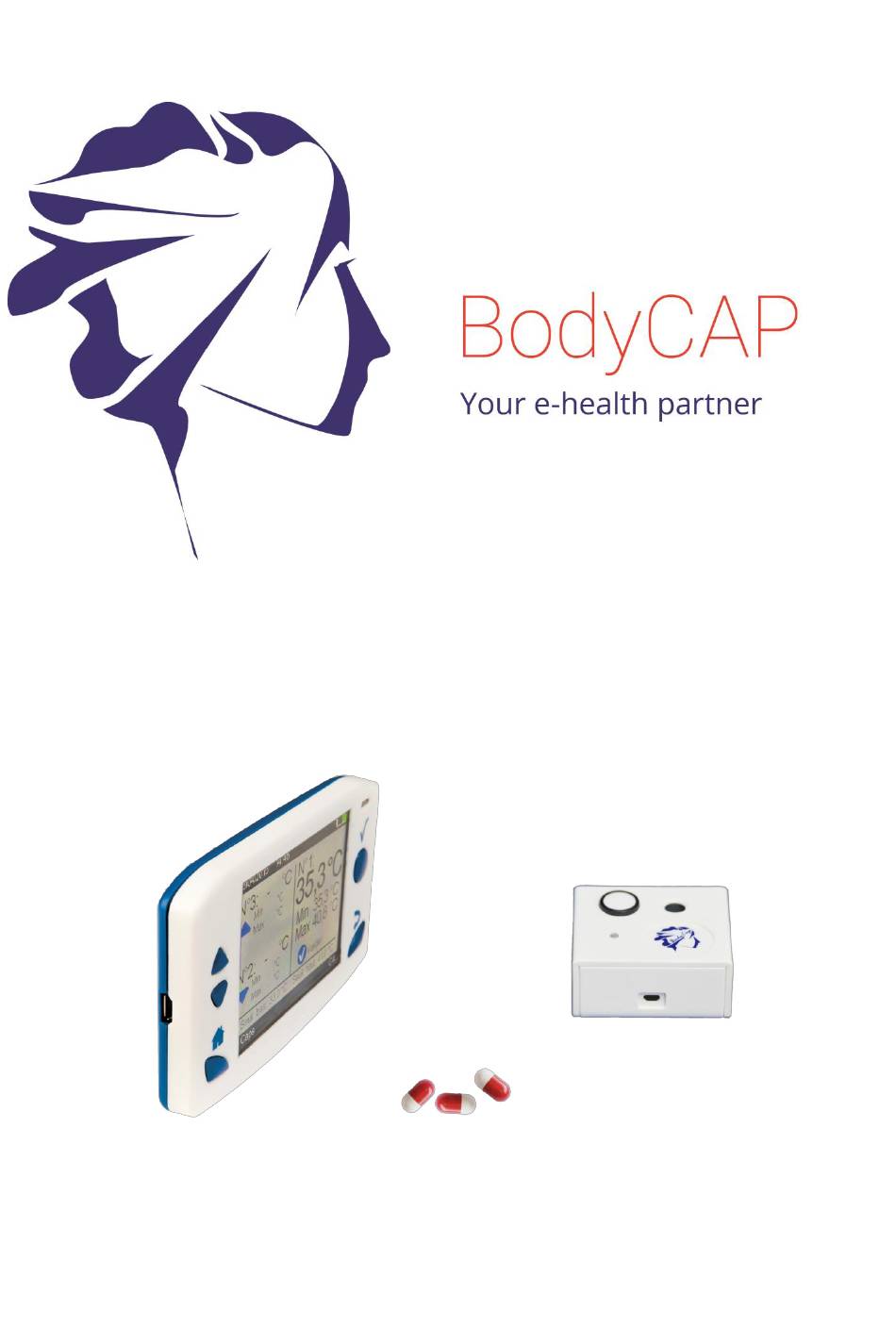

- Page 1 User Guide ® e-CELSIUS Performance Telemetric system for gastrointestinal temperature monitoring Jan. 2017 Before use, please read entirely theses instructions...
-
Page 2: Table Of Contents
User Guide e-CELSIUS Performance.2 Index Precautions for use ..............4 Use claims and contraindications ..........5 Use claims ..................5 Contraindications and Warnings ............6 First use .................. 6 Installation of e-Performance Manager Software ......6 Implementation of the device ............7 ®... - Page 3 Equipment specifications ............32 9.1.1 Manufacturer Information ................32 e-Performance Manager – Required configuration ........32 9.1.2 9.1.3 e-Celsius Performance pill technical data: ..........32 9.1.4 Activator technical data: ................33 9.1.5 e-Viewer Performance technical data: ............34 9.1.6 Power Supply technical data: ............... 35 Failures guide ...............
-
Page 4: Precautions For Use
Monitor and e-Celsius performance capsules are manufactured by the company BodyCap. This manual is designed to introduce the features and operation of your system and to support you installing and using this product. The use of this device does not require training or specific skills; however, please read these instructions carefully and keep it handy in order to refer to it whenever you need. -
Page 5: Use Claims And Contraindications
User Guide e-CELSIUS Performance.2 USB cable and the adapter supplied with Take care to not shake or strike the monitor the system. and the Activator. This could affect their normal way of working. Do not use a damaged micro-USB cable or power adapter. -
Page 6: Contraindications And Warnings
User Guide e-CELSIUS Performance.2 The system is designed for non-medicals uses. It is designed for physiological monitoring in order to optimise sports performances or to improve knowledge of human physiology. The device must not be used for diagnosis or therapeutic uses in patients. -
Page 7: Implementation Of The Device
PC / MAC e-Performance Manager software, you have to install the PC / MAC e-Performance Manager software and the BodyCap drivers (provided on the USB stick). At the end of the installation, the monitor and the PC / Mac software will automatically interface. - Page 8 User Guide e-CELSIUS Performance.2 ® Picture 2: Start screen of e-Performance Manager At the opening of the second window (Picture 3: Tabs to configure the monitor), several tabs allow to configure the monitor before using. At any instant of the configuration, you may consult the instructions by clicking on the tab "User guide"...
- Page 9 User Guide e-CELSIUS Performance.2 The slide Bar “Number of synchronized data” (or number setting zone) allows to set the number of data to recover into memory of the associated pills, after a communication disruption. The monitor will automatically synchronize the missing data, into the range of the setting value. The synchronization always starts with the oldest missing data and finish with the most recent.
-
Page 10: The E-Celsius Performance Capsule
Manager ) allows to import from one to three translation files on the monitor. User can choose its preferred language on the monitor by clicking on "Apply". Different language files are available on the website www.bodycap-medical.com. (This list is regularly updated). To replace the selected language among the three options stored on the monitor, please visit the menu "Monitor"... -
Page 11: The Activator
User Guide e-CELSIUS Performance.2 5 The Activator ® The Activator is intended to activate the capsule e-Celsius before a recording session. Hole to place the capsule Button OK verte Micro-USB connector Picture 8: Description of the Activator The buttons The button OK is used to launch the activation process. -
Page 12: The Buttons

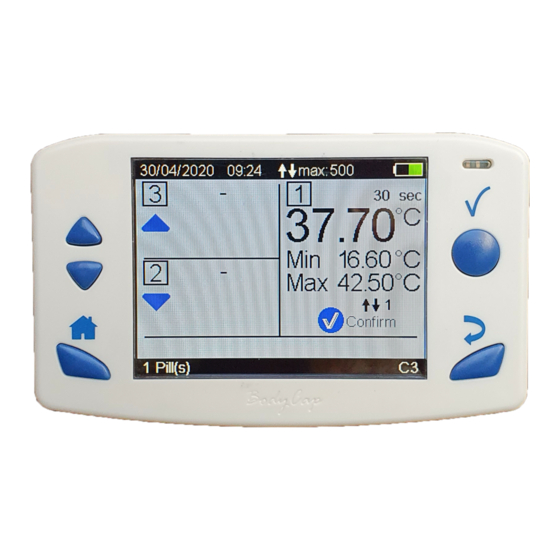

User Guide e-CELSIUS Performance.2 Micro-USB connector Picture 9: Description of the e-Viewer® performance monitor The buttons The monitor has got 6 buttons; the features are described below. 5 are placed around the screen and 1 on the right side: Validate (ref. 1 Picture 9: Description of the e-Viewer® performance monitor) The button Validate is used to confirm the information and to go to the menu. -
Page 13: The Leds
User Guide e-CELSIUS Performance.2 This button allows navigate in the menu. Arrow down (ref. 5 Picture 9: Description of the e-Viewer® performance monitor) This button allows to navigate in the menu. Sleep/wake-up (ref. 6 Picture 9: Description of the e-Viewer® performance monitor) The button sleep-wake of the screen allows to switch on or off the screen. -
Page 14: Connection
User Guide e-CELSIUS Performance.2 ® Please do not forget to charge e-Viewer performance monitor at the end of those 36h under penalty. If the battery reaches a critical level, the system will turn into an energy saving mode. After charging, press simultaneously the buttons “Home”... -
Page 15: Monitor Interface Menu
The battery level of the monitor (e.g. the top right of the screen) The operating channel of the monitor (e.g. C2) A field corresponding to a patient identification (e.g. BODYCAP Subject) The number of capsules associated (e.g. Caps 0) ®... - Page 16 User Guide e-CELSIUS Performance.2 To validate a menu and to move to a submenu, press the button OK (§ 6.1). To come back, press the button Back (§ 6.1). To return directly to the temperature display, press the button Home (§ 6.1).
- Page 17 User Guide e-CELSIUS Performance.2 Frequency configuration: Allows to modify the measurement period of the associated pills Monitor menu Monitor menu is used to manage the monitor configuration (Picture 14: Monitor menu). Picture 14: Monitor menu Date and Time: Allows to set time zone, date and time Channel: Allows to set the channel.
-
Page 18: Main Functions
User Guide e-CELSIUS Performance.2 Add a marker: Allows to add an event marker which will appear in the graph available on e-Performance Manager software and the data file when exporting. Min/max reset: Allows to reinitialize the data display for min and max... -
Page 19: Activate A Pill
User Guide e-CELSIUS Performance.2 Think about recording the working channel of each monitor; in case of breakage or failure, this information will be needed to launch the monitor replace procedure (cf. §7.2.1). 6.7.3 Activate a pill Note: Before pill activation, please check the monitor's operating channel, the date and time and the number of data to synchronize. -
Page 20: Consult Temperature Data In Real Time
User Guide e-CELSIUS Performance.2 If the LED of the activator stops flashing and the message "Error! Would you like to restart an activation " appears on the monitor screen, please check the ® positioning of the e-Celsius performance capsule in the hole of the Activator ®... -
Page 21: Detailed Temperature Data Visualization
User Guide e-CELSIUS Performance.2 6.7.5 Detailed temperature data visualization To access to a detailed visualization, select the capsule by positioning it in the right of the screen. Then press the OK button, a new screen appears with the following information: Picture 20: Detailed visualization screen of a capsule The number of the selected capsule (from 1 to 3). - Page 22 User Guide e-CELSIUS Performance.2 number of data to synchronize can’t exceed 2000 since the memory of the capsule is limited to 2000 data. In the case the pill emits the data every 30s, the communication between the capsule and the associated monitor has to be restored within a maximum period of 15 hours.
-
Page 23: Visualization Of The End-Of-Life Of The Capsule
User Guide e-CELSIUS Performance.2 Data synchronization is significantly slowed in two cases: - When the display mode "Visualizing data" temperature is set (Picture 19: Home screen menu of data ) - When the display mode "Detailed Data visualization of a capsule" (Picture 20: Detailed visualization screen of a capsule) is set In order to optimize data recovery, we recommend to leave the display mode. -
Page 24: Deactivation Of A Pill
User Guide e-CELSIUS Performance.2 6.7.10 Deactivation of a pill After usage, just go to the menu "Pill" (Picture 13: Pill menu) of the monitor and in the submenu "Deactivation pill" (Picture 24: Menu of the monitor to deactivate a ) select the capsule to stop and press OK. -
Page 25: Low Battery
User Guide e-CELSIUS Performance.2 The monitor is in power supply mode. In this case, the screen is constantly switched on without user action. The monitor displays data temperature screen. This screen is very important for subject monitoring. In this case, the monitor does not automatically go into standby. -
Page 26: E-Performance Manager Software
To use the e-Viewer performance monitor with e-Celsius performance Manager software, you must install the application and the BodyCap drivers (provided on the USB key BodyCap). When the installation in completed, the monitor and the application may automatically interface. 7.1.1 Unload and consult the temperature data on the e -Performance Manager software On the main screen of the e-Performance Manager software, select the menu "Unloading"... -
Page 27: Markers From The E-Viewer Performance Monitor
User Guide e-CELSIUS Performance.2 Picture 26: Picture of the curves obtained on the e-performance Manager software after the data unloading. It is possible to move on the graph by keeping key Alt pressed and clicking the left mouse button while sliding it from the left to the right. -
Page 28: Hide Markers
User Guide e-CELSIUS Performance.2 After an event “monitor switch off/extinction”, it needs to put the monitor in charge and to set a correct date and time. After validation of the date and time on the monitor, the radio communication with the capsules will get back and the data synchronization will begin. To indicate this event, a marker “monitor wake-up”... -
Page 29: Secondary Functions
User Guide e-CELSIUS Performance.2 Picture 28: CSV information At the end of the file, you can find the list of automatic and manual markers. Secondary functions 7.2.1 Backup mode When the operation of the monitor is disturbed (failure, broken, …), it is possible to recover the communication with capsule which was associated first;... - Page 30 User Guide e-CELSIUS Performance.2 Picture 29: Tab "backup mode" Validate the start of the mode by clicking "Enable backup mode". The following window appears: Picture 30: Research activated capsules Enter the ID number of the capsules you want to recover. (§ 6.7.3) The order of capsules does not matter.
-
Page 31: Cables And Power Supply
User Guide e-CELSIUS Performance.2 To exit the replace mode, you have to disassociate the capsules of the monitor (§ 6.7.9) and download the data via the e-Performance Manager software. Note: To exit the recovery mode, connect the monitor to a PC with the cables provided by the ®... -
Page 32: Equipment Specifications
Windows 7 or operating systems Microsoft compatibles (32 or 64 bits), Mac OS X (10.9 Lion) or ulterior. The screen resolution has to be at minima 1024x768. 9.1.3 e-Celsius Performance pill technical data: 9.1.3.1 Characteristics Dimensions: Length: 17.7 mm. Diameter: 8.9 mm. -
Page 33: Activator Technical Data
User Guide e-CELSIUS Performance.2 Communication ISM Band 433MHz - 434MHz frequency: Plastic: Biocompatible PVC. Storage life: Refer to the expiry date printed on the package. 9.1.3.2 Environmental conditions: In operation o temperatures in the range 0 - 50°C o Ingress Protection (IP): X8 (Material supporting prolonged immersion) Storage and/or transport ®... -
Page 34: E-Viewer Performance Technical Data
User Guide e-CELSIUS Performance.2 Storage and/or transport o humidity between 30 and 80% of relative humidity, o atmospheric pressure between 800hPa and 1060hPa o ambient temperature conditions between 0 and 35°C. o avoid sprayed water o protect from exposure to sunlight. -
Page 35: Power Supply Technical Data
User Guide e-CELSIUS Performance.2 9.1.6 Power Supply technical data: 9.1.6.1 Characteristics: Brand: GLOBTEK (HONG KONG) LTD Frequency range: 50/60Hz Input voltage: 100-240V Output voltage: 5V Input current: 0.2A Output current: 1A 10 Failures guide Tableau 3 : Failures guide Problem... -
Page 36: Symbols
User Guide e-CELSIUS Performance.2 The connection between the The monitor may require a monitor and the PC/MAC do not Return to the manufacturer maintenance action work. The green LED of the monitor Check the power supply does not switch on or blink. - Page 37 User Guide e-CELSIUS Performance.2 "Date of production" “Follow the instruction of use”...
- Page 38 User Guide e-CELSIUS Performance.2...
