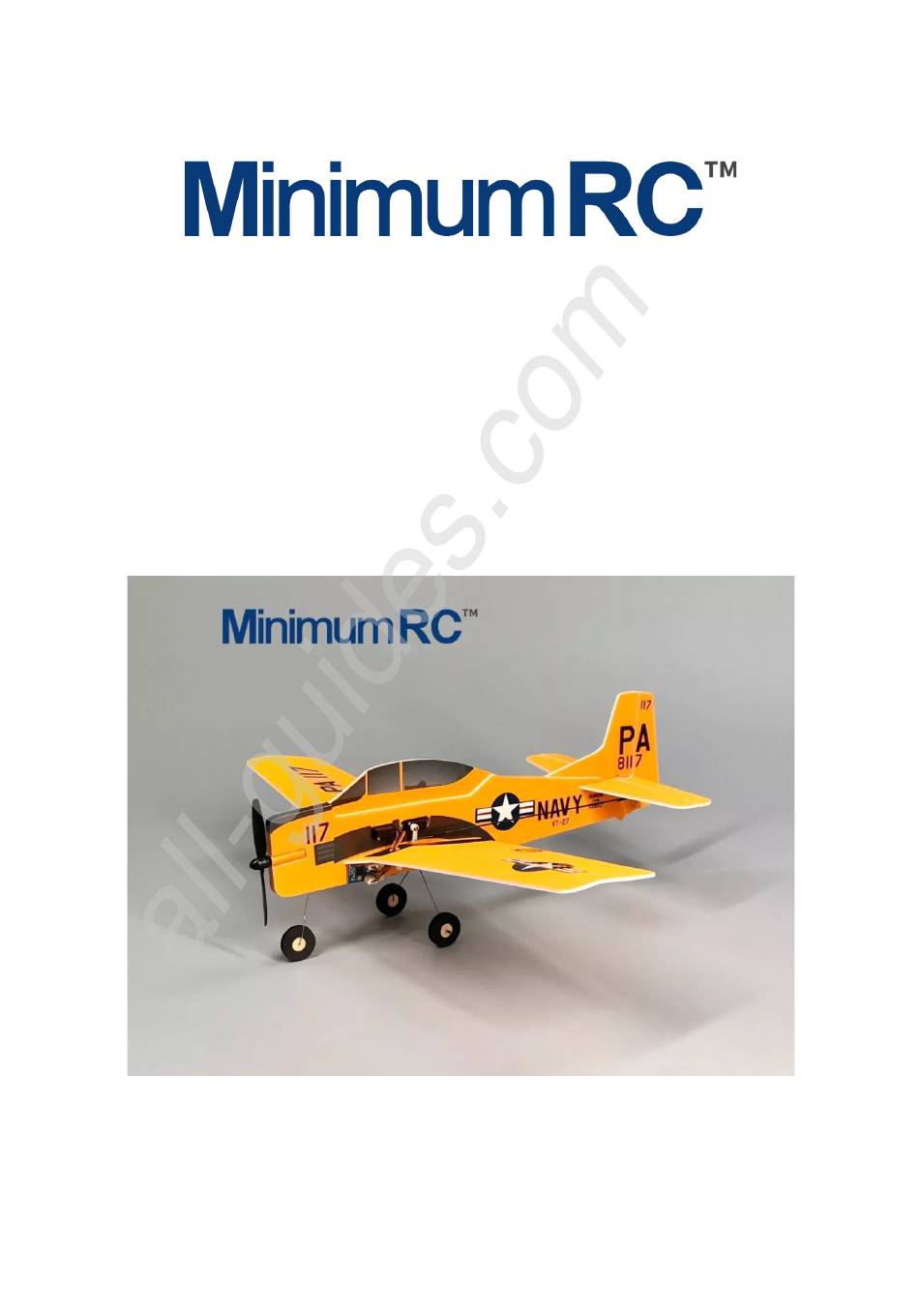

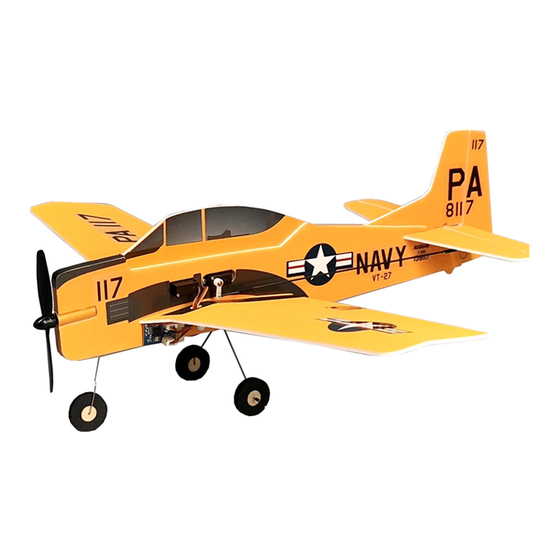

- Page 1 All manuals and user guides at all-guides.com T-28 Trojan Assembly Instructions...
- Page 2 All manuals and user guides at all-guides.com 1. Paste the fuselage paint sticker and cut off the rudder parts. 2. Connect the rudder to the fuselage with paint sticker. Note that the distance between the rudder surface and the fuselage plate is 1mm.
- Page 3 All manuals and user guides at all-guides.com 3. Installing the servo base（plywood）.
- Page 4 All manuals and user guides at all-guides.com 4. Paste fuselage coated stickers and assemble fuselage panels. 5. After assembling the fuselage panels, paste the hatch cover stickers.
- Page 5 All manuals and user guides at all-guides.com 6. Coating paper coated motor. 7. Install the motor and paste the front landing gear steel wire according to the carved position.
- Page 6 All manuals and user guides at all-guides.com 8. After the motor wire passes through the hole in the middle of the fuselage, the bottom of the fuselage is filled. 9. Fixed main landing gear steel wire and base with screw.
- Page 7 All manuals and user guides at all-guides.com 10. Installation of main landing gear base. 11. Installation of wing support.
- Page 8 All manuals and user guides at all-guides.com 12. Cut off the elevator and connect with the hinge patch. (the patch is better fixed with glue). Note that there is a 1 mm gap between the rudder and the tail plate. 13.
- Page 9 All manuals and user guides at all-guides.com 14. Bend the wing along the notch. 14.Installation of the wing.
- Page 10 All manuals and user guides at all-guides.com 15.Reinforce the wing with φ1mm carbon rods. 16.Installation of the control horns.
- Page 11 All manuals and user guides at all-guides.com 17.Installation of the servos.
- Page 12 All manuals and user guides at all-guides.com 18.Connect the pushrod clips & pushrods with heat shrinkable tube and fix them with glue.
- Page 13 All manuals and user guides at all-guides.com 19.Installation of the pushrods.
- Page 14 All manuals and user guides at all-guides.com 20. Combination of core and tire.
- Page 15 All manuals and user guides at all-guides.com 21.Use heat shrinkable tube to hold the wheels. 22.Attach the receiver to the fuselage with Velcro.
- Page 16 ·The amount of elevator and rudder is 5 mm for each side. Please adjust the rudder surface to the level before flight test. Explore the ultimate possibility of airplane kits MinimumRC.COM...
