TKH security PD1022v2 Quick Start Manual

PD1022v2

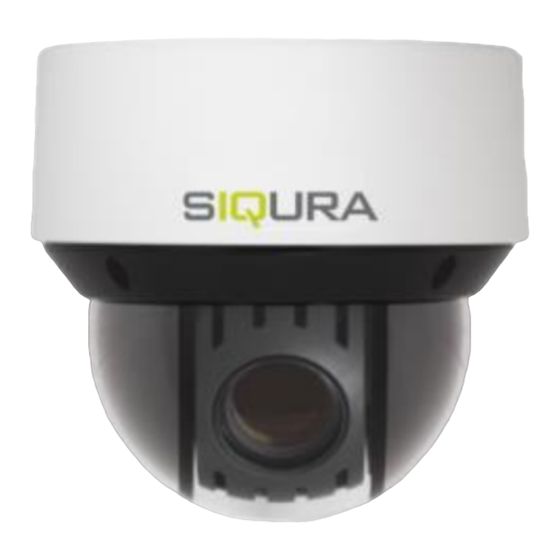

2MP Network PTZ Dome Camera
Quick Start Guide

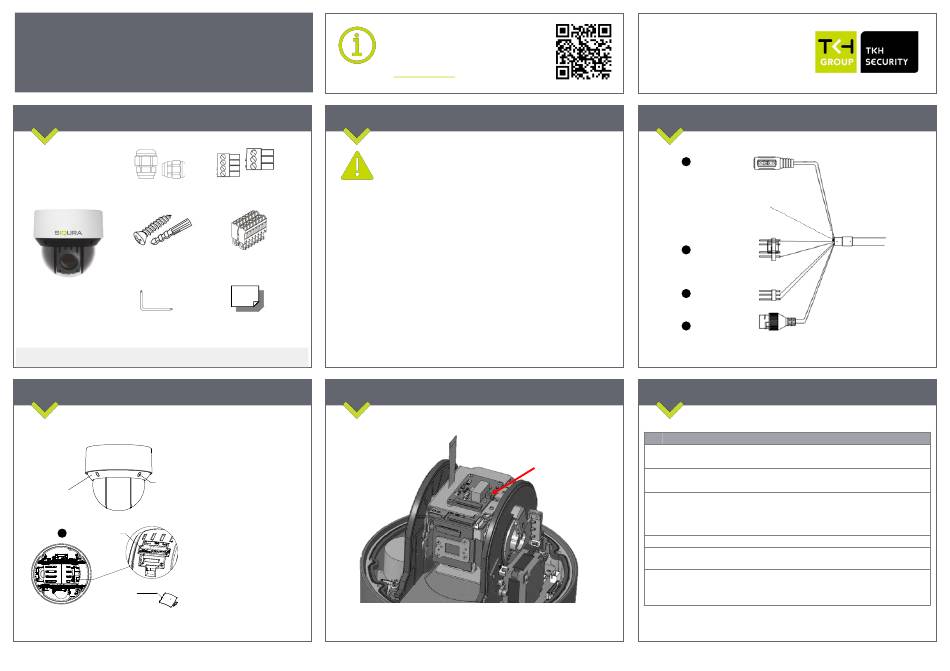

Unpack

Gland Sets
Screws(4x) &
Plastic Screw
Anchors (4x)
Camera Unit
Security Torx
Subject to modification. Actual product and accessories may differ in appearance.
SD Card & Default
Remove the silicon plug and
unscrew 4x to remove cover
Silicone Plug
Decorative Rim
5
Memory Card Slot
Remove memory card cover
and insert Micro
SD/SDHC/SDXC up to
128GB / Jusqu'à 128 GO
Memory Card Cover
© TKH Security B.V. 2021 | Vision 1 (20210921) | PD1022v2 QSG
Combi-connector 3-
pin(2x), 4-pin(1x)
14-pin Alarm/Audio
I/O terminal block
Quick Start Guide
Find additional manuals, the
datasheet, the EU Declaration of
Conformity, and the latest firmware
for this product at:
tkhsecurity.com

Installation Notices

CAUTION INSTALLATION SHALL BE PERFORMED BY
QUALIFIED PERSONNEL ONLY. INSTALLATION SHALL BE IN
ACCORDANCE WITH LOCAL PROCEDURES. THE CAMERA
CONTAINS BATTERIES. DO NOT REPLACE IN RISK OF
EXPLOSION.
BATTERY REPLACEMENT SHALL NOT BE APPLIED IN VIEW
OF THE RISK OF EXPLOSION. LE REMPLACEMENT DES
PILES NE DOIT PAS ÊTRE APPLIQUÉ AU
D'EXPLOSION. DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS. METTRE AU REBUT
BATTERIES USAGÉES CONFORMÉMENT
INSTRUCTIONS..
FOR "PoE" INPUT CONNECTION, USE ONLY WITH UL
LISTED I.T.E WITH "PoE" OUTPUT. DESCRIPTION FOR THE
"PoE" IS INTENDED TO BE CONNECTED TO NOT EXPOSED
(OUTSIDE PLANT) NETWORKS OR EQUIVALENT
STATEMENT IN INSTALLAION INSTRUCTIONS.
POUR LA CONNEXION DâÇÖENTREE "PoE", UTILISER
UNIQUEMENT AVEC UN I.T.E. LISTE AVEC UNE SORTIE
"PoE". LA DESCRIPTION DE "POE" EST CONÇUE POUR
ÊTRE CONNECTÉE À DES RÉSEAUX OR NON ÉNONCÉS
(INSTALLATIONS EXTÉRIEURES), DANS
INSTRUCTIONS D'INSTALLATION DE L'INSTALLATION.

Default Button

Press the button with a proper
tool for at least 20 seconds to
restore the system.
Figure 3 – Position of default button

Connectors

1
Power (DC12V)
Ground
RISQUE
LES
AUX
Alarm in
2
Alarm Out
3
Audio I/O
RJ-45 Port
4
802.3at PoE+
Figure 1 Camera Connectors
LES

Camera Cabling

No. Connector
1 Alarm I/O
2 Audio I/O
RJ-45 Port
(Contact Siqura for a
3
compatible PoE
injecter.)
4 Power(DC 12V)
5 Reset Button
6 Micro SD Card Slot
Table 1 Connector definition
Definition
Alarm I/O connection
Line In and Line Out connection
For network and PoE connections
Power Connection
Press the button with a proper tool for at
least 20 seconds to restore the system.
Insert the SD card into the card slot to store
videos and snapshots. Do not remove the
SD card when the camera is powered on.
