TKH security PD980 Quick Start Manual

PD980

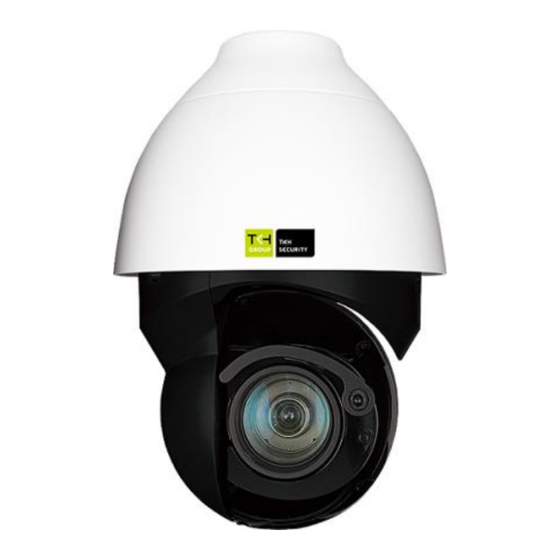

8MP Pendant PTZ Camera
Quick Start Guide

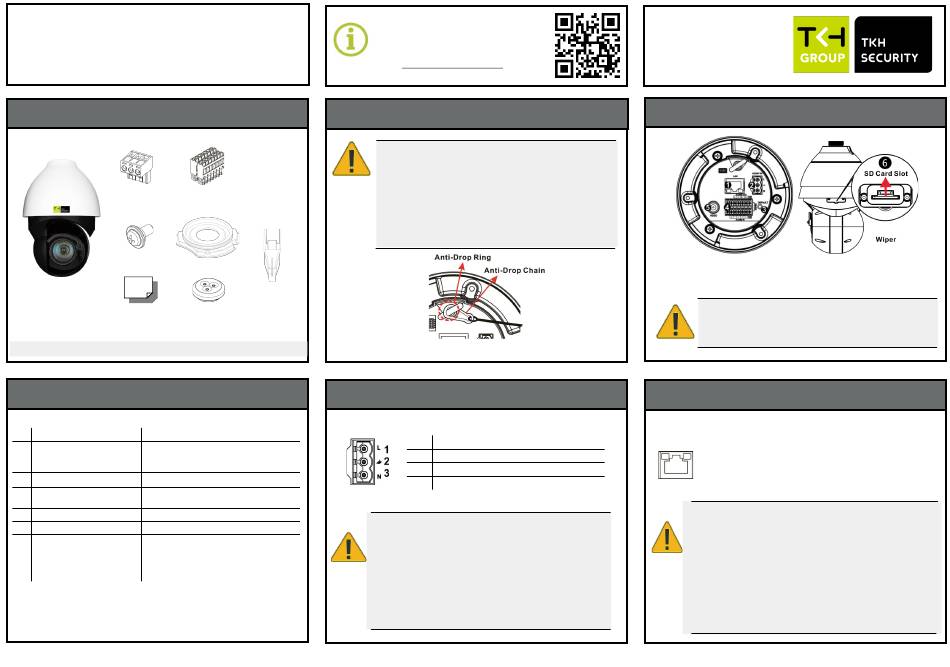

Unpack

3-pin power
14-pin Alarm/Audio I/O
terminal block
terminal block
(AC24V use)
M4 security screw
Grommet holder
with rubber
Camera Unit
Quick Start Guide
Note 1: Subject to modification. Actual product and accessories may differ in appearance.

Connector Definition

No. Connector Definition
RJ-45 Port
1 (Contact TKH Security for a For network and PoE (802.3bt) connections
compatible PoE injector.)
2 Power (AC24V) AC24V power connection
Press the button with a proper tool for at
3 Reset Button
least 20 seconds to restore the system.
4 Audio/Alarm I/O & RS-485 Audio/Alarm I/O & RS-485 connection
5 BNC For analog video output
Insert the SD card into the card slot to
store videos and snapshots. Do not
6 SD Card Slot
remove the SD card when the camera
is powered on.
Table 1 Connector Definition
© TKH Security B.V. 2022-2023 | Version 1.4 (20230623) | PD980 QSG
RJ45
insertion
Grommet
tool
Power Connector (AC 24V)
NOTE: In some cases, an ethernet crossover cable may be needed when
connecting the camera directly to the pc. Check the status of the link indicator
and the activity indicator LEDs. If the LEDs are unlit, check the LAN connection.
NOTE: Do not replace batteries of the camera. Risk of explosion may
occur if the battery is replaced by an incorrect type.
NOTE: Leaving a camera in an extremely high temperature surrounding
environment can result in an explosion or the leakage of flammable liquid
or gas.
NOTE: Camera subjected to extremely low air pressure may result in an
explosion or the leakage of flammable liquid or gas.
NOTE: The means of power cord of adapter should be connected to a
socket-outlet with earthing connection.
Find additional manuals, the datasheet,
the EU Declaration of Conformity, and
the latest firmware for this product at:
https://tkhsecurity.com/

Installation Notices

CAUTION:
Installation shall be performed by qualified personnel only.
Installation shall be in acccordance with local procedures.
Installation with poe shall be in unexposed networks.
Battery replacement shall not be applied in view of the risk of explosion.
If you use an external power supply, contact TKH Security to make sure that the
power supply has the proper power specifications.
Make sure that the power supply complies with LPS requirements.
When installing the camera, hook up the camera with the anti-drop chain of the
pendant to the anti-drop ring (see figure 1). For more information, contact TKH
Security.
Figure 1 Position anti-drop ring and anti-drop chain

Camera Cabling (1)

Pin Definition
1 AC24V L
2 GND
3 AC24V N
Table 3 Pin definition for AC24V power connection
Connectors
Figure 2 Camera Connectors
For the connector definitions, see table 1.
NOTE:
It is not recommended to continuously (24/7) record with the micro-SD card, as
the camera may not support long-term continuous data read/write. Contact the
manufacturer of the micro-SD card for information regarding the reliability and
the life expectancy.

Camera Cabling (2)

PoE and Ethernet cable connection
❑ The green link LED is lit when there is a good network
connection.
❑ The orange network LED flashes to indicate that there is
network activity.
WARNING: For "PoE" input connection, use only with UL listed I.T.E. with "PoE"
output. Description for the "PoE" is intended to be connected to not exposed
(outside plant) networks or equivalent statement in installation instructions.
POWER RATING: 24VAC, 50-60Hz, 3.26A shall be supplied by power adapter. 55VDC,
0.93A shall be supplied by "PoE" (802.3bt type 3 class 6).
NOTE: Explosion may occur due to disposal of a battery into fire or a hot
oven, or mechanically crushing or cutting of a battery.
NOTE: The wiring of input terminal block should be installed by skilled
personnel.
NOTE: Use wire size ranging from 16 to 24 AWG (and wire type: Cu)
ONLY.
NOTE: The recommended tightening torque is 0.5 N-m.
NOTE: Use of controls or adjustments of performance or procedures other than
those specified herein may result in hazardous radiation exposure.
