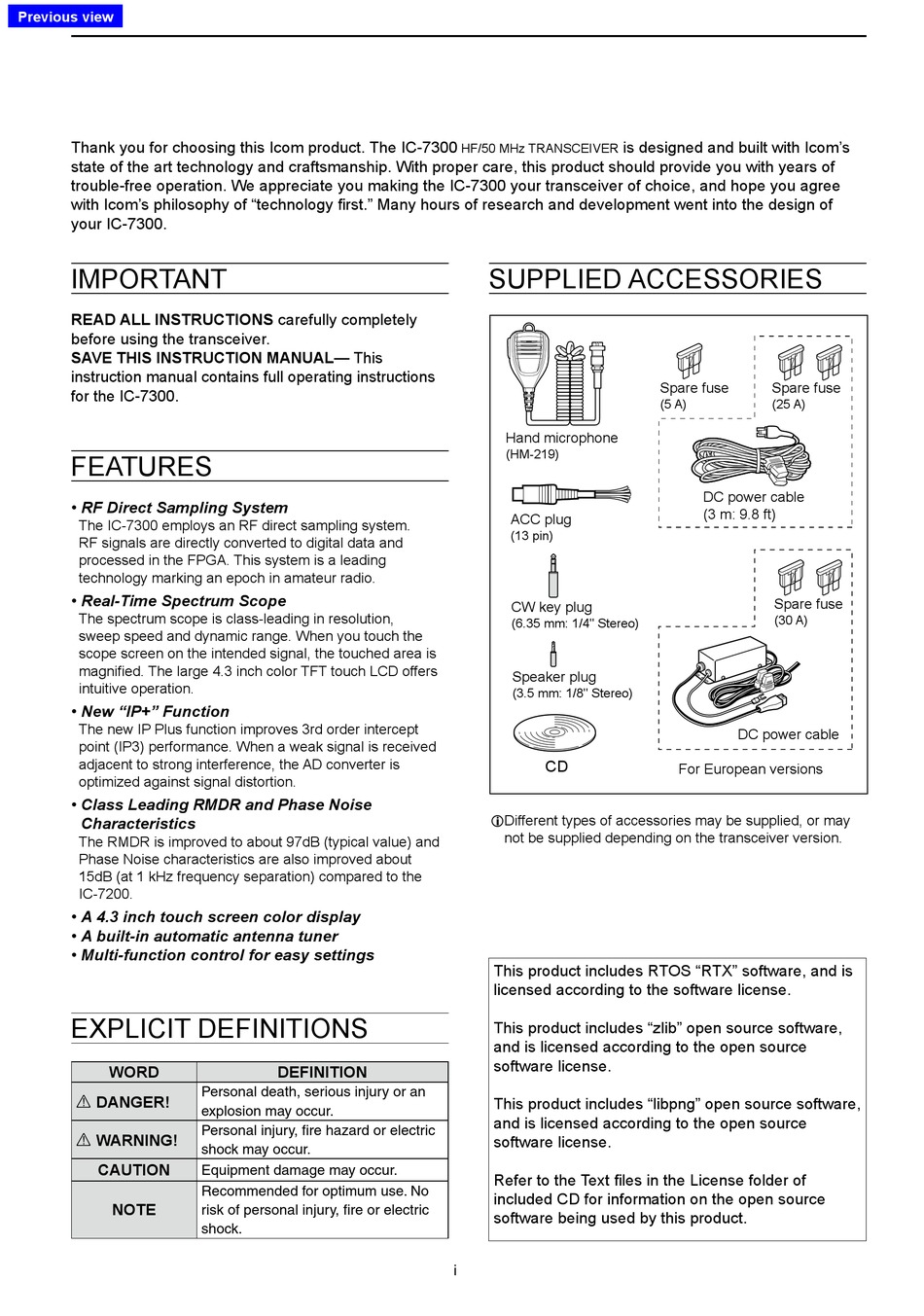

Thank you for choosing this Icom product. The IC-7300
state of the art technology and craftsmanship. With proper care, this product should provide you with years of
trouble-free operation. We appreciate you making the IC-7300 your transceiver of choice, and hope you agree
with Icom's philosophy of "technology first." Many hours of research and development went into the design of
your IC-7300.
IMPORTANT
READ ALL INSTRUCTIONS carefully completely
before using the transceiver.
SAVE THIS INSTRUCTION MANUAL— This
instruction manual contains full operating instructions
for the IC-7300.
FEATURES
• RF Direct Sampling System
The IC-7300 employs an RF direct sampling system.
RF signals are directly converted to digital data and
processed in the FPGA. This system is a leading
technology marking an epoch in amateur radio.
• Real-Time Spectrum Scope
The spectrum scope is class-leading in resolution,
sweep speed and dynamic range. When you touch the
scope screen on the intended signal, the touched area is
magnified. The large 4.3 inch color TFT touch LCD offers
intuitive operation.
• New "IP+" Function
The new IP Plus function improves 3rd order intercept
point (IP3) performance. When a weak signal is received
adjacent to strong interference, the AD converter is
optimized against signal distortion.
• Class Leading RMDR and Phase Noise
Characteristics
The RMDR is improved to about 97dB (typical value) and
Phase Noise characteristics are also improved about
15dB (at 1 kHz frequency separation) compared to the
IC-7200.
• A 4.3 inch touch screen color display
• A built-in automatic antenna tuner
• Multi-function control for easy settings

EXPLICIT DEFINITIONS

WORD
R DANGER!
R WARNING!
CAUTION
NOTE
DEFINITION
Personal death, serious injury or an
explosion may occur.
Personal injury, fire hazard or electric
shock may occur.
Equipment damage may occur.
Recommended for optimum use. No
risk of personal injury, fire or electric
shock.
is designed and built with Icom's
HF/50 MHz TRANSCEIVER

SUPPLIED ACCESSORIES

Hand microphone
(HM-219)
ACC plug
(13 pin)
CW key plug
(6.35 mm: 1/4" Stereo)
Speaker plug
(3.5 mm: 1/8" Stereo)
CD
L Different types of accessories may be supplied, or may
not be supplied depending on the transceiver version.
This product includes RTOS "RTX" software, and is
licensed according to the software license.
This product includes "zlib" open source software,
and is licensed according to the open source
software license.
This product includes "libpng" open source software,
and is licensed according to the open source
software license.
Refer to the Text files in the License folder of
included CD for information on the open source
software being used by this product.
i
Spare fuse Spare fuse
(5 A) (25 A)
DC power cable
(3 m: 9.8 ft)
Spare fuse
(30 A)
DC power cable
For European versions
