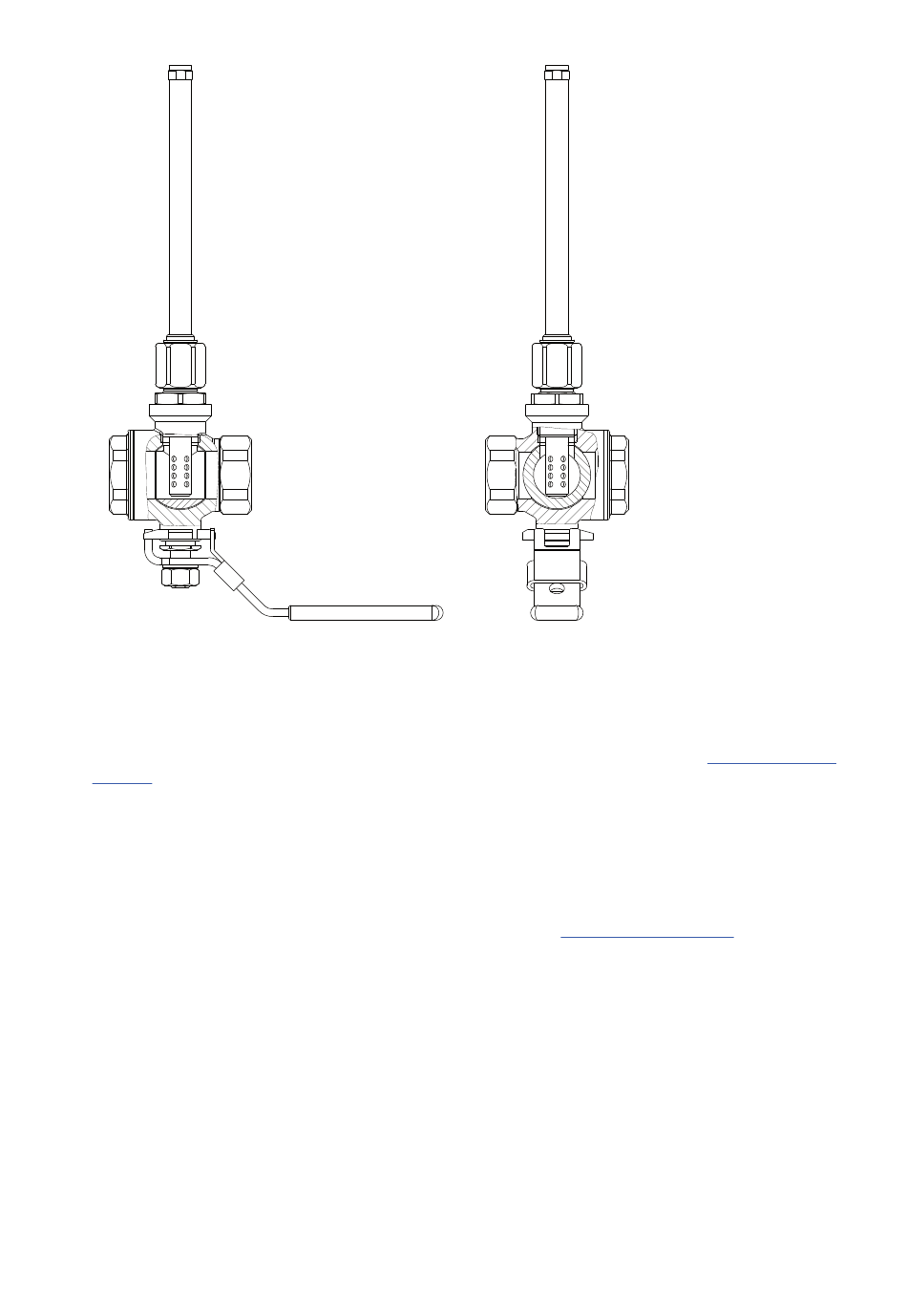

Fig. 7 Sampling cell with shut-off function position "open" (left) and position "closed" (right)
5
Setup and Adjustment
The MOP301 is ready to use and does not require any configuration by the user. The factory setup of
MOP301 corresponds to the type number ordered. Please refer to the data sheet at
mop301. The user can change the factory setup with the help the PCS10 Product Configuration Software
and the Modbus configuration adapter (order code HA011018). Refer to chapter 5.1 below.
5.1
PCS10 Product Configuration Software
The PCS10 provides a convenient graphical user interface to the MOP301. To use the software for
performing adjustments and changes in settings, please proceed as follows:
1. Download the PCS10 Product Configuration Software from
install it on the PC.
2. Connect the MOP301 to the PC using the Modbus configuration adapter.
3. Start the PCS10 software.
4. Follow the instructions on the PCS10 opening page for scanning the ports and identifying the
connected device.
5. Click on the desired setup or adjustment mode from the main PCS10 menu on the left. Follow the
online instructions of the PCS10 which are displayed when clicking the "Tutorial" button.
6. Changes are uploaded to the probe by pressing the "Sync" button.
User Manual MOP301 Digital Moisture in Oil Immersion Probe
Type T10 in sampling cell
with shut-off function
