- Page 1 User Manual MOP301 Digital Moisture in Oil Immersion Probe up to 120 °C (248 °F)
- Page 2 User Manual MOP301 Content General Information ............................3 Explanation of Warning Notices and Symbols .................... 3 Safety Instructions ............................. 4 1.2.1 General Safety Instructions ..........................4 1.2.2 Intended Use ..............................4 1.2.3 Mounting, Start-up and Operation ........................5 Environmental Aspects..........................5 Scope of Supply ..............................
- Page 3 All rights reserved by E+E Elektronik Ges.m.b.H. No part of this document may be reproduced, published or publicly displayed in any form or by any means, nor may its contents be modified, translated, adapted, sold or disclosed to a third party without prior written permission of E+E Elektronik Ges.m.b.H.
- Page 4 The MOP301 is dedicated for reliable and accurate monitoring of lubrication, hydraulic and insulation oils as well as diesel fuel. In addition to highly accurate measurement of water activity (aw) and temperature (T), the MOP301 calculates the absolute water content (x) in ppm.
- Page 5 1.2.3 Mounting, Start-up and Operation The MOP301 moisture in oil probe has been produced under state of the art manufacturing conditions, has been thoroughly tested and has left the factory after fulfilling all safety criteria. The manufacturer has taken all precautions to ensure safe operation of the device.
- Page 6 3 Product Description General The MOP301 is a robust probe for moisture in oil and temperature measurement. Its IP66 rating and the E+E proprietary sensor leads protection make it ideal for highest requirements. It features a moisture in oil measuring range of 0...1 aw, a temperature measuring range of -40...120 °C (-40...248 °F) and a 20 bar (290 psi) pressure...
- Page 7 The manufacturer cannot be held responsible for personal injuries or damage to property as a result of incorrect handling, installation, wiring, power supply and maintenance of the device. The relations of electrical potential between a bus system and an MOP301 probe are characterized by the following properties: ▪...
- Page 8 NOTICE ▪ If the MOP301 is installed in equipment with moving parts, e.g. in gears, it has to be ensured that the probe does not touch any of these parts. ▪ In moving oil, the mechanical stress on the probe is minimized by placing only the filter cap into the flow.
- Page 9 ±40 °C (±72 °F) from the regular temperature during normal operation. NOTICE Replace the metal sealing ring (refer to Fig. 3 Installation of the MOP301 probe directly into the process) by a new one every time before re-installing the probe.

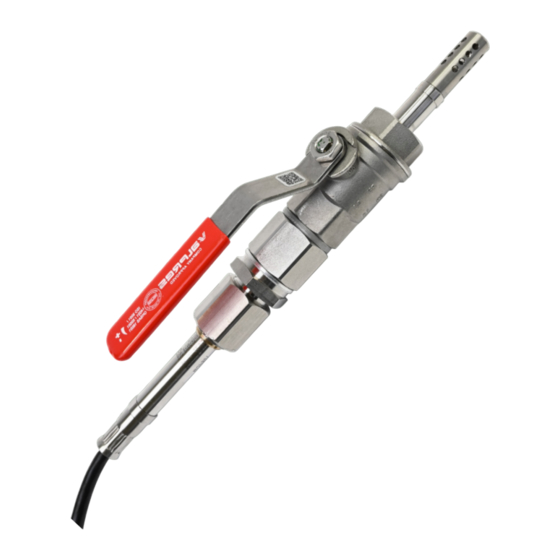

- Page 10 User Manual MOP301 Probe Installation with Ball Valve The ball valve allows for installation and removal of the probe without process interruption. For mounting into the pipe, the ball valve shall be installed perpendicular to the flow direction. INFO There are ball valves available as accessory with G 1/2" thread (order code HA050101) and with 1/2" NPT thread (order code HA050104).
- Page 11 Sampling Cell with Shut-off Function The sampling cell with shut-off function is designed for placing a MOP301 in a bypass oil sampling or as well directly into the process. In both cases, the sampling cell could be moved into the oil flow or in service position by interupting the oil flow.
- Page 12 Sampling cell with shut-off function position “open” (left) and position “closed” (right) 5 Setup and Adjustment The MOP301 is ready to use and does not require any configuration by the user. The factory setup of MOP301 corresponds to the type number ordered. Please refer to the data sheet at www.epluse.com/mop301. The user can change the factory setup with the help the PCS10 Product Configuration Software and the Modbus configuration adapter (order code HA011018).
- Page 13 User Manual MOP301 NOTICE The MOP301 may not be connected to any additional power supply when using the Modbus configuration adapter HA011018. HA011018 Fig. 6 MOP301 connected to a PC running PCS10 Besides an individual probe naming, the communication parameters may be changed and the custom Modbus map can be configured.
- Page 14 1) Register number (decimal) starts from 1. 2) Register address (hexadecimal) starts from 0. 3) Number of registers 4) For Modbus protocol settings see Application Note Modbus AN0103 (available on www.epluse.com/mop301). 5) Please refer to chapter 5.5 Device Status Indication. Tab. 2...
- Page 15 4) Examples: For scale 100, the reading of 2550 means a value of 25.5. For scale 50, the reading of 2550 means a value of 51. Tab. 3 MOP301 FLOAT32 and INT16 measured data registers Digital Moisture in Oil Immersion Probe | 15...
- Page 16 User Manual MOP301 Configurable Custom Modbus Map It is possible to map measured value/status registers arbitrarily in a block with up to 20 registers provided for this purpose. This means that registers of interest may be mapped in an area with consecutive registers, so that important values can be queried with a single command in one block.
- Page 17 Please refer to ▪ MODBUS APPLICATION PROTOCOL SPECIFICATION V1.1b3, chapter 6: www.modbus.org/docs/Modbus_Application_Protocol_V1_1b3.pdf ▪ E+E Application Note Modbus AN0103 (available at www.epluse.com/mop301) Read the temperature (FLOAT32) T = 26.66048812866211 °C from register address 0x3EA: Master (e.g. PLC) MOP301 Request [Hex]: Modbus...
- Page 18 User Manual MOP301 Read register from custom modbus map address 0x0BB8-0x0BB9, unconfigured Request [Hex]: Modbus Function Starting Starting Qty. of Qty. of address code address Hi address Lo registers Hi registers Lo Response [Hex]: Modbus Function Byte Register 1 Register 1...
- Page 19 Data representation according to IEEE754 6 Maintenance and Service The MOP301 does not require any special maintenance, nevertheless for high accurate measurements especially over wide aw and T ranges it is recommended to calibrate the probe every 12 months. If needed, the enclosure may be cleaned and the device may be re-adjusted as described below.
- Page 20 (comparison with a reference) or adjustment (bringing the device in line with a reference). The MOP301 can be calibrated / adjusted with the help of the PCS10. For this purpose, the probe needs to be connected to a PC via a Modbus configuration adapter.
- Page 21 User Manual MOP301 7 Accessories For further information please refer to the Accessories datasheet. Accessories Code Modbus configuration adapter HA011018 E+E Product Configuration Software PCS10 (Free download: www.epluse.com/pcs10) Humidity calibration kit See data sheet Humidity Calibration Kit M12 Y adaptor...
- Page 22 User Manual MOP301 Output Digital Digital interface RS485 (MOP301 = 1 unit load) Protocol Modbus RTU Factory settings 9 600 Baud, parity even, 1 stop bit, Modbus address 70 Supported Baud rates 9 600, 19 200, 38 400, 57 600, 76 800 und 115 200 Measured data types FLOAT32 and INT16 General Power supply class III 8 - 35 V DC USA & Canada: Class 2 supply necessary, max.
- Page 23 User Manual MOP301 9 Conformity Declarations of Conformity E+E Elektronik Ges.m.b.H. hereby declares that the product complies with the respective regulations listed below: European directives and standards. UK statutory instruments and designated standards. DNV (Det Norske Veritas) maritime type approval.
- Page 24 T +39 02 2707 86 36 info.it@epluse.com E+E Elektronik Korea Ltd. T +82 31 732 6050 info.kr@epluse.com E+E Elektronik Corporation T +1 847 490 0520 info.us@epluse.com BA_MOP301 | Version v2.0 | 08-2024 © Copyright E+E Elektronik Ges.m.b.H. | All rights reserved.
