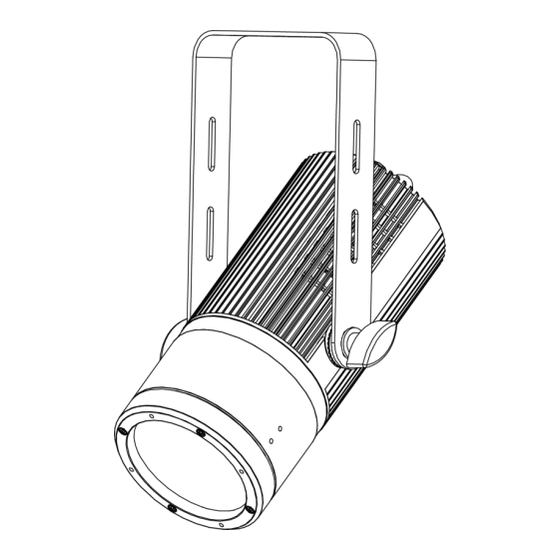

MoonLite 80 HEX
USER MANUAL
LEDPAR340

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MoonLite 80 HEX and is the answer not in the manual?

Questions and answers

Related Manuals for ShowPro MoonLite 80 HEX

Summary of Contents for ShowPro MoonLite 80 HEX

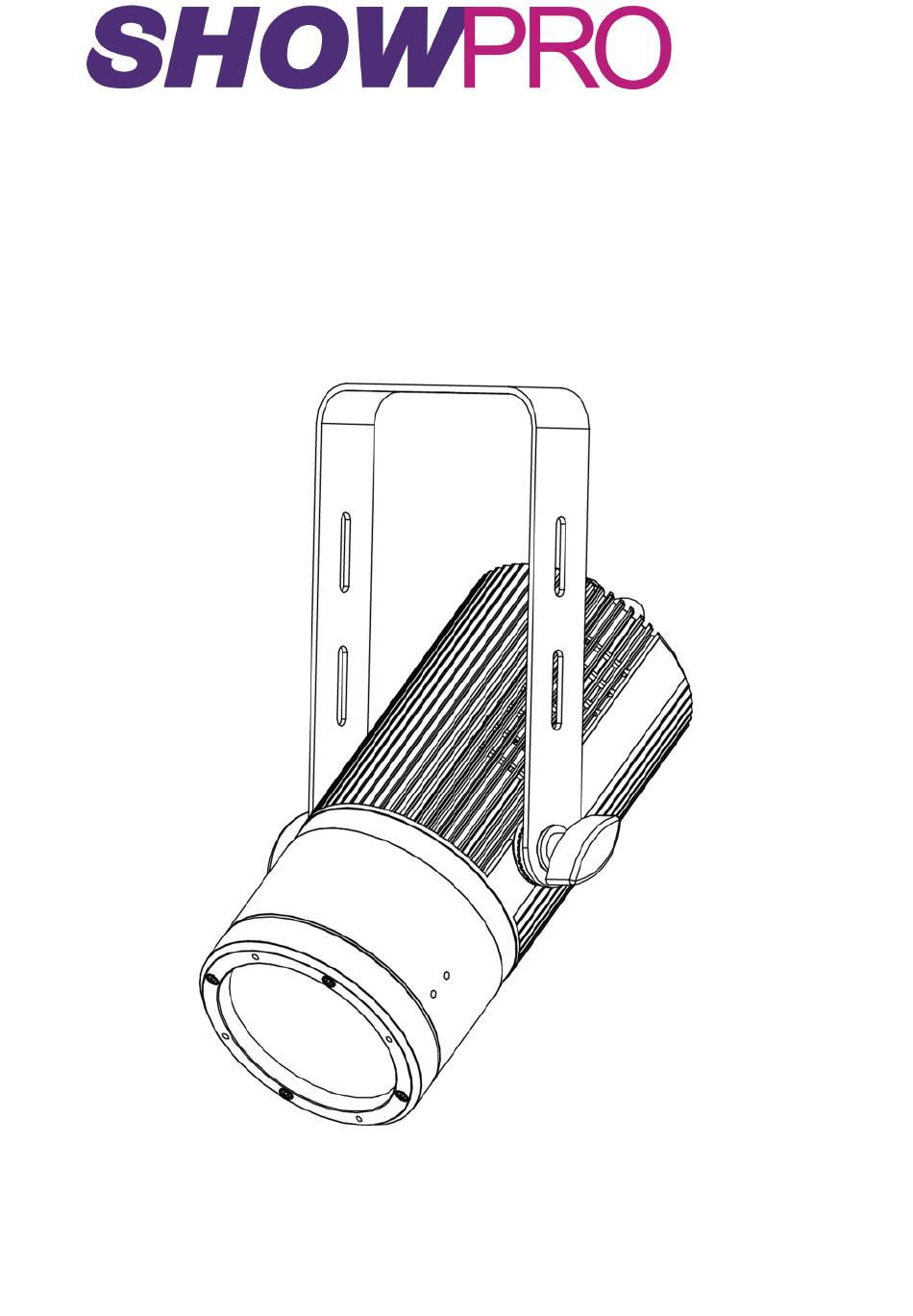

  • Page 1 MoonLite 80 HEX USER MANUAL LEDPAR340...

  • Page 2: Technical Specifications

    1 PRODUCT 1.1 TECHNICAL SPECIFICATIONS LED colors RGBALC 70W LED Power Voltage Range AC100~240V,50/60Hz Protection IP20 Operation Temperature 0℃~45℃ Dimensions 192X115X332mm Weight 3.4kg...

  • Page 3: Safety Notes

    1.2 Safety Notes IMPORTANT  This product must be installed by a qualified professional.  In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes ...

  • Page 4: Installation

    2 INSTALLATION 2.1MOUNTING UPRIGHT  For overhead use, always install a safety cable that can hold at least 10 times the weight of the fixture.  For overhead installation, the fixture must be always secured with a safety wire that can bear at least 10 times the weight of the fixture；Secure the fixture with a safety cable through the rear safety eye as shown.

  • Page 5: Data Network Requirements

    2.3 Data network requirements  Connect the DMX512 controller to the units in series. A DMX 512 data link is required in order to control the fixture via DMX. The fixture has 3/5-pin XLR connectors for DMX data input and output. ...

  • Page 6: Functions And Settings

    3 FUNCTIONS AND SETTINGS 3.1 DISPLAY OPERATION 1. DMX signal 2. Red light 3. Green light 4. W-DMX button 5. Safety cap 6. DMX in 7. DMX out 8. POWER in 3.2 SETTING  Parameter setting，RDM controller settings Address、Channel mode Initial setup ...

  • Page 7: Using A Dmx512 Controller

    4 USING A DMX512 CONTROLLER 4.1 DMX CONTROL HSIC Value Function (7CH) CH.1 0-255 INTENSIYT CH.2 0-255 CH.3 0-255 HUE FINE CH.4 0-255 SATURATION NO FUNCTION 1800K 2200K 2700K 3000K 3200K 4000K CH.5 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K 10000K STROBE...
  • Page 8 201-210 ALL RESET 211-255 RESERVED TOUR TR16 Value Function （8CH） （13CH （20CH） CH.1 CH.1 CH.1 0-255 MASTER DIMMER CH.2 0-255 MASTER DIMMER FINE CH.2 CH.2 CH.3 0-255 CH.4 0-255 RED FINE CH.3 CH.3 CH.5 0-255 GREEN CH.6 0-255 GREEN FINE CH.4 CH.4 CH.7...
  • Page 9 81-90 AUTO 5 91-100 AUTO 6 101-110 AUTO 7 111-120 AUTO 8 121-130 AUTO 9 131-140 AUTO 10 141-150 PROGRAM 1 151-160 PROGRAM 2 161-255 NO FUNCTION CH.11 CH.18 0-255 AUTO SPEED ADJUSTMENT Effect of center STROBE NO FUNCTION 10-99 STROBE FROM SLOD TO FAST (0-25Hz) CH.8 CH.12...
  • Page 10 2700K 3000K 3200K 4000K 4500K 5000K 5600K 6000K 6500K 7000K 8000K 10000K 10000K Effect of center STROBE NO FUNCTION STROBE FROM (SLOD TO FAST ，0-25Hz) 10-99 CH.7 100-109 NO FUNCTION 110-179 LIGHTNING STROBE 180-189 NO FUNCTION 190-255 RANDOM STROBE CONTROL（EXECUTE AFTER 3 SECONDS） 0-010 NO FUNCTION 11-100...
  • Page 11 Annex 1 PRESET COLOR Value Color Names 0-10 NO FUNCTION COLOR 1 11-15 L176 Loving Amber 0.407 0.321 COLOR 2 16-20 Light Salmon 0.499 0.321 COLOR 3 21-25 Scarlet 0.561 0.296 COLOR 4 26-30 L164 Flame Red 0.659 0.302 COLOR 5 31-35 L747 Easy White...
