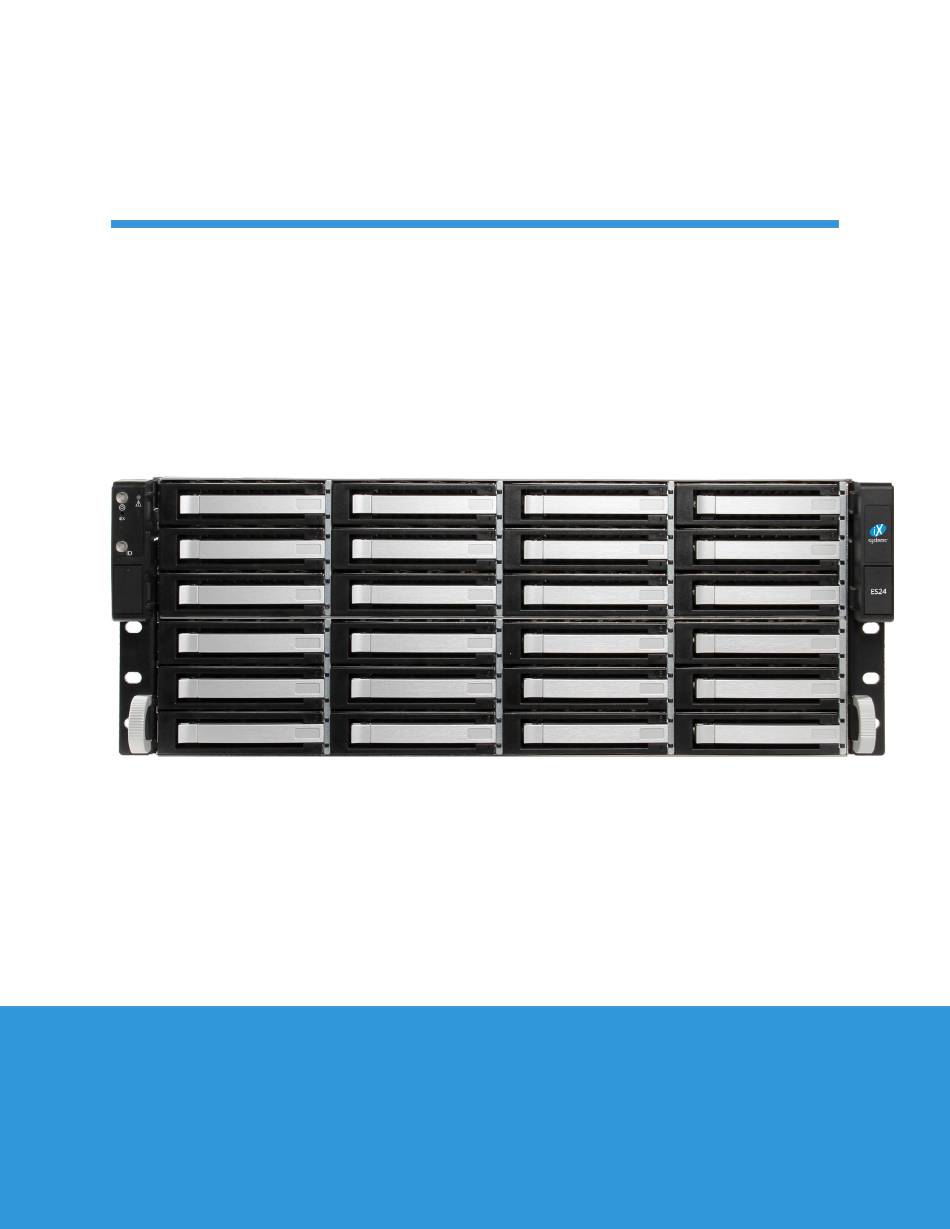

- Page 1 TrueNAS ES24 Expansion Shelf ® Basic Setup Guide Version 1.11...
-
Page 2: Table Of Contents
.............. 5.1 Programming the ES24 Power Loss Mode ... -
Page 3: Unpacking The Unit

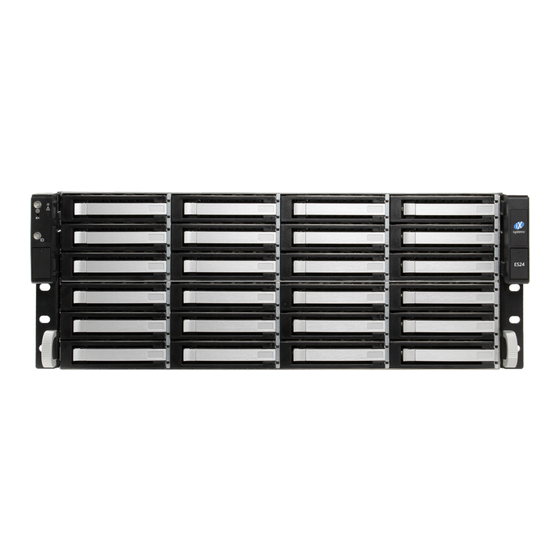

The TrueNAS ES24 is a 4U, 24-bay, SAS3 (12 Gb/s) expansion shelf with dual expansion controllers and redundant power supplies. 1 Unpacking the Unit TrueNAS units are carefully packed and shipped with trusted carriers to arrive in perfect condition. If there is any shipping damage or missing parts, please take photos and contact iXsystems support immediately at support@ixsystems.com, 1-855-GREP4-iX (1-855-473-7449), or 1-408-943-4100. -
Page 4: Ports And Indicators
2 Ports and Indicators The ES24 has front panel buttons for power (1), alarm mute (2), and locate ID (3). There are lights for power (1), lo- cate ID (3), and fault (4). The fault light illuminates during the initial power-on self-test (POST) or when the TrueNAS software generates an alert. -
Page 5: Es24 Rail Kit Assembly
3.3 Mount the Rack Rails A TrueNAS ES24 requires 4U of vertical rack space. The rack rails are installed in the bottom 2U of the total 4U height. The inner rack rail must be unlocked and retracted before installing the rail in the rack. Rotate the release lever on the back of the inner rail clockwise as shown on the arrow label (1). -
Page 6: Mount The Unit In The Rack
3.4 Mount the Unit in the Rack Caution: Two people are required to safely lift the chassis for rack installation or removal. Do not install drives until after the chassis has been installed in the rack, and remove all drives before removing the chassis from the rack. -
Page 7: Install Drive Trays
4 Install Drive Trays TrueNAS appliances only support qualified hard drives and SSDs. Contact the Sales Team if you need more drives or replacements. Adding unqualified drives to the system voids the warranty. Call Support if drives are improperly installed in trays. -
Page 8: Connect Power Cables
The ES24 can be programmed to automatically restart if the power input has been lost and subsequently restored. By default, if the ES24 loses power it does not automatically start when power has been restored. The power button must be pressed to turn the system on. However, the ES24 can be set to automatically restart when power is restored to the system. -
Page 9: Connect Sas Cables
6 Connect SAS Cables Plug the ES24 power cords into power outlets. Wait two minutes for the drives to start. The ES24 is compatible with several TrueNAS systems. Typical SAS cable connections for up to two ES12 expansion shelves on TrueNAS High Availability (HA) systems are shown here. -
Page 10: R-Series
6.2 R-Series 6.2.1 R20 R20 with a single ES24 Expansion Shelf R20 with two ES24 Expansion Shelves Page 8 Support: 1-855-473-7449 or 1-408-943-4100 Email: support@ixsystems.com... -
Page 11: R40
6.2.2 R40 R40 with a single ES24 Expansion Shelf R40 with two ES24 Expansion Shelves Page 9 Support: 1-855-473-7449 or 1-408-943-4100 Email: support@ixsystems.com... -
Page 12: R50
6.2.3 R50 R50 with a single ES24 Expansion Shelf R50 with two ES24 Expansion Shelves Page 10 Support: 1-855-473-7449 or 1-408-943-4100 Email: support@ixsystems.com... -
Page 13: M-Series
6.3 M-Series 6.3.1 M40 M40 with a single ES24 Expansion Shelf M40 with two ES24 Expansion Shelves Page 11 Support: 1-855-473-7449 or 1-408-943-4100 Email: support@ixsystems.com... -
Page 14: M50 And M60
M50 with a single ES24 Expansion Shelf M50/M60 with three ES24 Expansion Shelves. The M50 can support up to 8 total Expansion Shelves with the use of additional SAS cards. The M60 can support up to 12 total Expansion Shelves with the use of additional SAS cards. -
Page 15: Additional Resources
TrueNAS web interface or go directly to: https://www.truenas.com/docs/ Additional hardware guides and articles are in the Documentation Hub’s Hardware section: https://www.truenas.com/docs/hardware/ The TrueNAS Community forums provide opportunities to interact with other TrueNAS users and discuss their con- figurations: https://www.truenas.com/community/ Page 13... -
Page 16: Contacting Ixsystems
8 Contacting iXsystems For assistance, please contact iX Support: Contact Method Contact Options https://support.ixsystems.com Email support@iXsystems.com Telephone Monday-Friday, 6:00AM to 6:00PM Pacific Standard Time: • US-only toll-free: 1-855-473-7449 option 2 • Local and international: 1-408-943-4100 option 2 Telephone Telephone After Hours (24x7 Gold Level Support only): •...
