- Page 1 ® TrueNAS ES60 Expansion Shelf Basic Setup Guide September 2017 Edition...

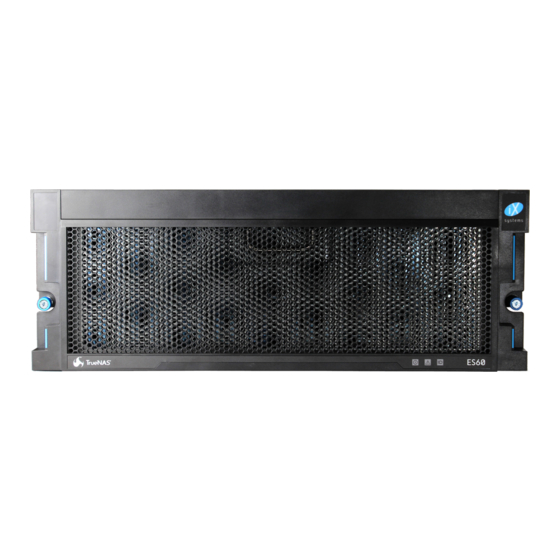

- Page 2 1 ES60 Expansion Shelf ® The TrueNAS ES60 Expansion Shelf is a is a 4U, 60-bay storage expansion unit designed speci cally for use ® with the TrueNAS Z Series Uni ed Storage Array. ® Note: TrueNAS units are carefully packed and shipped with trusted carriers to arrive in perfect condition.
- Page 3 1.9 Install the Cable Management Arm On the rear of the ES60 JBOD, locate the two pin posts on the left side of the expansion shelf. Align the holes on the bracket of the cable management arm with the posts on the chassis. Slide the cable management arm forward and pull the lever on the latch upwards to lock the cable management arm into place.
- Page 4 2 User Guide ® The TrueNAS User Guide with complete con guration instructions is available by clicking in the ® TrueNAS user interface or at https://support.ixsystems.com/truenasguide/truenas.html. 3 Contacting iXsystems For assistance, please contact iX Support: Contact Method Contact Options https://support.ixsystems.com Email support@iXsystems.com...
