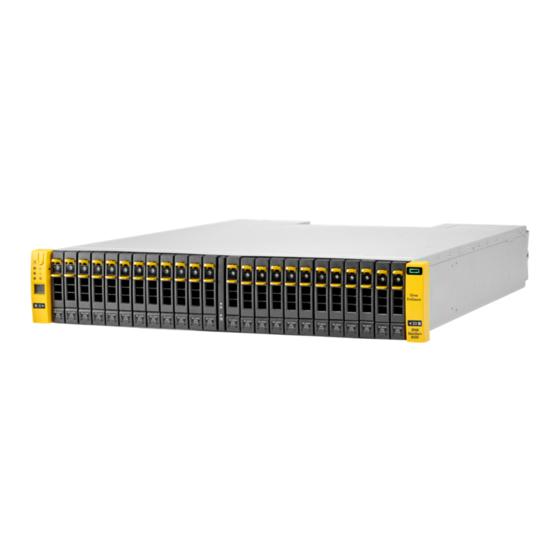

HPE 3PAR StoreServ 8000 Storage
Series Cabling Configuration Guide
Abstract
This guide provides information about connecting data cables for authorized technicians performing installation and maintenance
services on HPE 3PAR StoreServ 8000 Storage Series.
Part Number: QL226-99146a
Published: April 2016
Edition: 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3PAR StoreServ 8000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hewlett Packard Enterprise 3PAR StoreServ 8000 Series

Summary of Contents for Hewlett Packard Enterprise 3PAR StoreServ 8000 Series

  • Page 1 HPE 3PAR StoreServ 8000 Storage Series Cabling Configuration Guide Abstract This guide provides information about connecting data cables for authorized technicians performing installation and maintenance services on HPE 3PAR StoreServ 8000 Storage Series. Part Number: QL226-99146a Published: April 2016 Edition: 2...
  • Page 2 U.S. Government under vendor's standard commercial license. Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard Enterprise has no control over and is not responsible for information outside the Hewlett Packard Enterprise website.

  • Page 3: Table Of Contents

    2 Getting Started....................5 Following Precautions...........................5 Identifying the Components, Enclosure Ports, and Labels..............5 3 Cabling Configurations..................9 Examples of Cabling Configurations.....................9 4 Support and other resources................20 Accessing Hewlett Packard Enterprise Support.................20 Accessing updates..........................20 Websites.............................20 Customer self repair...........................21 Remote support..........................21 Documentation feedback........................21 A Warranty and regulatory information..............22 Warranty information...........................22...

  • Page 4: Introduction

    1 Introduction This guide is available at http://www.hpe.com/support/3PAR8000Cabling. Audience This guide is intended for Hewlett Packard Enterprise field engineers and authorized personnel installing or servicing HPE 3PAR StoreServ systems. Advisories To avoid injury or damage to data and equipment, always observe the notes, cautions, and warnings within this guide.

  • Page 5: Getting Started

    The following diagrams do not present a storage-centric solution with the controller nodes mounted in the center of the rack or other non-Hewlett Packard Enterprise supported component configurations. If the current components situated on the rack do not reflect the layout...
  • Page 6 Figure 1 3PAR StoreServ 8000 Controller Node Enclosure and SAS Ports The 3PAR StoreServ systems support a combination of small form-factor (SFF) and large form-factor (LFF) storage drive enclosures. The (SFF) storage drive enclosure uses 2.5-inch storage drives and the (LFF) enclosure supports 3.5-inch storage drives. Getting Started...
  • Page 7 Figure 2 3PAR Storage Drive Enclosures and SAS Ports Controller Node, Storage Drive Enclosure, and Cable Label Kits All 3PAR StoreServ Storage systems contain special label kits for controller nodes, storage drive enclosures and cables. The labels are essential for identification purposes and part of the cabling process.
  • Page 8 Figure 3 Enclosure Labels Figure 4 Cable Labels NOTE: Apply all the labels on to the appropriate system components and cables before connecting the cables. Getting Started...

  • Page 9: Cabling Configurations

    These diagrams do not present a storage-centric solution with the controller nodes mounted in the center of the rack or other non-Hewlett Packard Enterprise supported component configurations. If the current components situated on the rack do not reflect the layout of the...
  • Page 10 2 Node Array with Large Form Factor (LFF) Drive Enclosures 2 Node 1 Drive Enclosure (1 LFF) – 1 medium (2m) and 1 short (1m) SAS cables 2 Node 2 Drive Enclosures (2 LFF) – 2 medium (2m) and 2 short (1m) SAS cables 2 Node 3 Drive Enclosures (3 LFF) –...
  • Page 11 2 Node 8 Drive Enclosures (2 SFF 6 LFF) – 2 medium (2m) and 14 short (1m) SAS cables 2 Node 8 Drive Enclosures (3 SFF 5 LFF) – 2 medium (2m) and 14 short (1m) SAS cables 2 Node 8 Drive Enclosures (4 SFF 4 LFF) – 2 medium (2m) and 14 short (1m) SAS cables 2 Node 8 Drive Enclosures (5 SFF 3 LFF) –...
  • Page 12 2 Node 12 Drive Enclosures (7 SFF 5 LFF) – 2 medium (2m) and 22 short (1m) SAS cables 2 Node 12 Drive Enclosures (8 SFF 4 LFF) – 2 medium (2m) and 22 short (1m) SAS cables 2 Node 12 Drive Enclosures (9 SFF 3 LFF) – 2 medium (2m) and 22 short (1m) SAS cables 2 Node 12 Drive Enclosures (10 SFF 2 LFF) –...
  • Page 13 2 Node 15 Drive Enclosures (11 SFF 4 LFF) – 2 medium (2m) and 28 short (1m) SAS cables 2 Node 15 Drive Enclosures (12 SFF 3 LFF) – 2 medium (2m) and 28 short (1m) SAS cables 16 Drive Enclosures 2 Node 16 Drive Enclosures (1 SFF 15 LFF) –...
  • Page 14 2 Node 18 Drive Enclosures (8 SFF 10 LFF) – 6 long (6m) and 30 short (1m) SAS cables 2 Node 18 Drive Enclosures (9 SFF 9 LFF) – 6 long (6m) and 30 short (1m) SAS cables 2 Node 18 Drive Enclosures (10 SFF 8 LFF) – 6 long (6m) and 30 short (1m) SAS cables 2 Node 18 Drive Enclosures (11 SFF 7 LFF) –...
  • Page 15 4 Node 30 Drive Enclosures (30 SFF) – 12 long (10m) AOC cables and 48 short (1m) SAS cables 4 Node 32 Drive Enclosures (32 SFF) – 12 long (10m) AOC cables and 52 short (1m) SAS cables 4 Node 34 Drive Enclosures (34 SFF) – 12 long (10m) AOC cables and 56 short (1m) SAS cables 4 Node 36 Drive Enclosures (36 SFF) –...
  • Page 16 14 Drive Enclosures 4 Node 14 Drive Enclosures (2 SFF 12 LFF) – 12 long (6m) and 16 short (1m) SAS cables 4 Node 14 Drive Enclosures (4 SFF 10 LFF) – 12 long (6m) and 16 short (1m) SAS cables 4 Node 14 Drive Enclosures (6 SFF 8 LFF) –...
  • Page 17 4 Node 22 Drive Enclosures (18 SFF 4 LFF) – 12 long (6m) and 32 short (1m) SAS cables 4 Node 22 Drive Enclosures (20 SFF 2 LFF) – 12 long (6m) and 32 short (1m) SAS cables 24 Drive Enclosures 4 Node 24 Drive Enclosures (2 SFF 22 LFF) –...
  • Page 18 30 Drive Enclosures 4 Node 30 Drive Enclosures (2 LFF 28 SFF) – 20 long (6m) and 40 short (1m) SAS cables 4 Node 30 Drive Enclosures (4 LFF 26 SFF) – 20 long (6m) and 40 short (1m) SAS cables 4 Node 30 Drive Enclosures (6 LFF 24 SFF) –...
  • Page 19 4 Node 34 Drive Enclosures (26 SFF 8 LFF) – 16 long (6m) and 52 short (1m) SAS cables 4 Node 34 Drive Enclosures (28 SFF 6 LFF) – 16 long (6m) and 52 short (1m) SAS cables 4 Node 34 Drive Enclosures (30 SFF 4 LFF) – 12 long (6m) and 56 short (1m) SAS cables 4 Node 34 Drive Enclosures (32 SFF 2 LFF) –...

  • Page 20: Support And Other Resources

    4 Support and other resources Accessing Hewlett Packard Enterprise Support For live assistance, go to the Contact Hewlett Packard Enterprise Worldwide website: www.hpe.com/assistance To access documentation and support services, go to the Hewlett Packard Enterprise Support Center website: www.hpe.com/support/hpesc Information to collect...

  • Page 21: Customer Self Repair

    Customer self repair Hewlett Packard Enterprise customer self repair (CSR) programs allow you to repair your product. If a CSR part needs to be replaced, it will be shipped directly to you so that you can install it at your convenience.

  • Page 22: A Warranty And Regulatory Information

    HPE Networking Products www.hpe.com/support/Networking-Warranties Regulatory information Belarus Kazakhstan Russia marking Manufacturer and Local Representative Information Manufacturer information: Hewlett Packard Enterprise Company, 3000 Hanover Street, Palo Alto, CA 94304 U.S. Local representative information Russian: Russia: Belarus: Kazakhstan: Warranty and regulatory information...

  • Page 23: Turkey Rohs Material Content Declaration

    Local representative information Kazakh: Russia: Belarus: Kazakhstan: Manufacturing date: The manufacturing date is defined by the serial number. CCSYWWZZZZ (serial number format for this product) Valid date formats include: YWW, where Y indicates the year counting from within each new decade, with 2000 as the starting point;...
