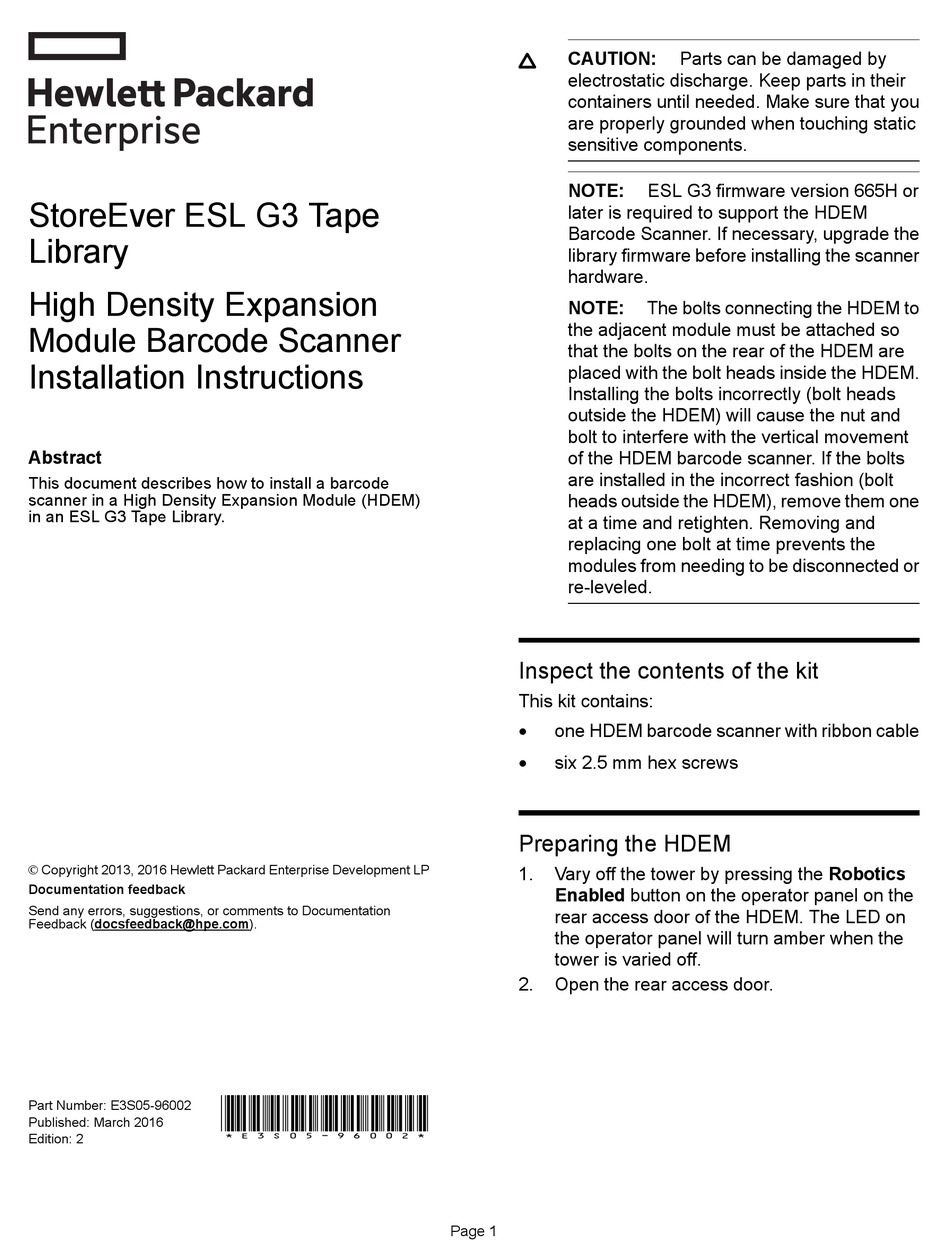

Hewlett Packard Enterprise StoreEver ESL G3 Installation Instructions

StoreEver ESL G3 Tape
Library
High Density Expansion
Module Barcode Scanner

Installation Instructions

Abstract
This document describes how to install a barcode
scanner in a High Density Expansion Module (HDEM)
in an ESL G3 Tape Library.
© Copyright 2013, 2016 Hewlett Packard Enterprise Development LP
Documentation feedback
Send any errors, suggestions, or comments to Documentation
Feedback (docsfeedback@hpe.com).
Part Number: E3S05-96002
Published: March 2016
Edition: 2
*E3S05-96002*
CAUTION:
electrostatic discharge. Keep parts in their
containers until needed. Make sure that you
are properly grounded when touching static
sensitive components.
NOTE:
later is required to support the HDEM
Barcode Scanner. If necessary, upgrade the
library firmware before installing the scanner
hardware.
NOTE:
the adjacent module must be attached so
that the bolts on the rear of the HDEM are
placed with the bolt heads inside the HDEM.
Installing the bolts incorrectly (bolt heads
outside the HDEM) will cause the nut and
bolt to interfere with the vertical movement
of the HDEM barcode scanner. If the bolts
are installed in the incorrect fashion (bolt
heads outside the HDEM), remove them one
at a time and retighten. Removing and
replacing one bolt at time prevents the
modules from needing to be disconnected or
re-leveled.
Inspect the contents of the kit
This kit contains:
one HDEM barcode scanner with ribbon cable
six 2.5 mm hex screws
Preparing the HDEM
1. Vary off the tower by pressing the Robotics
Enabled button on the operator panel on the
rear access door of the HDEM. The LED on
the operator panel will turn amber when the
tower is varied off.
2. Open the rear access door.
Page 1
Parts can be damaged by
ESL G3 firmware version 665H or
The bolts connecting the HDEM to
