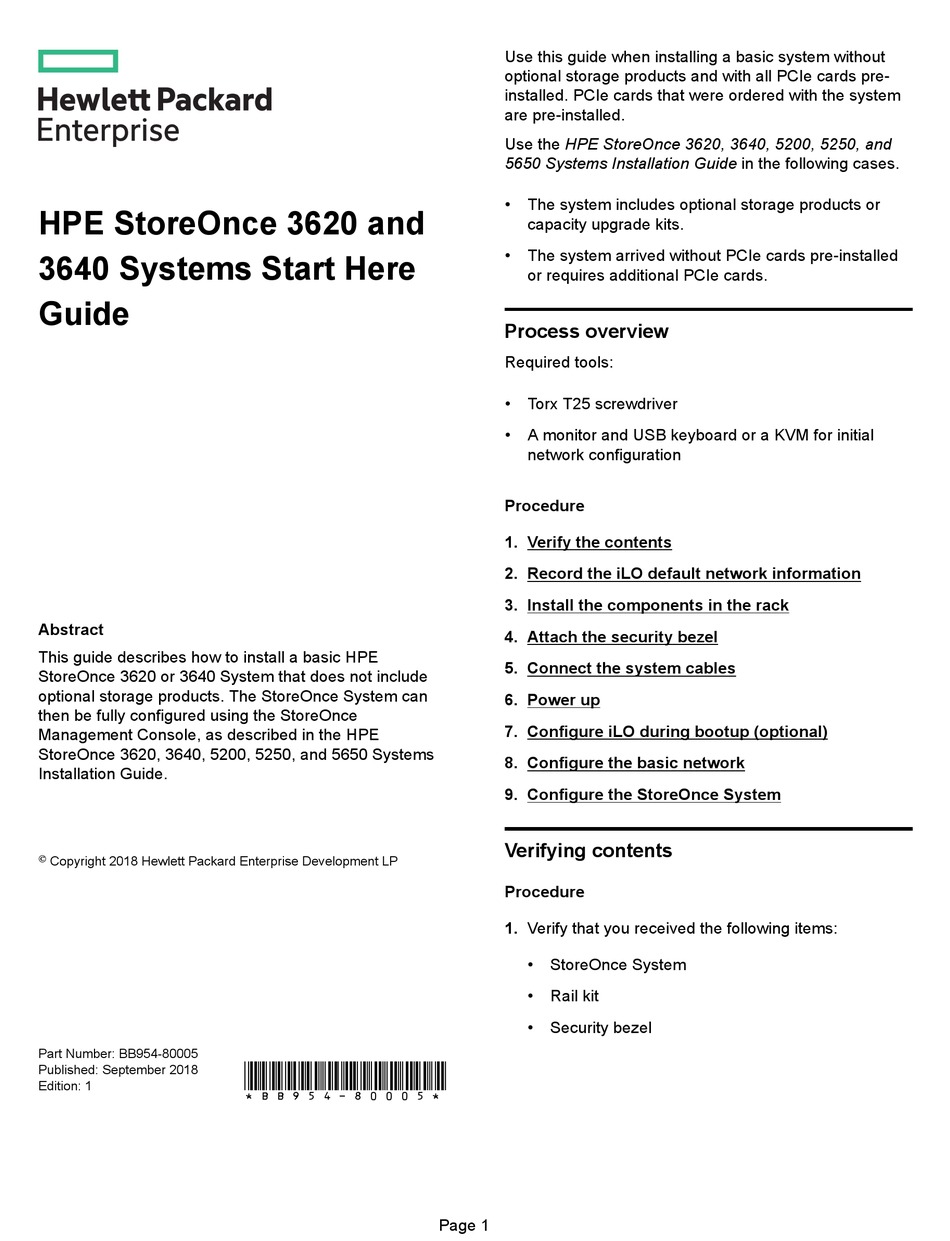

HPE StoreOnce 3620 and
3640 Systems Start Here
Guide
Abstract
This guide describes how to install a basic HPE
StoreOnce 3620 or 3640 System that does not include
optional storage products. The StoreOnce System can
then be fully configured using the StoreOnce
Management Console, as described in the HPE
StoreOnce 3620, 3640, 5200, 5250, and 5650 Systems
Installation Guide.
©
Copyright 2018 Hewlett Packard Enterprise Development LP
Part Number: BB954-80005
Published: September 2018
Edition: 1
*BB954-80005*
Use this guide when installing a basic system without
optional storage products and with all PCIe cards pre-
installed. PCIe cards that were ordered with the system
are pre-installed.
Use the HPE StoreOnce 3620, 3640, 5200, 5250, and
5650 Systems Installation Guide in the following cases.
•
The system includes optional storage products or
capacity upgrade kits.
•
The system arrived without PCIe cards pre-installed
or requires additional PCIe cards.
Process overview
Required tools:
•
Torx T25 screwdriver
•
A monitor and USB keyboard or a KVM for initial
network configuration
1. Verify the contents
2. Record the iLO default network information
3. Install the components in the rack
4. Attach the security bezel
5. Connect the system cables
6. Power up
7. Configure iLO during bootup (optional)
8. Configure the basic network
9. Configure the StoreOnce System
Verifying contents
Procedure
1. Verify that you received the following items:
•
StoreOnce System
•
Rail kit
•
Security bezel
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hewlett Packard Enterprise StoreOnce 3620
Summary of Contents for Hewlett Packard Enterprise StoreOnce 3620
-
Page 1: Process Overview
PCIe cards pre- installed. PCIe cards that were ordered with the system are pre-installed. Use the HPE StoreOnce 3620, 3640, 5200, 5250, and 5650 Systems Installation Guide in the following cases. • The system includes optional storage products or HPE StoreOnce 3620 and capacity upgrade kits. -
Page 2: Powering On The System
Powering on the system Prerequisites All storage enclosures must be installed and cabled before the system is powered on. For instructions about installing optional storage enclosures, see the HPE StoreOnce 3620, 3640, 5200, 5250, and 5650 Systems Installation Guide. Page 2... - Page 3 Procedure Configuring the basic network Power on the StoreOnce System (the power button is on the front of the server). Procedure The power button LED flashes green at the start of the 1. Log in using the default user name and password. power-on sequence and then turns solid green, along Default user name: console with the system health LED.
