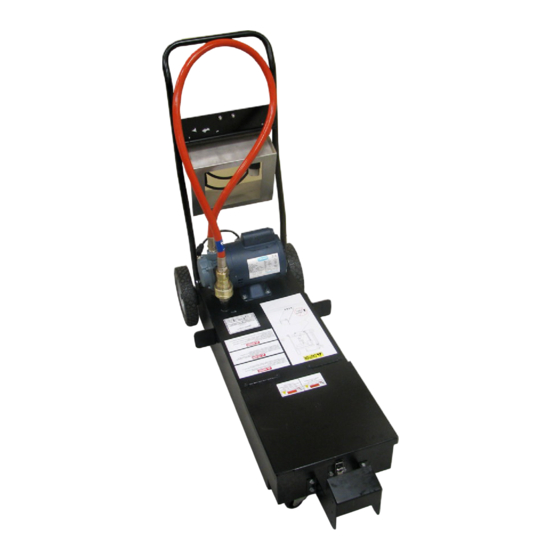

- Page 1 MODEL ODS-450 R E G I S T E R W A R R A N T Y O N L I N E AT W W W. H E N N Y P E N N Y. C O M...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Section Page Section 1. INTRODUCTION ......................1-1 1-1. Introduction ......................1-1 1-2. Features ........................1-1 1-3. Proper Care ......................1-1 1-4. Assistance .......................1-1 1-5. Safety ........................1-2 Section 2. ASSEMBLY ........................2-1 Section 3. OPERATION WITH EVOLUTION ELITE OPEN FRYERS .........3-1 Section 4. OPERATION WITH 500 & 600 PRESSURE FRYERS ..........4-1 Section 5. -
Page 4: Safety
ODS-450 SECTION 1. SAFETY Where information is of particular importance or is safety related, the words NOTICE, CAUTION, or WARNING are used. Their usage is described below: SAFETY ALERT SYMBOL is used with DANGER, WARNING, or CAUTION which indicates a personal injury type hazard. -
Page 5: Section 2. Assembly
ODS-450 SECTION 2. ASSEMBLY USING BOLTS & NUTS USING PIPE THREAD SEALANT, THREAD PROVIDED, ATTACH THE HOSE INTO PUMP AND ATTACH HANDLE TO SHUTTLE. QUICK DISCONNECT TO SHUTTLE HANG THE PRESSURE FRYER “FUNNEL” & POWER CORD ON HANDLE READY FOR USE... -
Page 6: Section 3. Operation With Evolution Elite Open Fryers
ODS-450 SECTION 3. OPERATION WITH EVOLUTION ELITE OPEN FRYERS 1. Open the door, lift-up on the drain pan stop and pull-out the drain pan assembly, using the handle on the drain pan. Figures 1 & 2. 2. Release cover latch, and hinge back cover on oil disposal shuttle. - Page 7 ODS-450 6. With discard shuttle rolled into place, press √ button and display shows “OPEN DRAIN”. Pull-out on drain knob to open drain and display shows “DRAINING”. Oil now drains from the vat into the shuttle. If oil disposal shuttle is not properly in place, “IS DISPOSAL UNIT IN PLACE?”...
-
Page 8: Section 4. Operation With 500 & 600 Pressure Fryers
ODS-450 SECTION 4. OPERATION WITH 500 & 600 PRESSURE FRYERS 1. Move the fryer main power switch to the OFF position. 2. Remove and empty the condensation drain pan. 3. Disconnect the filter union and remove the drain pan from under the frypot. -
Page 9: Section 5. Disposing Of Oil Into Disposal Container
ODS-450 SECTION 5. DISPOSING OF OIL INTO DISPOSAL CONTAINER 1. Remove the oil disposal shuttle from under fryer and Press down to lock replace with the filter pan assembly. 2. Close the cover on shuttle and roll oil disposal shuttle to disposal container. - Page 10 ODS-450 7. Plug the shuttle electrical cord into the receptacle under the disposal container control, and then press & hold switch on container controls to pump oil from shuttle to the container. Figure 5. 8. Once shuttle is empty, release switch and unplug the electrical cord and wrap back onto the hook on the shuttle handle.
-
Page 11: Section 6. Part Information
This section identifies and lists the replaceable parts of the Henny Penny Oil Disposal Shuttle. 6-2. GENUINE PARTS Use only genuine Henny Penny parts in your unit. Using a part of lesser quality or substitute design may result in unit damage or personal injury. - Page 12 ODS-450 33 34...
- Page 13 ODS-450 Item Part Number Number Description 21753 ASSY – FILTER HOSE ODS Β 2 21612 DISCONNECT - FEMALE 69356 PUMP & MOTOR ASSY Β 3 67583 MOTOR, 1/2 HP - 50/60 Hz Β 4 17437 PUMP ASSEMBLY FP02-060 NIPPLE – ¾ CLOSE SS MS01-583 GROMMET –...
- Page 14 ODS-450 FILTER MOTOR AND PUMP Item Part Description Number Assy Β 1 67583 MOTOR, 1/2 HP - 50/60 Hz Α 2 17476 SEAL KIT 17437 PUMP ASSEMBLY SC01-132 SCREW, Pump Cover 17451 COVER, Pump Β 6 17447 ROTOR, Pump Α 7...
- Page 15 ODS-450...
- Page 16 ODS-450...
- Page 17 Henny Penny Corporation P.O.Box 60 Eaton, OH 45320 1-937-456-8400 1-937-456-8402 Fax Toll free in USA *FM05-065-B* 1-800-417-8417 1-800-417-8434 Fax Henny Penny Corp., Eaton, Ohio 45320, Revised 6-25-13 www.hennypenny.com...
