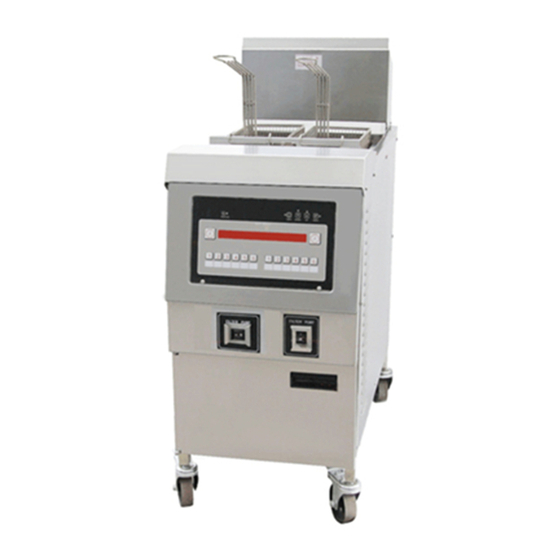

Henny Penny OFE321 Series Instruction Manual

Open fryer
Hide thumbs Also See for OFE321 Series:

Advertisement

Quick Links

Download this manual
Executive standard: IEC60335-2-37.2002
OFE321 (OFG321) Series
Open Fryer
INSTRUCTION MANUAL
Read this manual carefully prior to use.
Technology is subject to change without notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the OFE321 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Henny Penny OFE321 Series

Summary of Contents for Henny Penny OFE321 Series

  • Page 1 Executive standard: IEC60335-2-37.2002 OFE321 (OFG321) Series Open Fryer INSTRUCTION MANUAL Read this manual carefully prior to use. Technology is subject to change without notice.
  • Page 2 Contents 1.Safety precautions for electric and gas open fryer ………………1 2. Main technical parameters…………………………………………7 3. Controlling Panel illustration………………………………………8 4. Controlling panel internal parameter setting……………………11 5. Oil pump disassembly detailed diagram…………………………12 6. Schematic diagram of electric heating elements……………… 14 7. Wiring diagram of electric open fryer……………………………16 8.
  • Page 3 Ⅰ. Electric and gas open fryer safety precautions In order to prevent injuries, electric shock or fire and machine troubles, please observe the following precautions: Before using the machine, please read this instruction manual and kept it well, so that you can refer to it during using or inquiring. Please carefully read and fully understood the machine on the marking symbols and signs and comply with it strictly.
  • Page 4 near the equipment. And power safety wire or fuse also need to be equipped. To ensure use the electric safely and security of the person, the ground terminal must be connected with ground wire which is high performance and met with the safety regulation. The one who ignore this rule, an accident which loss of life will happen.
  • Page 5 9. This equipment should be prevented from rain and moisture 10. It can’t be placed in a corrosive place. And you should prevent it from shaking. Put it inverted is not allowed. 11. You should pour the liquid edible oil into the pot before using or power on. The oil level should be higher than the “MIN”...
  • Page 6 6. The maximum temperature of the equipment is 200℃. When temperature controller is damaged, the oil temperature go up to 230 ℃ , the overtemperature protection device will work now. It will cut the heating power supply automatically. You should reset it by hand. You can only reset it when the oil temperature is go down to 150℃...
  • Page 7 1. Make sure the power installation is normal and check one more time according to the installation notes. 2. When frying food, make sure the oil level in the frying pot is suitable. Keep it between “MIN” and “MAX” level. The minimum oil level should be 2 or 3 mm higher than heating elements.
  • Page 8 （11） Timer start key on the left side, press it one time, the timer is starting working. （12） 1-6 program indicator lamps on the left side, it is light when you choose each program. （13） 1-6 program button on the left side, you can choose each program by pressing each button.
  • Page 9 5. Working process Starting up the machine, information window displays: “OIL FILLED 1-YES”-------- The pot is full of oil or not? Press “1” show it is filled, after press “1”, information window displays: “MELTING 1- EXIT” -------- Melting the oil or not? Quit melting oil by press “1”...
  • Page 10 SETTOC: The temperature output mode (0-3) 0: Electric relay output cycle is 30S 1: Electric relay output cycle is 40S 2: Electric relay output cycle is 50S 3: Electric relay output cycle is 60S the factory valve: 0 SETFILN: oil filtering frequency (0-999) 0: nonuse the factory valve: 10 the factory valve: ℃...
  • Page 12 When you pour into the oil, take notes of the oil level. You’d better not add too much or too little. It should be in the level range showed by Chart(11).
  • Page 13 Heaters assembly diagram(12-13)
  • Page 15 OFE321Electric Open fryer electric connection diagram Ⅲ.OFG321-322 model Gas Open fryer operation methods 1. Gas open fryer combustion controlling system This system adopts the liquefied petroleum gas, natural gas, and artificial gas as heat source, by using the four in one gas control valve (open fryer, thermocouple, electronic lighting and gas volume adjustment) temperature controller and gas solenoid valve.
  • Page 16 combustion controlling system, you can ignite the purpose-made M mould’s furnace end electrically, constant temperature controlled, flameout protection as well as the heat power adjustment. The principle of operation is as following: ignite by hand pressing to the piezoelectric conduction type igniter, which can transmit the instantaneous high pressure to the ignition probe and make it electric discharging by a certain electric space, then light the gas by electric spark and ignite the open fire.
  • Page 17 图 2 chart 2 OFG-322 Diagram When you hear clicking sound, it shows it is ignited and now the open fire should be on fire. Press the button a few minutes, then the open fire should be burning normally. Now the thermocouple on the open fire of the burner will keep burning (If it can’t be lighted for one time, you can ignite it for two or three times.
  • Page 18 The oil drain valve must be turned off when ignition. 1.The temperature will rise steadily when it is burning normally. When it gets to the setting temperature, you can put into the food for frying. The time for frying is depended on the food you fry. One fryer can hold two baskets, so you can fry different food at same time.
  • Page 19 4、OFG321Gas open fryer wiring diagram...
