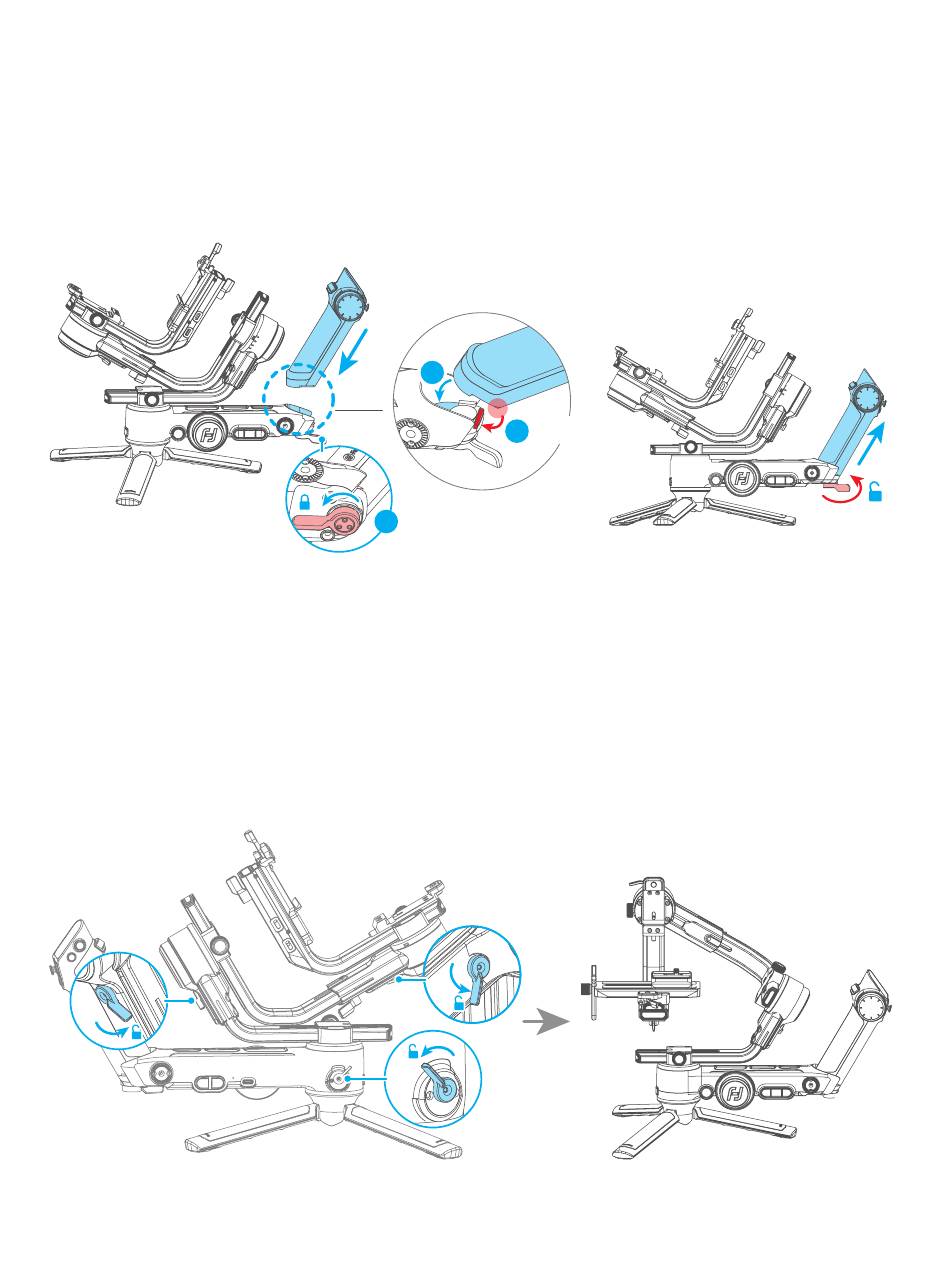

2.3 Install the remote control handle

When install the handle, please wedge in the buckle
from ② , until the handle lock
the locked position to finish the
When detach the handle, please toggle the handle lock lever to the unlocked
position, and pull up the handle.
Mount the remote control handle

2.4 Adjust the gimbal to gimbal balancing position

The gimbal is folded by default, please toggle the tilt lock, roll lock, and pan lock
levers to the unlocked position and adjust the gimbal to
and then toggle the three locks to the locked position.
Gimbal folded position
③ is engaged, then toggle the handle lock lever to
installation.
Attention！
2
Wedge
1
3
- 4 -
① , then push down the handle
Detach the remote control handle
gimbal balancing
Gimbal balancing position
position,
