3. Mounting the Camera

Before mounting the camera, make sure the camera is ready for shooting (Install the
camera lens, and the lens cover should be removed, the memory card and battery
needs to be inserted to the camera, and battery is fully charged) , complete all the
steps which mentioned in chapter "2. Getting started" and the gimbal is adjusted to
gimbal balancing position. Make sure the gimbal is powered off or in sleep mode
before mounting the camera.
3.1 Attach the quick release plate and camera backing
base(Optional)

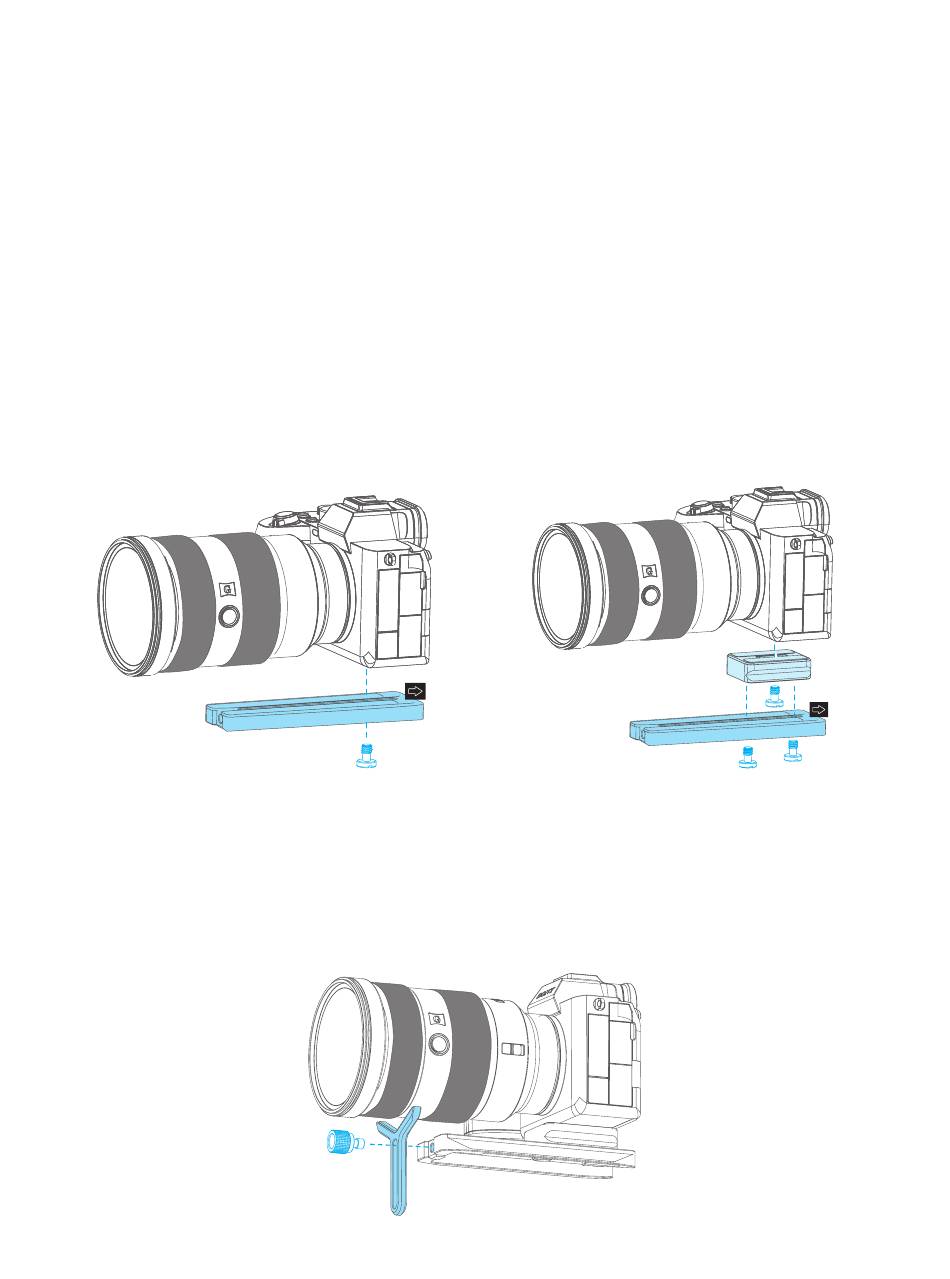

Attach the quick release plate to camera by tightening the screw.
User can choose to attach the camera backing base if needed ( For example, when
using a long or heavy lens). Attach the camera backing base to camera, then attach it
to quick release plate by tightening 2 screws.
Attach with quick release plate only Attach with camera backing base and quick
release plate

3.2 Install lens holder (Optional)

Install the lens holder on the quick release plate if needed, the rubber of the lens
holder must be directly under the lens. It is recommended to use the lens holder
when using a long or heavy lens.
- 5 -
