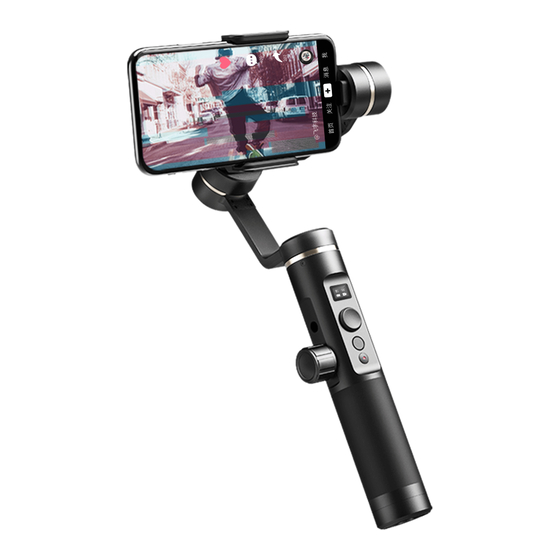

- Page 1 3-Axis Stabilized Handheld Gimbal for Smartphone Instructions Guilin Feiyu Technology Incorporated Company U s e r M a n u a l V 1 . 1...
-
Page 2: Table Of Contents
Catalogue www.feiyu-tech.com 1. SPG 2 Overview 2. Quick Start Guide 3. Charging 4. Function operation Modes Introduction of Display Joystick - operation Function Button - operation Bluetooth shutter operation Setting Button - operation Swith Smartphone Modes Volume adjustment Setting Button - operation... -
Page 3: Spg 2 Overview
1. SPG 2 Overview Micro USB Knob Ring Port Tilt Axis Cross Arm Roll Axis Smartphone Holder Smartphone Holder Vertical Arm Vertical Arm Pan Axis Pan Axis Horizontal Adjustment Display Button Setting Button Joystick 1/4-20 Thread Mount Trigger Button Audio Jack... - Page 4 Introduction of Display and Buttons Display Joystick Main interface of the display screen Bluetooth Modes Left Right Audio connection Shooting App connection mode Down Battery Level Function Button Shutter Button Refer to Page 7 Refer to Page 7 Long press Power on / Power off...
-
Page 5: Quick Start Guide
2. Quick Start Guide Install Battery Put the Smartphone on Remove the bottom cap, insert a 26650 It’ s recommended to remove your smartphone protective case. battery and then tighten the cap. Type 26650 Place smartphone in holder so that the phone Battery Capacity 5000mAh is snug against the back of the holder. - Page 6 Set the horizontal shooting/ vertical shooting of mobile phone Support clockwise / counterclockwise rotation Pull the mobile phone fixture to switch between horizontal and vertical shooting, as shown in below picture: 90° 90° 90° 90° Power on / off (1) Please mount the smartphone before powering on the gimbal. NOTE (2) When the battery is low, please charge the gimbal.
-
Page 7: Charging
3. Charging Charging the Gimbal *Please fully charge the battery before power on the gimbal for the first time. Charging with Micro USB cable as shown below. Micro Port USB Port Micro USB Cable Micro USB Port (Equipped by user) Output: 5V / 2A Charging the Smartphone Use the mobile phone transfer charging cable (self-provided) to charge the mobile phone, and... -
Page 8: Function Operation
4. Operation Modes Panning Mode （Default mode） The roll and tilt direction are fixed, and the smartphone moves according to the left-right movements of the user's hand. Follow Mode The roll direction is fixed, and the smartphone moves according to the left-right movements, up-down movements of the user's hand. -
Page 9: Joystick - Operation
Please refer to the chapter "Gimbal Initialization" in page 12 Shutter Button-operation When SPG 2 is connected to the mobile phone via Feiyu ON App, single tap the shutter button to control the phone to take photos, double tap it to switch between the front and the rear lens of the camera, press and hold it to control the video recording. -
Page 10: Setting Button - Operation
Setting Button - operation When SPG 2 is connected to the mobile phone via Feiyu ON App, the setting button can switch the phone shooting mode, and the phone volume can be adjusted after connecting to the phone audio Bluetooth. -
Page 11: Trigger Button - Operation
Trigger Button - operation Press and hold the trigger button in the panning follow, follow mode to enter the fast follow mode, and then Press and hold Fast follow mode release it to return to the modebefore entering the fast follow mode Trigger Button... -
Page 12: App - Download And Connecting
App - Download and Connecting Download and Install Feiyu ON App Please download Feiyu ON at your smartphone app store or can the QR code below. * Requires iOS 9.0 or later, Android 6.0 or later. iOS Version Android Version Or search and download the "Feiyu ON"... -
Page 13: Advanced Operation
5. Advanced Operation Manual Lock Camera can be manually positioned while in panning mode , follow mode or lock mode. Both the pan axis and tilt axis can be manually set up. Manually move camera to desired position,and hold for half a second. -
Page 14: Firmware Upgrade
Start updating Feiyu ON Mobile phone audio connection Turn on the phone Bluetooth and connect to FY_SPG2AUDID_XX, after the connection is successful, the phone audio can be input or output through the audio jack of SPG 2. Gimbal Initialization Display Initing... -
Page 15: Vertical Shooting
Vertical Shooting Press and hold the trigger button in the horizontal shooting mode and then single click the function button to switch to the vertical shooting mode. Double click the trigger button to exit the vertical shooting and restore to the horizontal shooting mode. -
Page 16: Parameters
Open the Feiyu ON App, after the connection is successful, click the volume icon at the top right corner of the interface, select “Bluetooth Earphone”, blow or talk to the sound hole of the earphone, and the icon has sound waves, which indicates the reception is OK. Press and hold the shutter button for about 1 second to start video recording. - Page 17 6. Specifications 100mm 116mm 69mm 95mm 100mm 297mm 181mm 44mm 35mm 50mm Product Name SPG2 3-Axis Stabilized Handheld Gimbal for Smartphone Max. Tilting Range 320° Max. Rolling Range 320° Max. Panning Range 360° Tilting Speed 2°/s 75°/s Panning Speed 3°/s 150°/s Hours Operation Time...
- Page 18 Guilin Feiyu Technology Incorporated Company +86(0)773 2320865 Due to software and hardware improvements, your actual product might differ from the descriptions and pictures in this user manual. You can get the latest user manual from the official website. For more information, please visit our official website D I S C L A I M E R Prohibit any user for any illegal purpose.
